20109 Blank Paper Feed: 1 Sheet Duplex

Program No.

Pattern Name

Specifications

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20109

Blank Paper Feed: 1 Sheet Duplex

  • Pattern outline: One blank sheet is passed through the Duplex.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

  • Ink smear 3 (roller mark smudges made by serrated roller and paper feed roller)

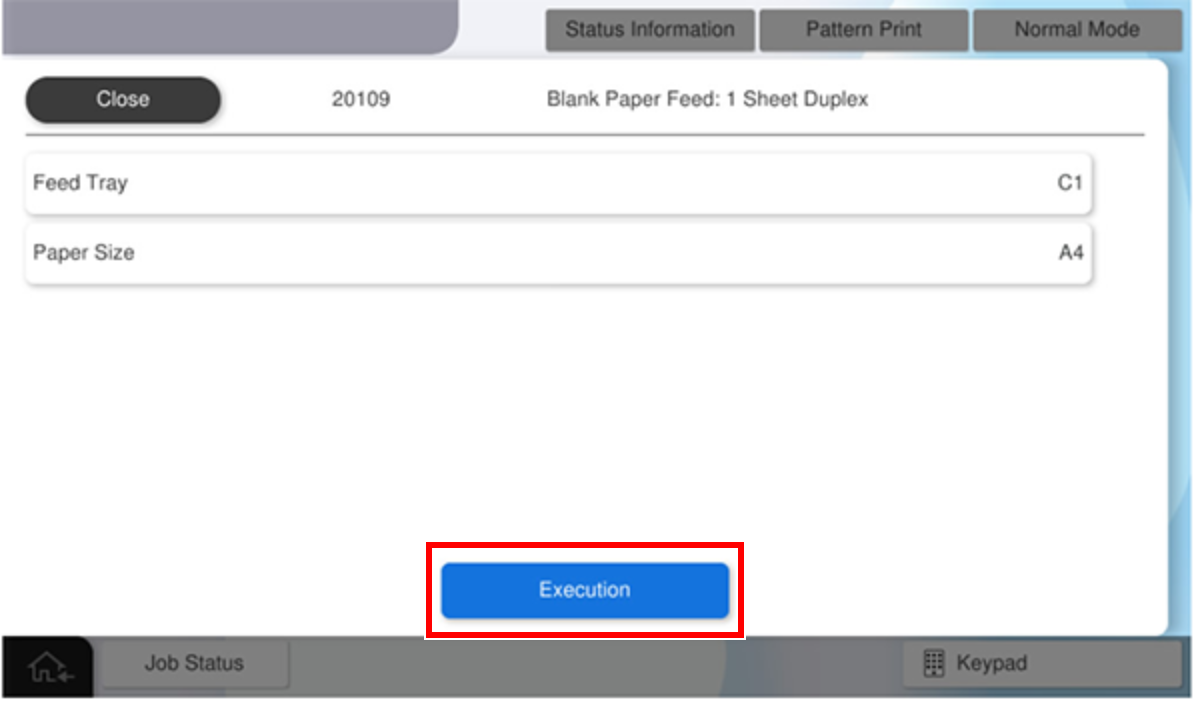

  1. Start service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [Blank Paper Feed: 1 Sheet Duplex].
  5. press each setting item button to make print settings.


    the selectable items are as follows.

    program no. pattern name setting items choice
    20109 blank paper feed: 1 sheet duplex feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
  6. Press [Execution].
