Shutter Release Solenoid

  1. Remove the C1 cassette (A).
  2. Open the Front Cover (A).
  3. Remove the Maintenance Box (A).
  4. Remove the 7 screws and remove the Front Inner Cover (A).

    • : 3x8D
    • : 3x8D/BK
    Assembly / 組み立て

    Insert the protrusion (A) of the Front Inner Cover into the hole (B) of the main unit and install.
    Note / 補足

    If the wireless LAN unit (A) is installed, remove it.

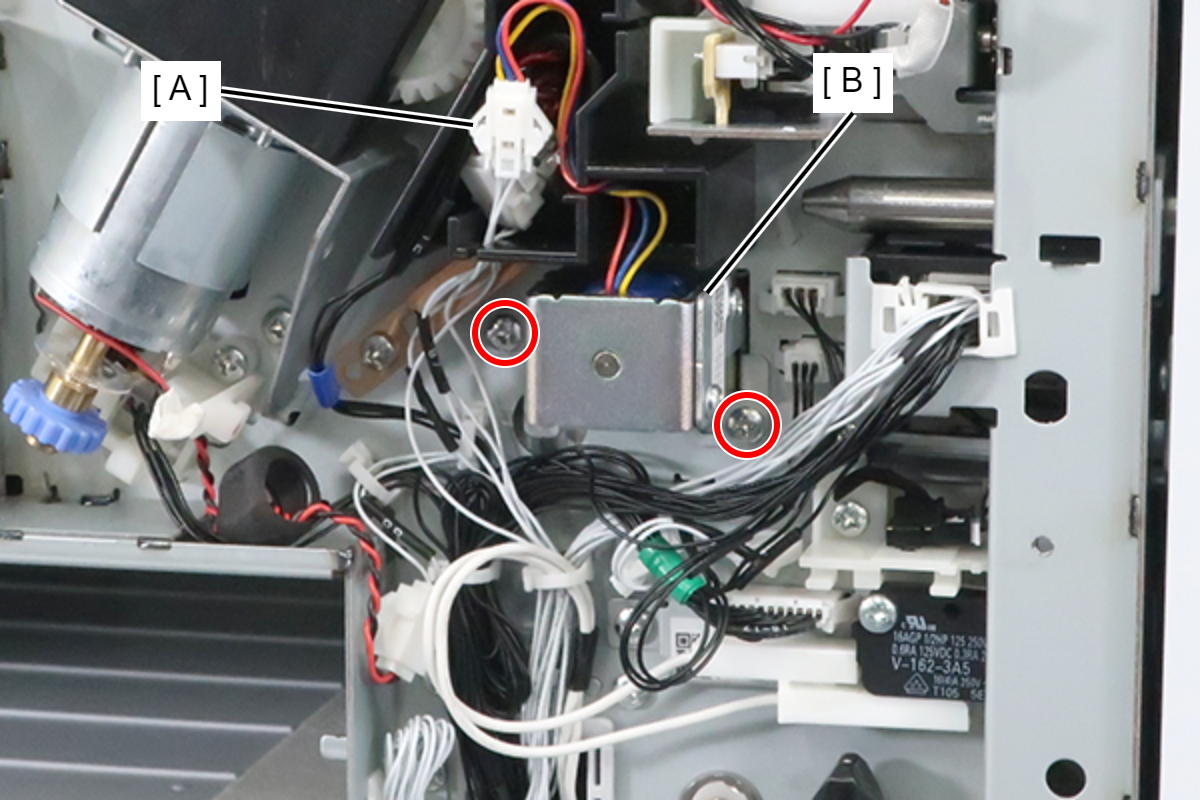

  5. Remove the cable from the relay connector (A), remove the 2 screws, and remove the Shutter Release Solenoid (B).

    • : 3x8D
    Assembly / 組み立て

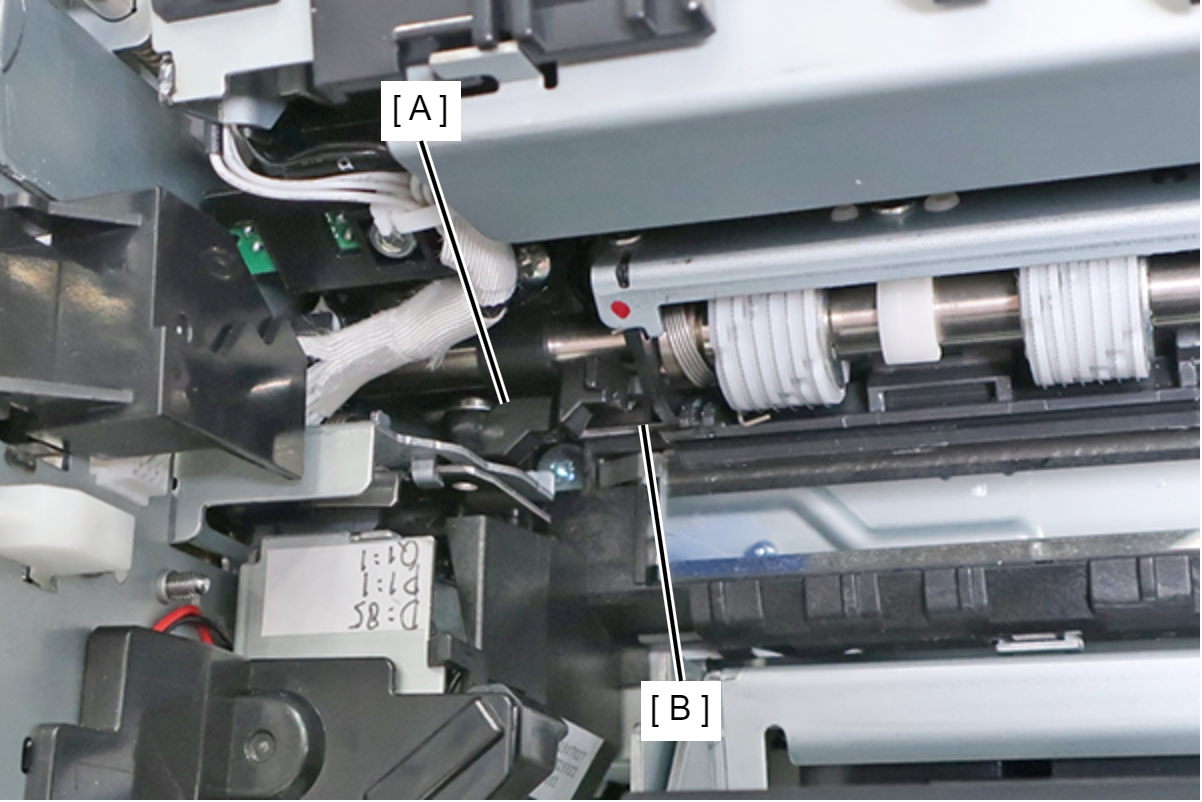

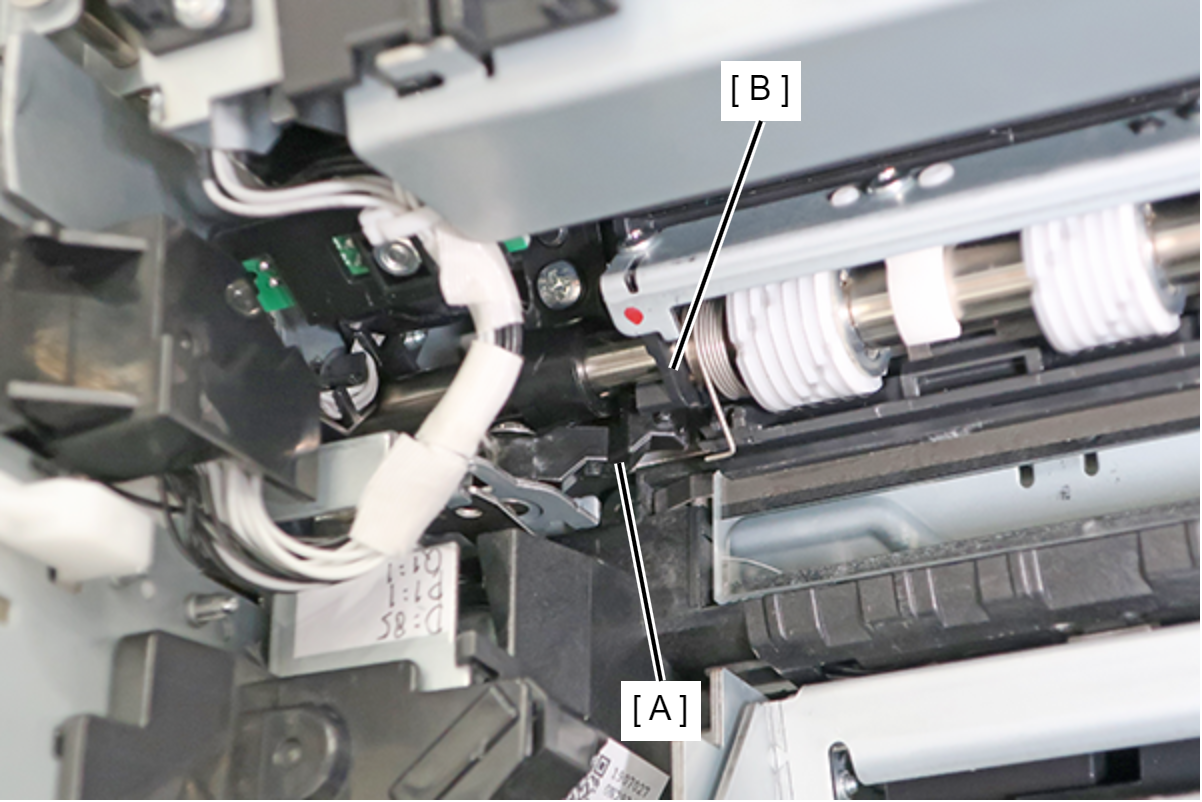

    Install the Shutter Release Solenoid so that its lever (A) is closer to you than the lever (B) of Resit Roller Assy.

    OK

    NG
