SCN Board Cooling Fan - After replacement
- Turn the power ON.

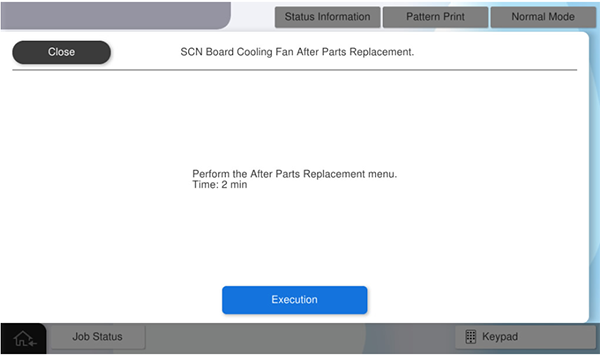

- Press [Execution].

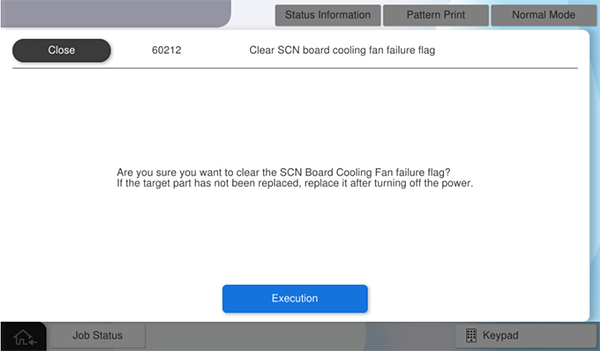

- Press [Execution] to clear the flag.

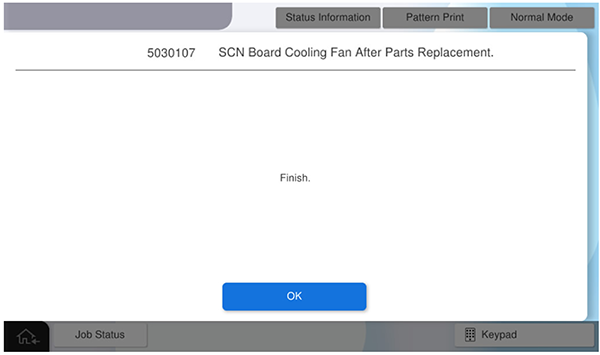

- Press [OK] to complete the menu.
