# 110401 Automatic Release

Overview

Change the position of the cap unit so that the cap transport parts are not locked.

Check Point / チェックポイント

Execute this menu only when the cap transport parts are locked. If executed in any other case, a fatal error may occur.

Step

1. Start the service support mode.

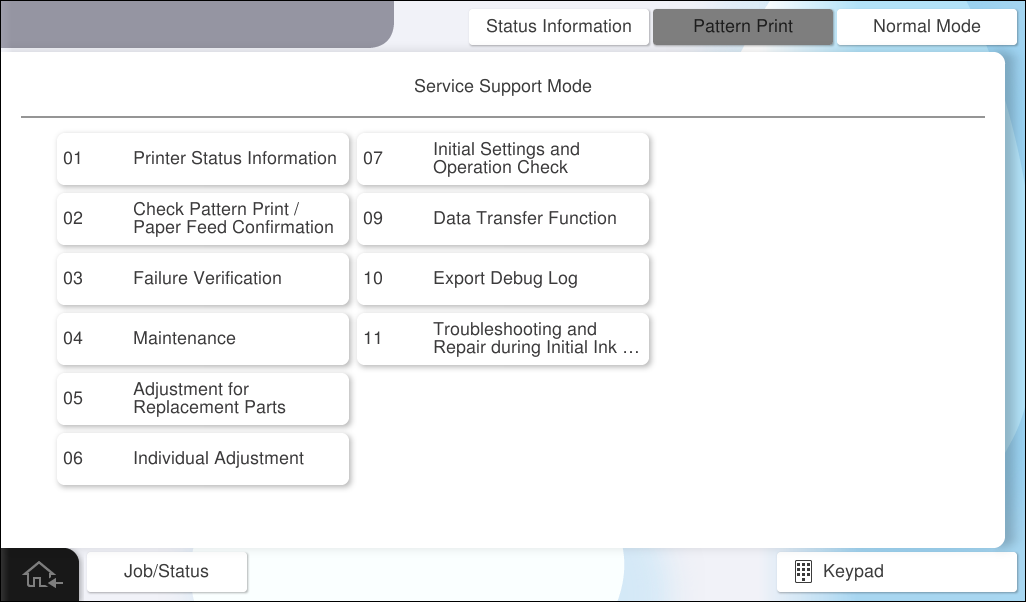

2. Select [11 Troubleshooting and Repair during Initial Ink Charge].

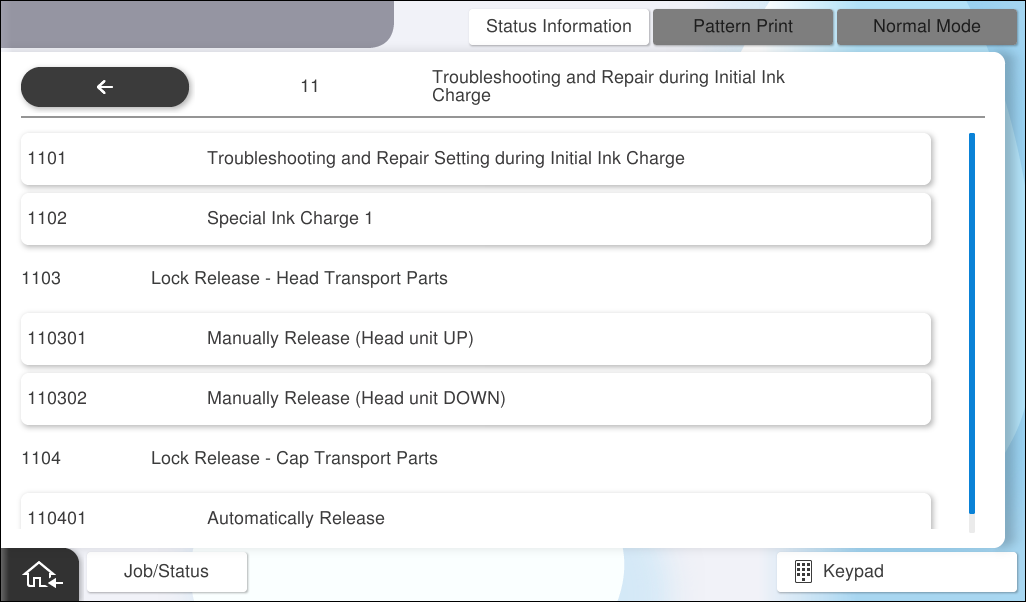

3. Select [110401Automatic Release].

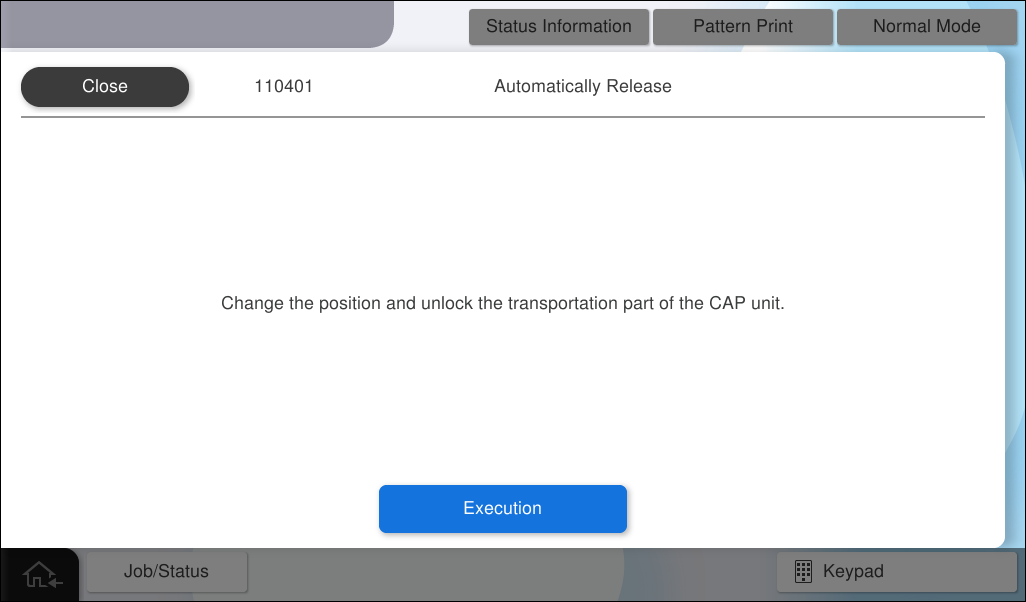

4. Press [Execution].

5. Press [OK].


6. Turn off the power and try to remove the cap transport parts.


   If the lock state cannot be removed, refer to “Head and cap transport parts cannot come off”.

   Note / 補足

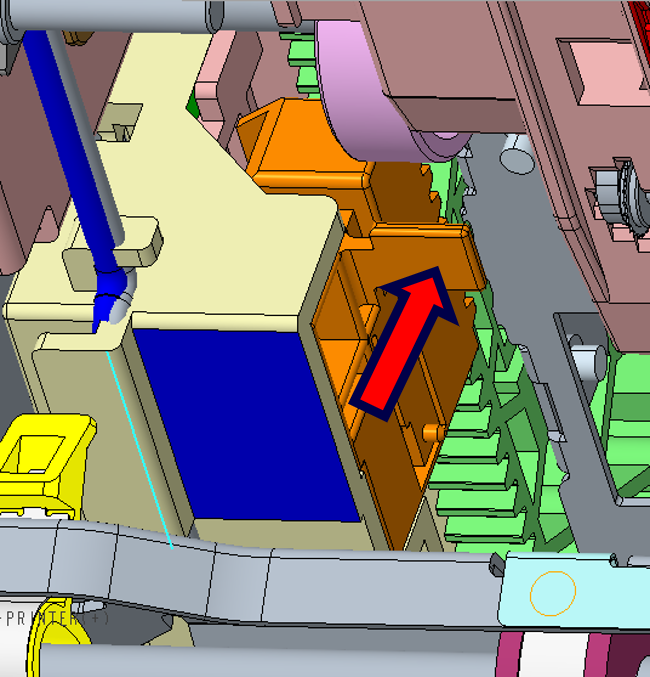

   Cap transport parts Open the right door unit and belt unit, and push the handle of the transport parts to the rear.
