20108 Blank Paper Feed: 10 Sheet Duplex

Program No.

Pattern Name

Specifications

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20108

Blank Paper Feed: 10 Sheet Duplex

  • Pattern outline: 10 blank sheets are passed through the duplex path.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 10

Blank paper, Simplex, 10 sheets

  • Ink smear 3 (roller mark smudges made by serrated roller and paper feed roller)
  1. Start service support mode.

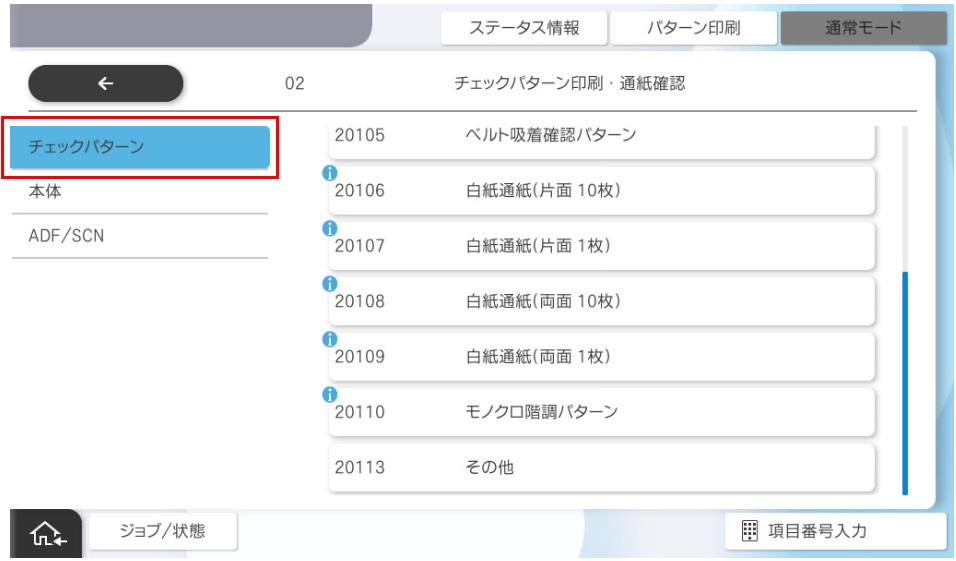

  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [20108 Blank Paper Feed: 10 Sheet Duplex].

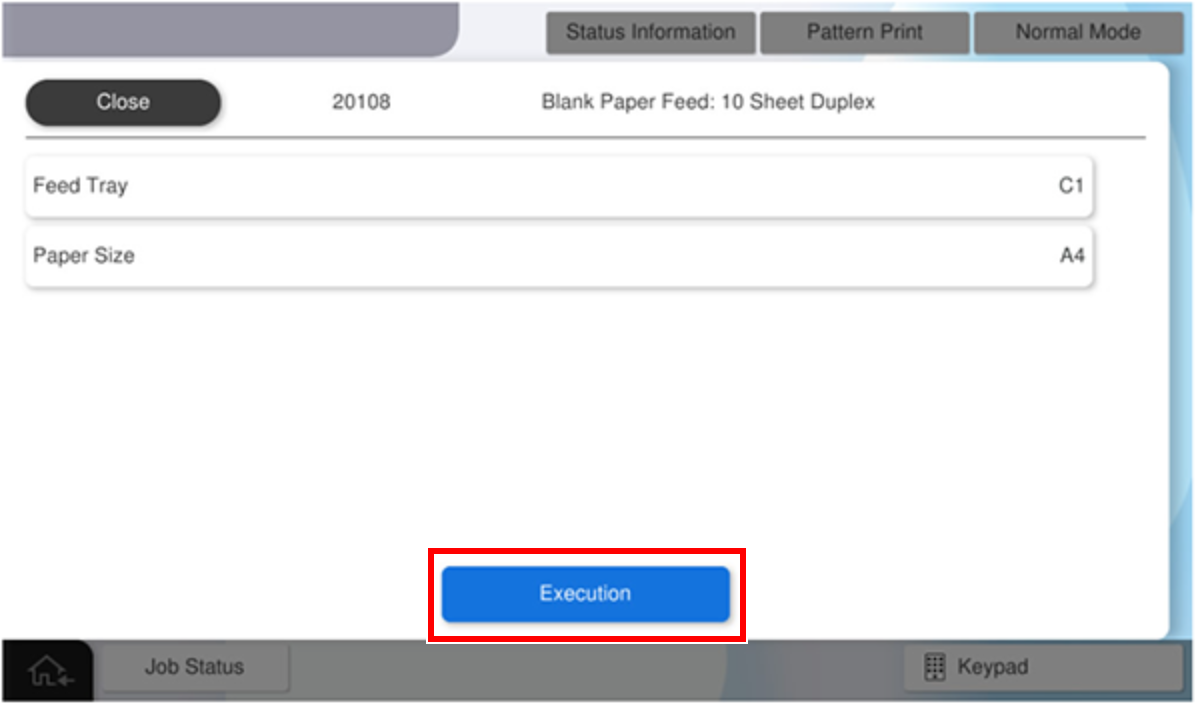

  5. Press each setting item button to make print settings.

  6. the selectable items are as follows.

    setting items choice
    feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
  7. Press [Execution].
