# C2 Liftup Motor

1. Remove the C2 Additional Cassette Unit from the Main Unit.
   Additional Cassette Unit Installation
2. Remove the 4 screws fixing the C2 Additional Rear Cover (A).


   • : 3x8D
3. While pulling the C2 Additional Rear Cover (A) out in the direction of the red arrow, rotate it in the direction of the blue arrow to disengage the 3 hooks, then remove the C2 Additional Rear Cover.

4. Remove the cable from the connector (A), remove the 2 screws, and remove the C2 Additional Connector Assy (B).


   • : 3x8D
5. Remove 3 screws and remove the C2 Liftup Motor (A).


   • : 3x8D

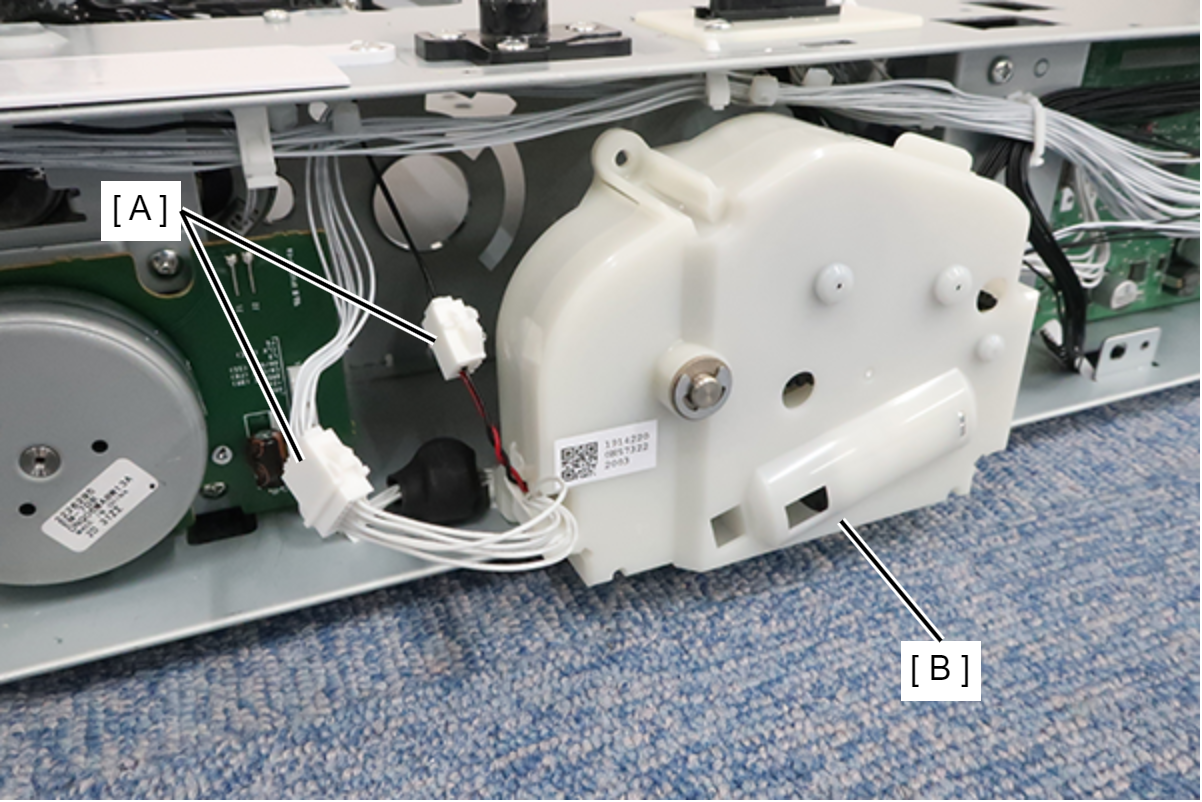

6. Disconnect the cable from the 2 relay connectors (A) and remove the C2 Liftup Motor (B).
