MP Pickup Roller
 Check Point / チェックポイント |
When replacing this part, you need to run the menu from the service support mode before replacing it. |
- open the Paper Tray (a).

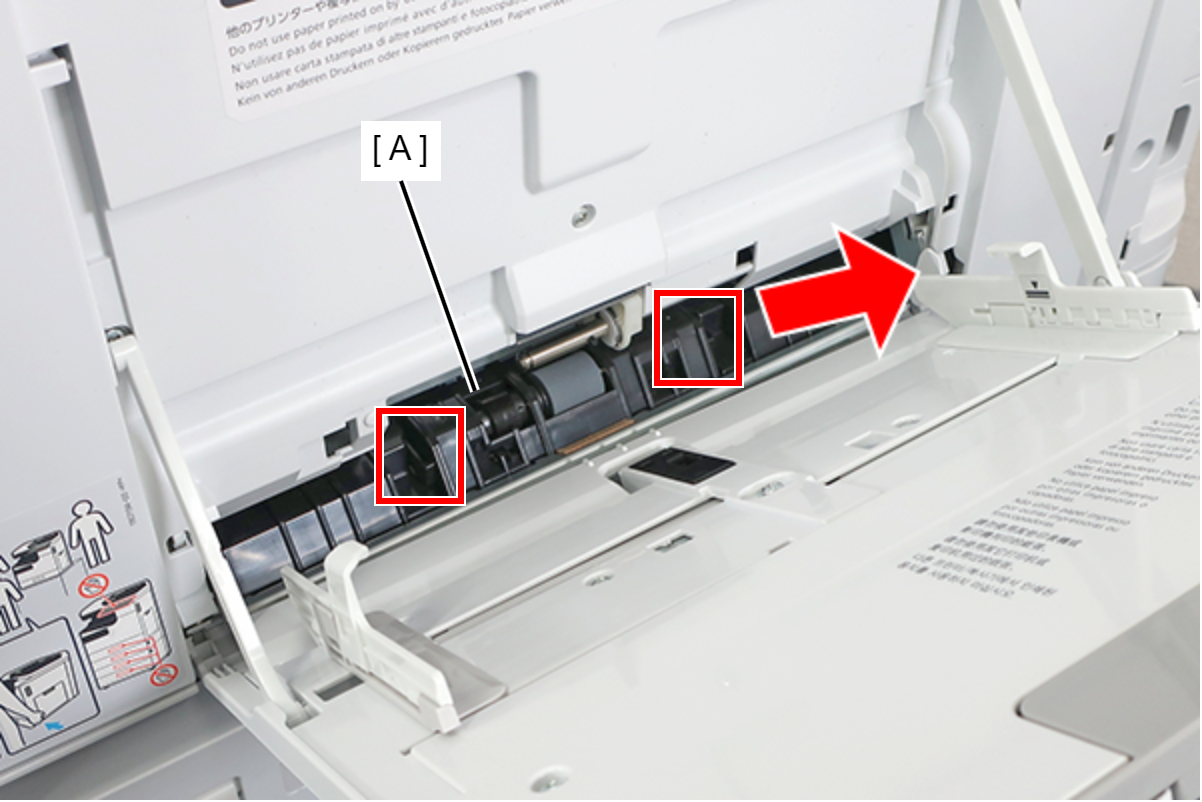

- Release the hook and remove the MP Retard Roller Cover (A).
- Release the hook and remove the MP Retard Roller (A).

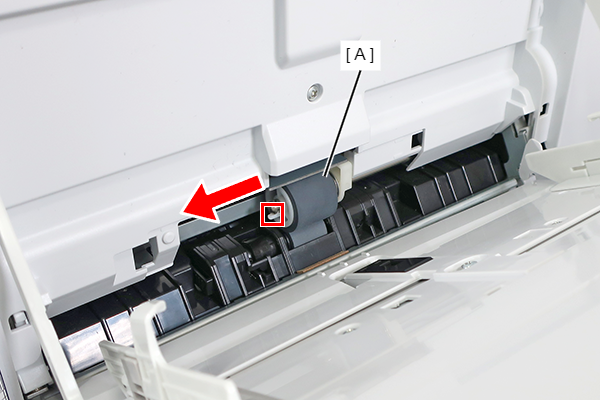

- Release the hook and remove the MP Pickup Roller (A).
| Check Point / チェックポイント |
After replacing this part, you need to run the menu from the service support mode. (If you ran the Before-replacement menu before replacing the part, it will start automatically when you turn the power on.) |
