20110 Special Gradation Pattern

Program No.

Pattern Name

Specifications

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20110

Special Gradation Pattern

  • Dark lines

  • White lines
  1. Start service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [Special Gradation Pattern].
  5. press each setting item button to make print settings.


    the selectable items are as follows.

    program no. pattern name setting items choice
    20110 special gradation pattern feed tray Paper Tray
    available paper sizes a4, letter
    printing speed full(plain), half(plain), low(plain), low (matte)

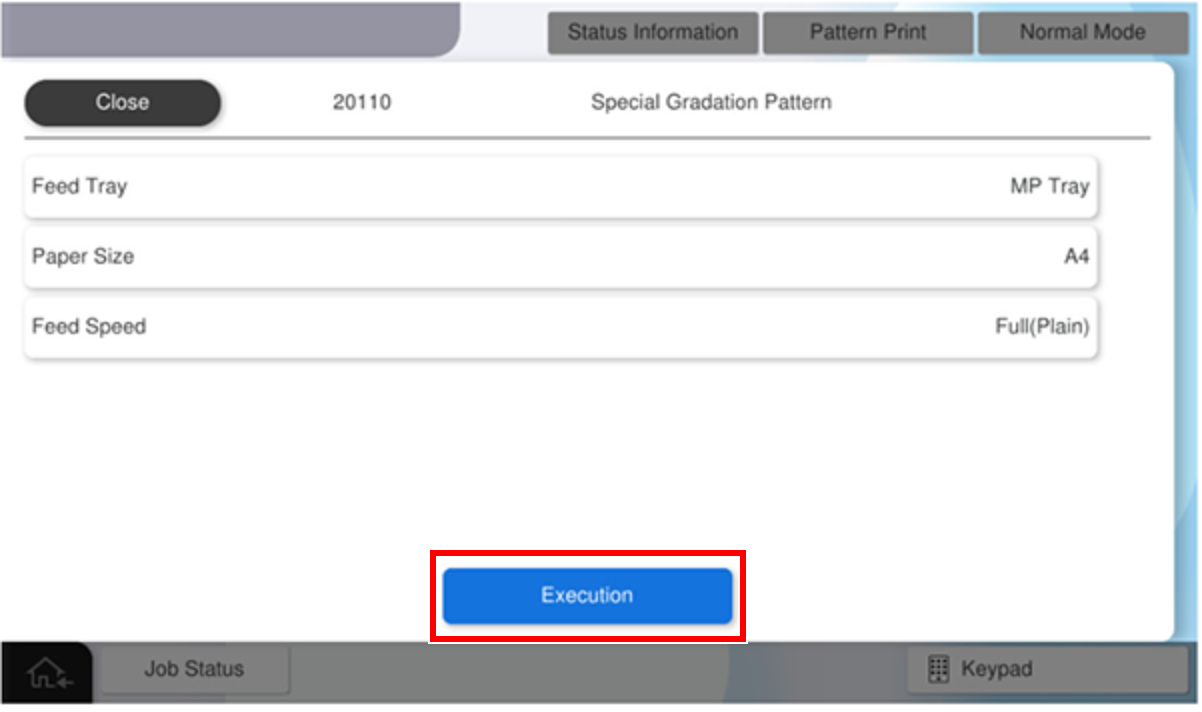

  6. Press [Execution].
