Installation Environment

When installing, confirm that the carry-in route and the installation site are broad enough and strong enough to move and install the product.

Carrying-in space

The carry-in route must have at least the following width / height.

important / 重要
  • If the installation location or the moving route is easily damaged, protect the floor surface as necessary when moving.
Note / 補足
  • The dimensions of the printer, including optional products, are the maximum dimensions both when packed and when unpacked.

Items

Packed (Printer)

Unpacked (Printer)

External dimensions

Width

665 mm

465 mm

Depth

621 mm

517 mm

Height

682 mm
  • Main Unit:570 mm
  • When 1st additional cassette is installed: 670 mm
  • When 1st additional cassette, 2nd additional cassette are installed: 938 mm


Installation space/weight
Note / 補足
  • During installation work, in addition to the occupied dimensions of the product shown below, secure the work space for the operator.

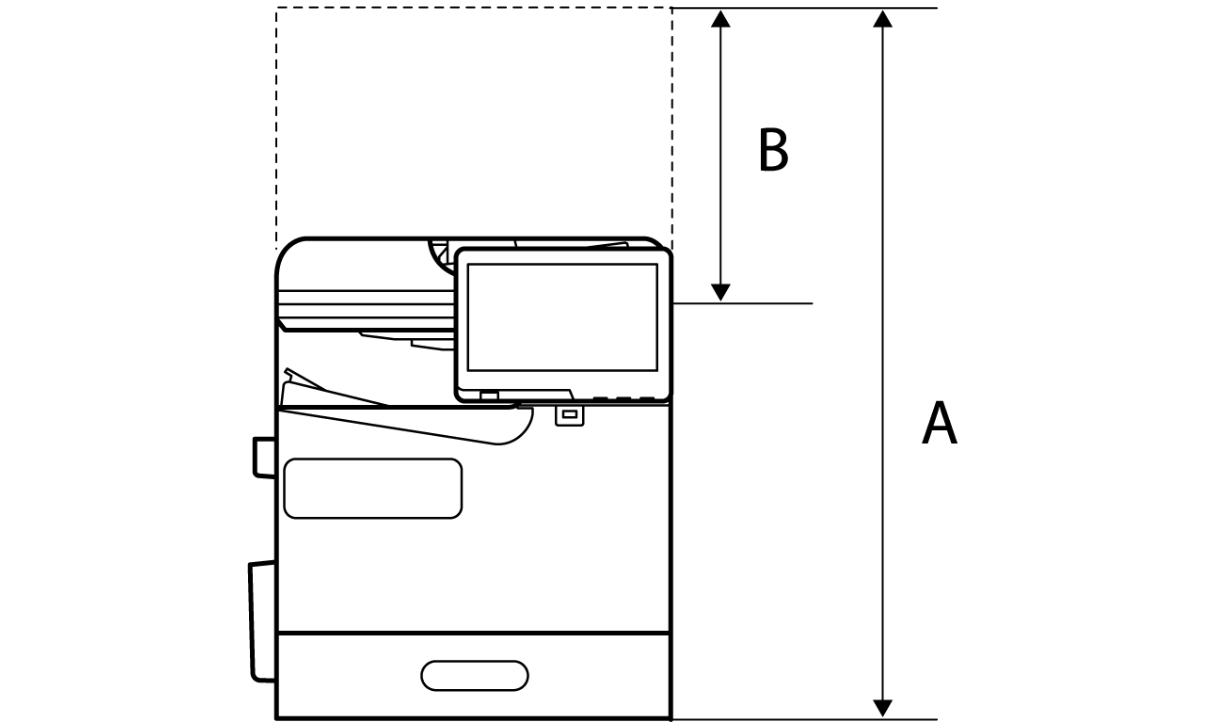

Main Unit

A 800 mm
B 310 mm
Weight 56kg

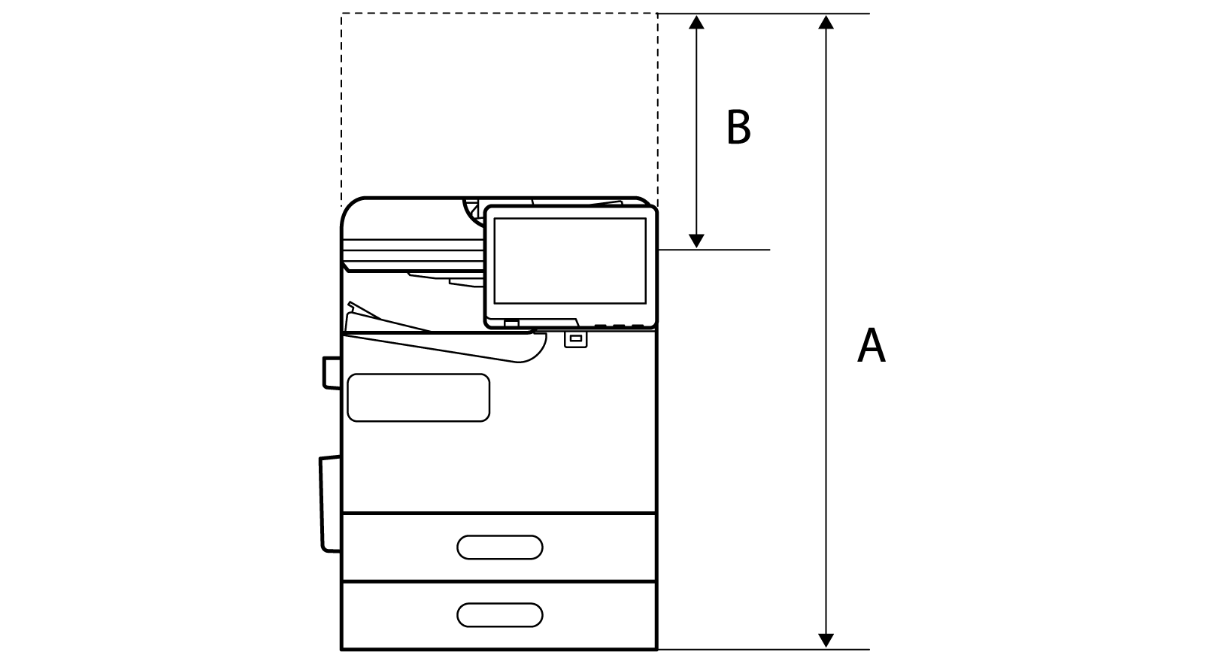

Printer main unit + 1st additional cassette

A 900 mm
B 310 mm
Weight 64.8kg

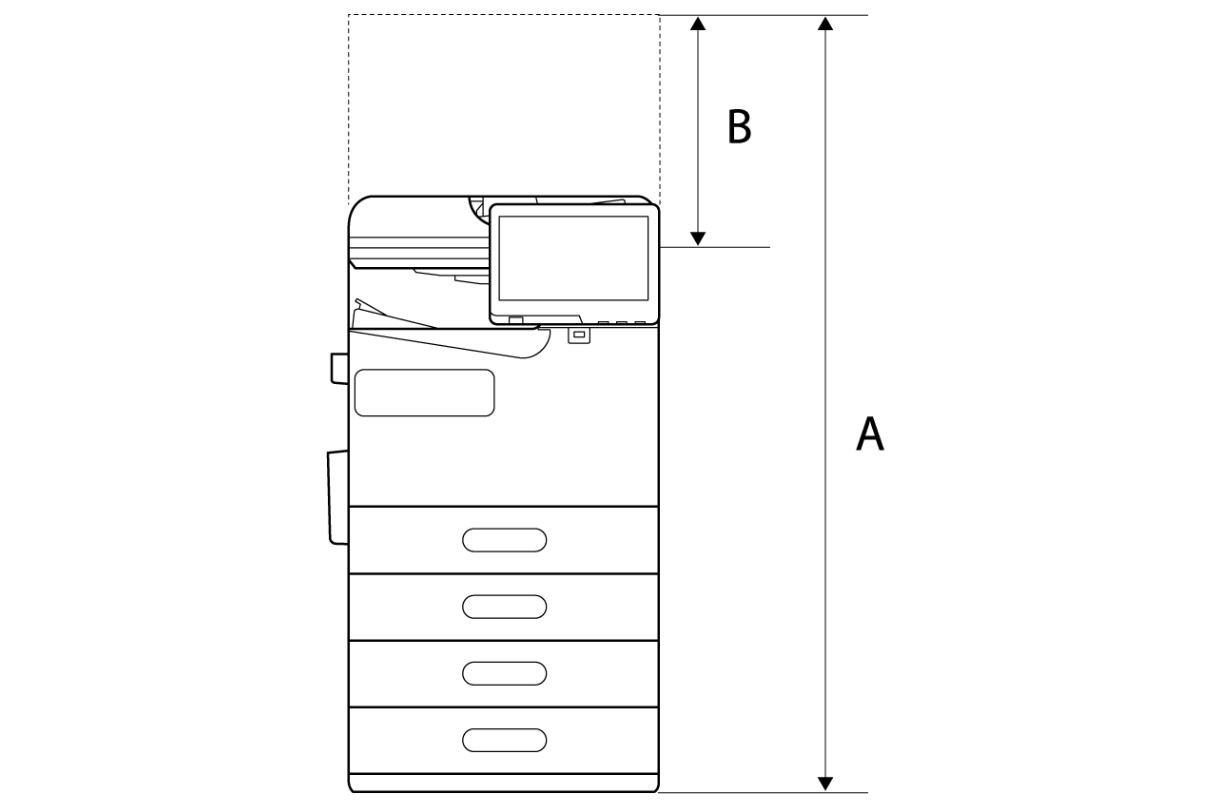

Printer main unit + 1st additional cassette + 2nd additional cassette

A 1168 mm
B 310 mm
Weight 85kg

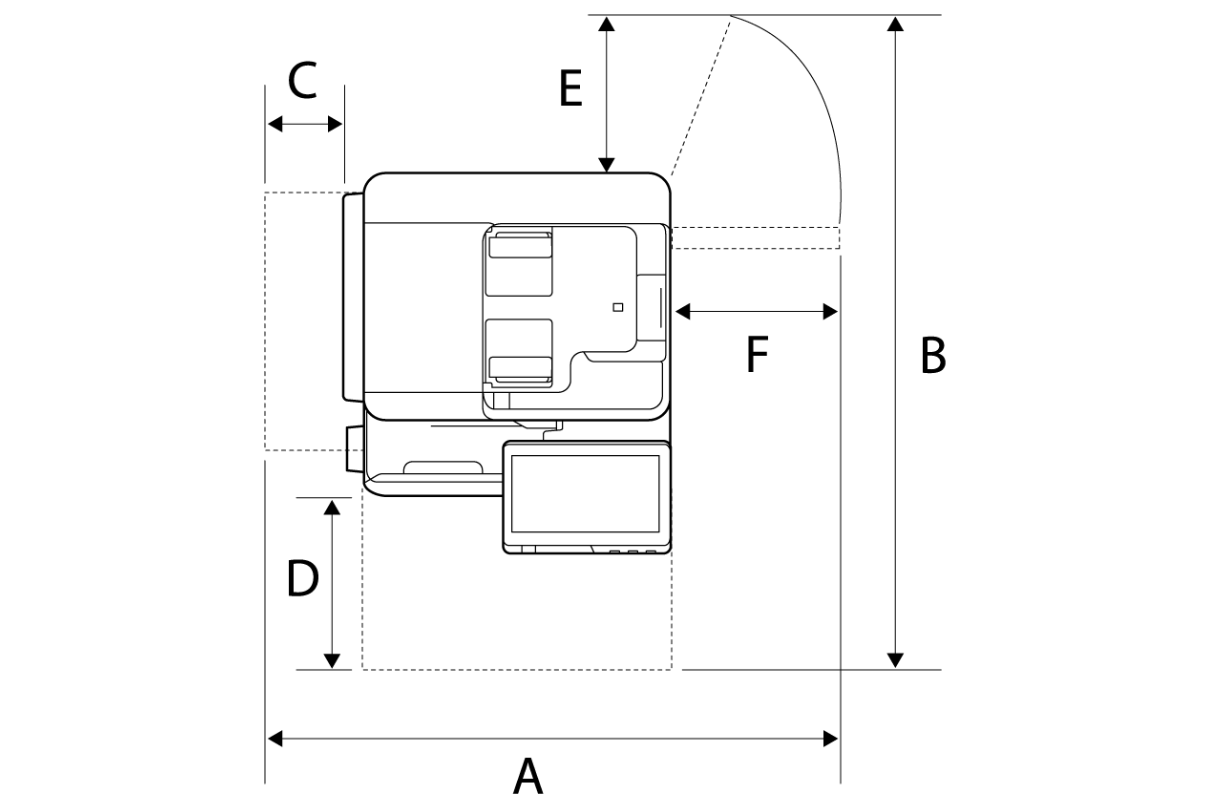

A 884 mm
B

944 mm
C 32 mm
D 332 mm
E 122 mm
F 387 mm
Installation environment

It may not be possible to maintain the operation quality of the product depending on ambient environmental conditions such as outside air. Therefore it is recommended that the product be used within the operating temperature and humidity ranges described below.

Location to avoid the installation

  • Location subjected to direct sunlight such as near a window
  • Location subjected to vibrations frequently
  • Location subjected to a sudden change in temperature and/or humidity
  • Location subjected to cold or hot air directly from an air conditioning or other device
  • Closed environment with bad breathability, bad ventilation
  • Places that are not horizontal
  • On an unstable object, such as a table that cannot withstand the load.
Product

Items

Operation guarantee

Print quality guarantee

Feeding paper reliability guarantee

temperature

5 to 40 °C

10 ~ 35 ℃

18 ~ 28 ℃

Humidity

15 to 80 % (non-condensing)

35 ~ 70 %

Items

Operation possible

Installation posture

Less than +/- 3°
important / 重要
  • A fatal error (034871) occurs when the main unit is tilted by +/- 3 degrees or more.
  • Even if the installation inclination is Less than +/- 3 degrees at the time of installation, the installation inclination may change over time depending on the material of the installation floor (product sinking occurrence, etc.). For this reason, it is recommended to install in an environment where the installation orientation is as close to 0° as possible.


Ink cartridge

Items

Operation guarantee

Package storage reliability

Reliability when installing the Main Unit

Reliability during packing transportation

temperature

5 ~ 40 ℃

-30 ~ 40 ℃*1

-20 ~ 40 ℃*1

-30 ~ 60 ℃*1*2

Humidity

15 ~ 80 % (non-condensing)

5 ~ 85 % (non-condensing)

*1: However, within 1 month when at 40°C

*2: However, within 120 hours when at 60°C

Power Supply

Rated voltage

AC 100-240 V

Rated current

3.0 to 1.5 A

Rated frequency

50/60 Hz
Power consumption (when connected to wired LAN) When copying (ISO/IEC24712 print pattern) Approx. 84 W
When ready Approx. 36 W
When sleep mode Approx. 0.8 W
When turn off Approx. 0.1 W
Maximum Power Consumption 160 W
