40202 Belt Cleaner Cloth Position Change
At the time of belt cleaning, the belt cleaner does not rotate, so the life counter of the belt cleaner unit does not advance; however, it accumulates at the same location on the cloth surface, so be careful not to reattach the dirt to the belt.
Therefore, change the cross plane position of the belt cleaner unit.
- Start service support mode.

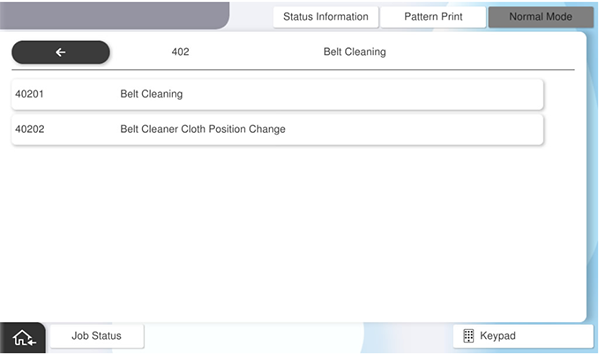

- Select [04 Maintenance].

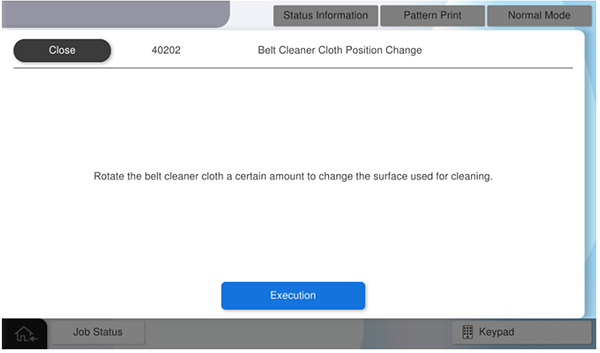

- Select [40202 Belt Cleaner Cloth Position Change].
- Press [Execution].
