Head ASP Packing Configuration / Bundled Items

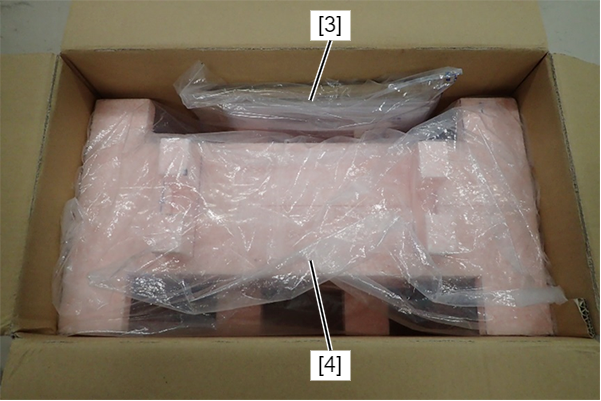

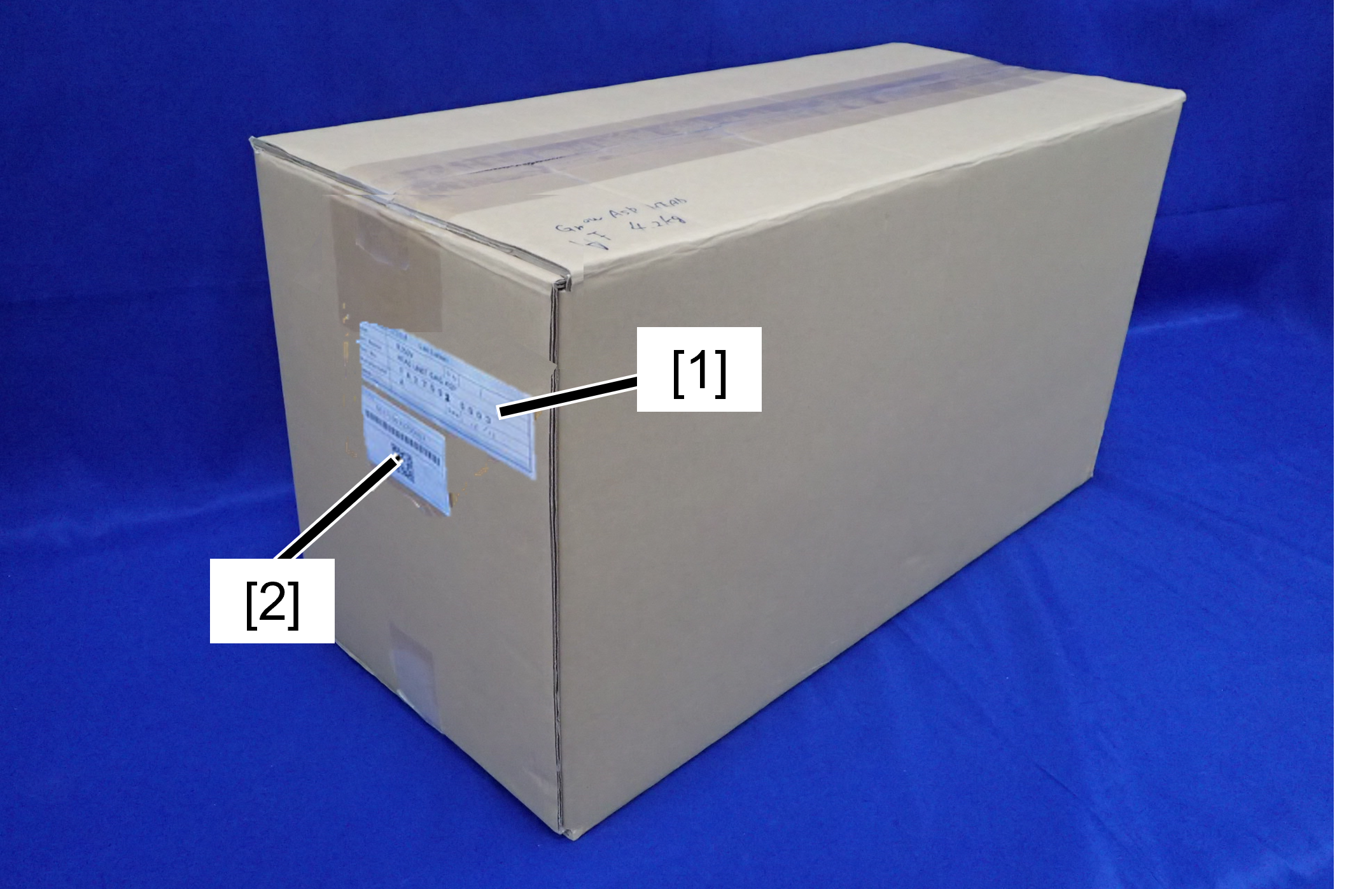

Packing box contents
| No. | Items | Qty. |
|---|---|---|
| 1 | ASP code label | 1 |
| 2 | Serial No. label | 1 |
| No. | Items | Qty. |
|---|---|---|
| 3 | Head replacement kit | 1 |
| 4 | Head palette | 1 |

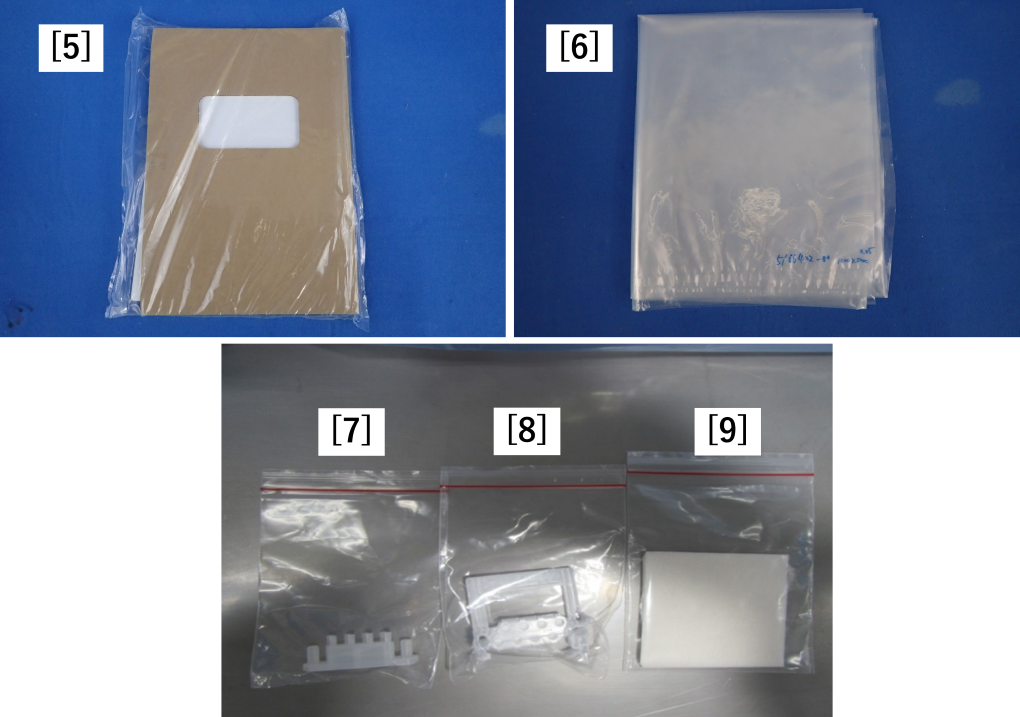

Head Replacement Kit Bundled Items
| No. | Bundled Items | Qty. |
|---|---|---|
| 5 | Paper for adjustment (the EPSON Photo quality ink jet paper) | 1 |
| 6 | Head packing bag | 1 |
| 7 | Protective cap (Head side) | 1 |
| 8 | Protective cap (Ink system side) | 1 |
| 9 | Cotton (BEMCOT) | 1 |

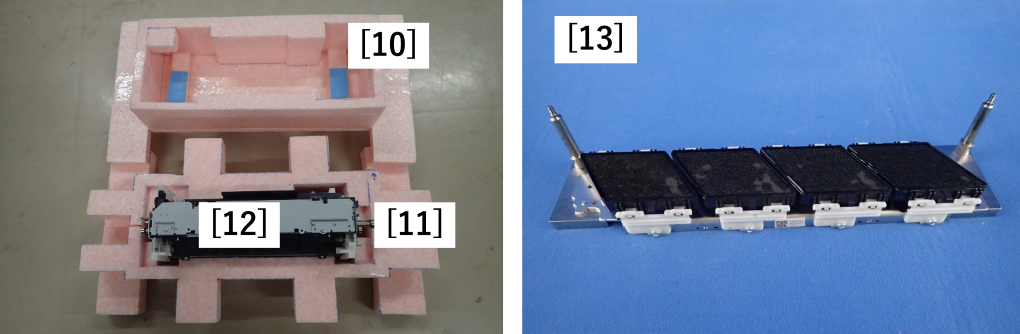

Head Pallet Configuration
| No. | Bundled Items | Qty. |
|---|---|---|
| 10 | Head Palette upper | 1 |
| 11 | Head palette lower | 1 |
| 12 | New head | 1 |
| 13 | Cap jig | 1 |
