Post-Head Paper Guide Unit - After replacement

  1. Turn the power ON.

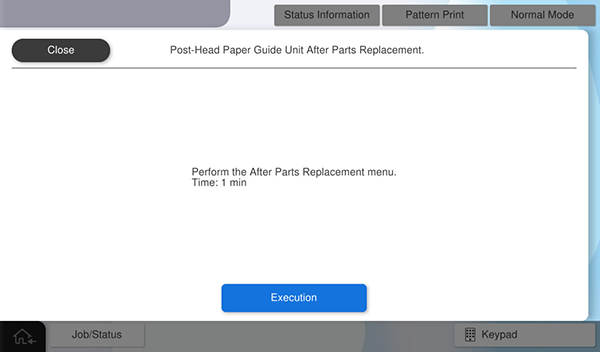

  2. Press [Execution].

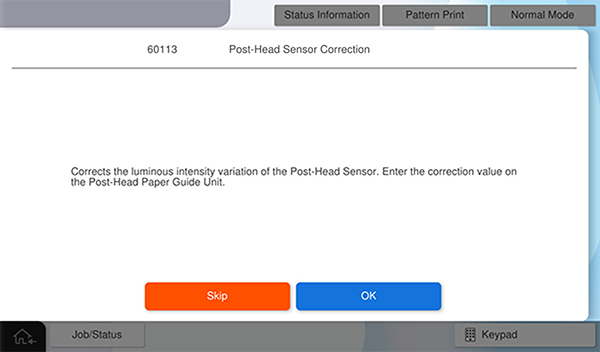

  3. Press [OK].

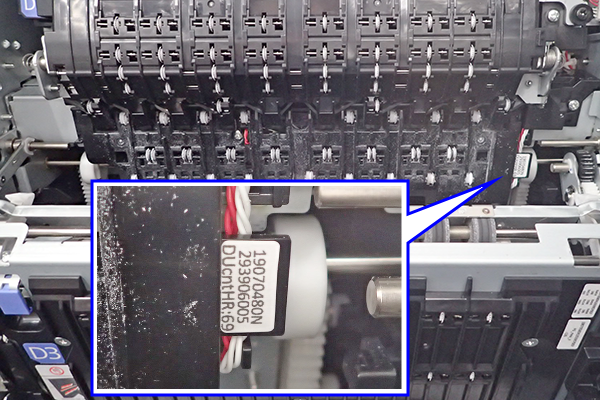

  4. Open the Right Door Unit and Belt Unit, and check the correction value label.

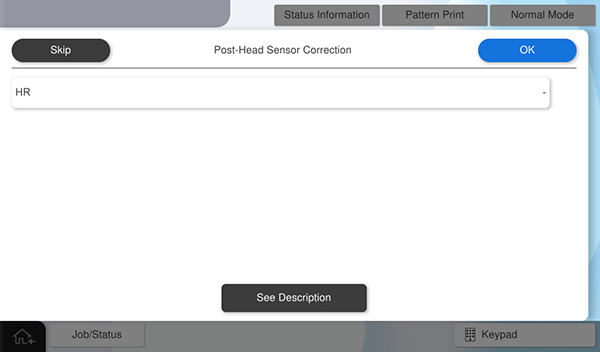

  5. Enter the correction value HR and press [OK].

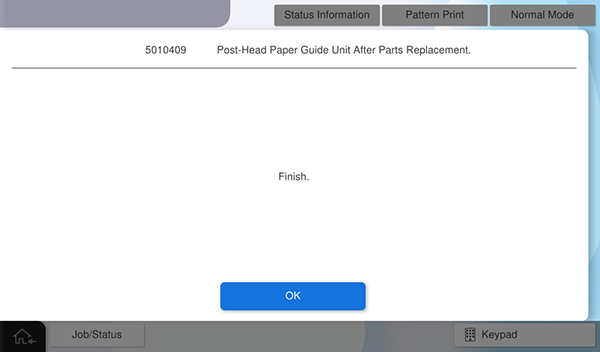

  6. Press [OK] to complete the menu.
