20107 Blank Paper Feed: 1 Sheet Simplex

Program No.

Pattern Name

Specifications

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20107

Blank Paper Feed: 1 Sheet  Simplex

  • Pattern outline: One blank sheet is passed through the single-sided path.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

Blank paper, Simplex, 1 sheets

  • Ink smear 2 (smear on back side)

  • Ink smear 3 (roller mark smudges made by serrated roller and paper feed roller)
  1. Start service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [20107 Blank Paper Feed: 1 Sheet Simplex].

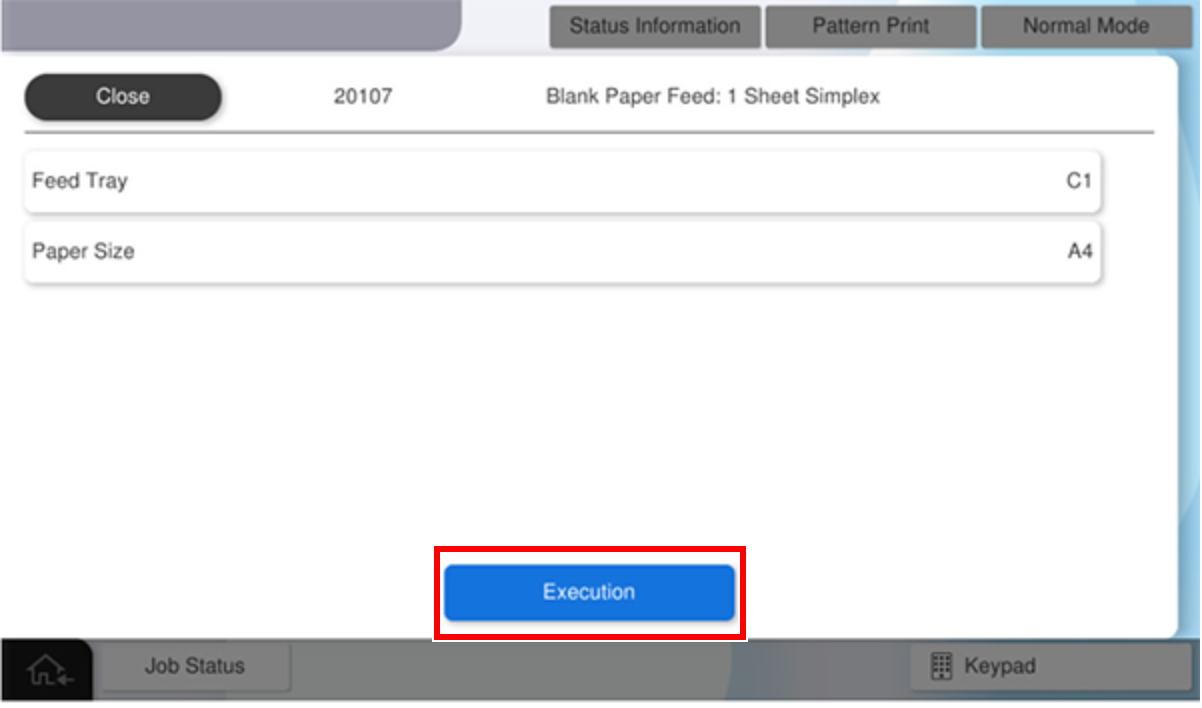

  5. press each setting item button to make print settings.


    the selectable items are as follows.

    program no. pattern name setting items choice
    20107 blank paper feed(1 sheet  simplex) feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
  6. Press [Execution].
