# 20201 Paper feed confirmation

Check the paper passing of the main unit (blank paper passing). Various settings, such as the Feed Tray, Tray, and Feed Speed, can be changed to any values.

1. Start service support mode.

2. Select [02 Check Pattern Print / Paper Feed Confirmation].

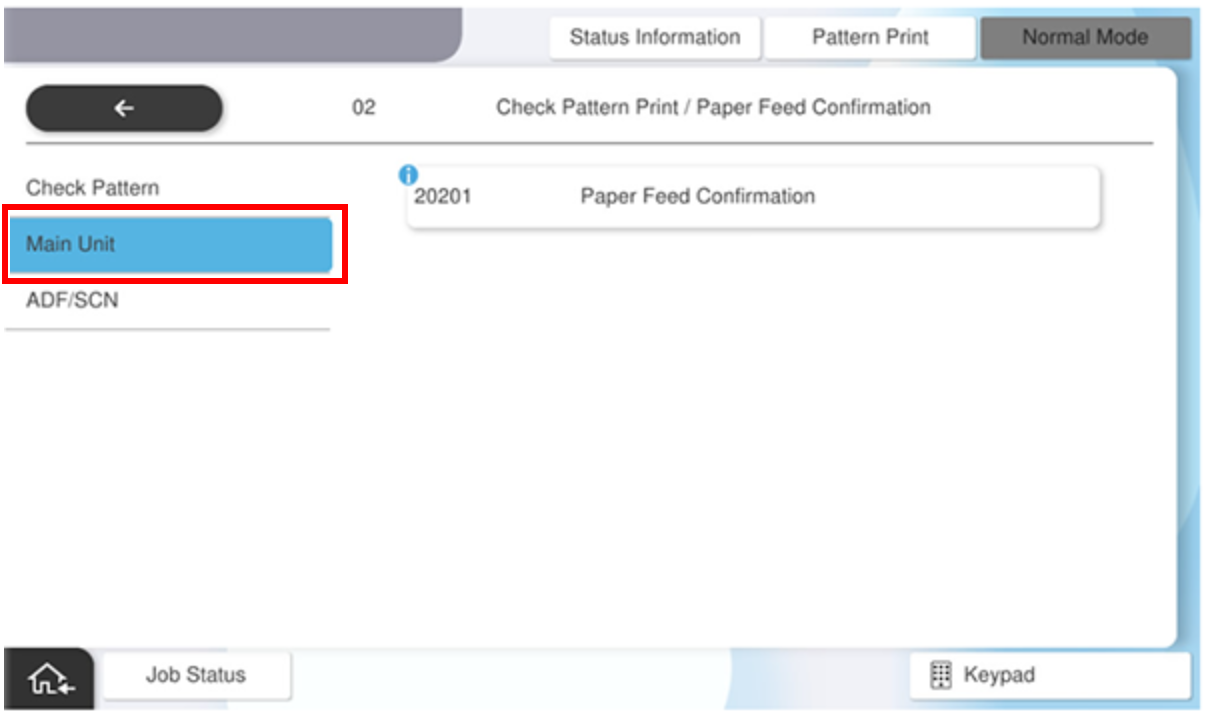

3. Select [Main Unit] tab.

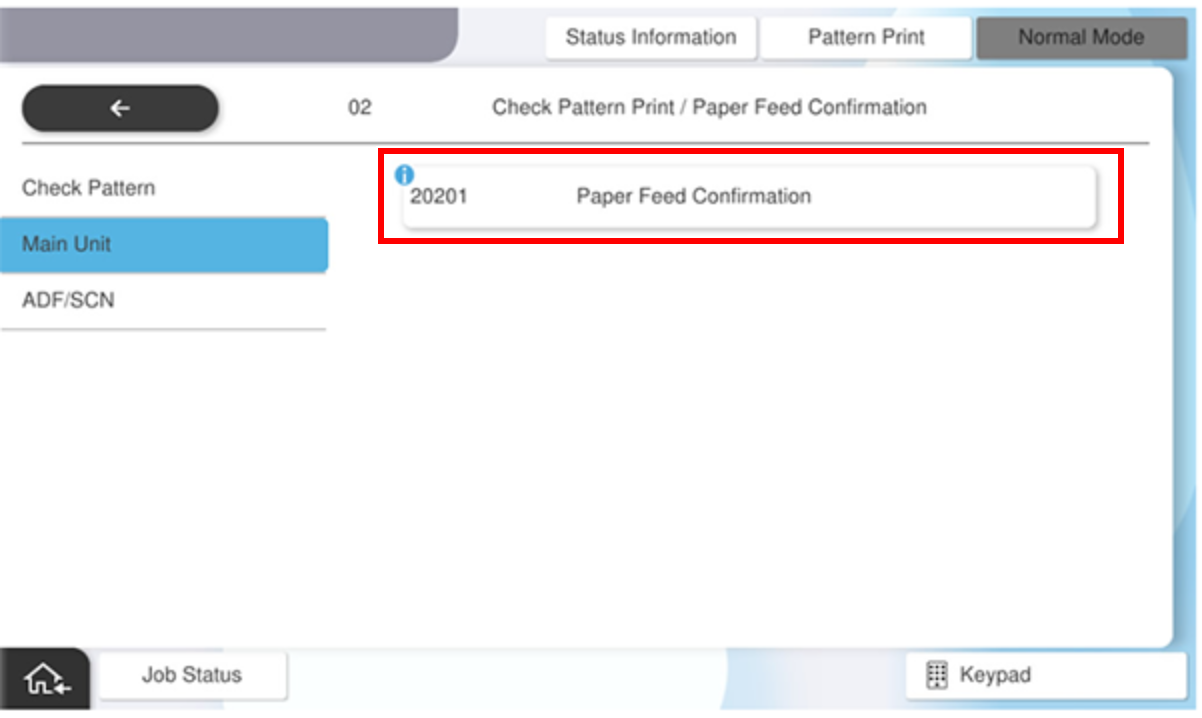

4. Select [20201 Paper Feed Confirmation].

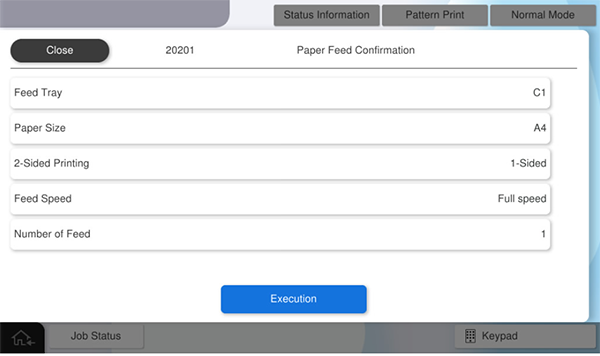

5. Press each setting item button to make print settings.

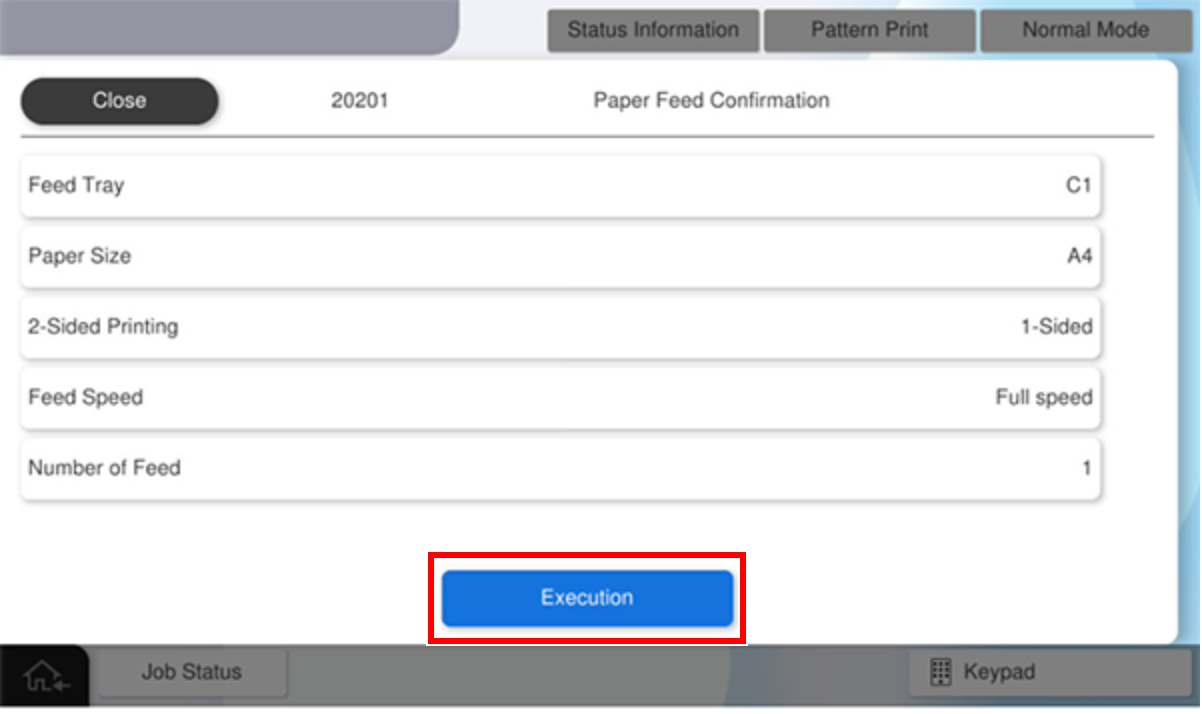

6. press [execution] after completing the settings.



   the parameters that can be set are as follows.

   setting items	choice
   feed tray	c1, c2, c3, c4, Paper Tray
   available paper sizes	a4 / letter
   duplex setting	1-sided, 2-sided
   feed speed	full, half, low
   number of feed	1 - 100 sheets

   Note / 補足

   full speed varies by model. (55/40 ppm)
