20106 Blank Paper Feed: 10 Sheet Simplex

Program No.

Pattern Name

Specifications

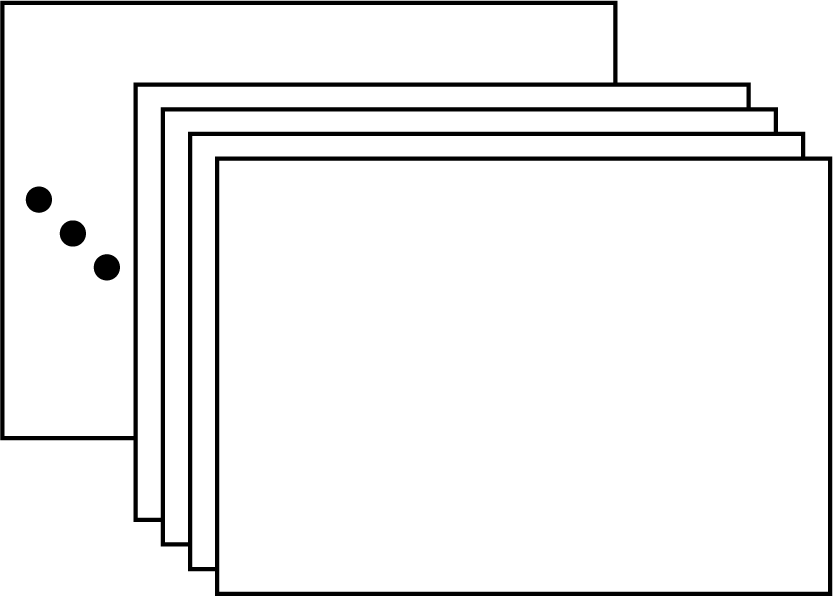

Pattern Image
(Paper transport direction: arrow direction)

Target image quality defect

20106

Blank Paper Feed: 10 Sheet Simplex

  • Pattern outline: 10 blank sheets are passed through the single-sided path.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 10

  • Ink smear 2 (smear on back side)

  • Ink smear 3 (roller mark smudges made by serrated roller and paper feed roller)

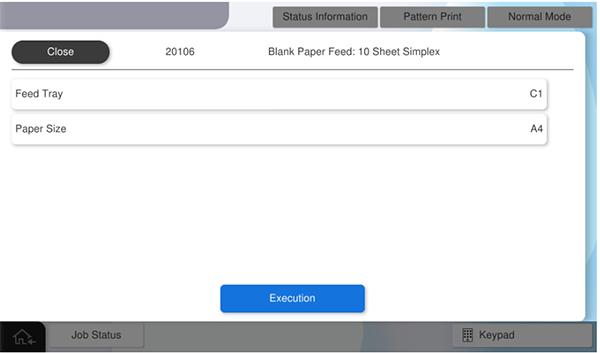

  1. Start service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [20106 Blank Paper Feed: 10 Sheet Simplex].
  5. press each setting item button to make print settings.


    the selectable items are as follows.

    setting items choice
    feed tray c1, c2, c3, c4, Paper Tray
    available paper sizes a4, letter
  6. Press [Execution].
