# 60118 Tilt Sensor Adjustment

Corrects detection variations caused by individual differences in tilt sensors.
Enter the correction value for the label attached to the ink supply unit.

1. Start the service support mode.

2. Select [06 Individual Adjustment].

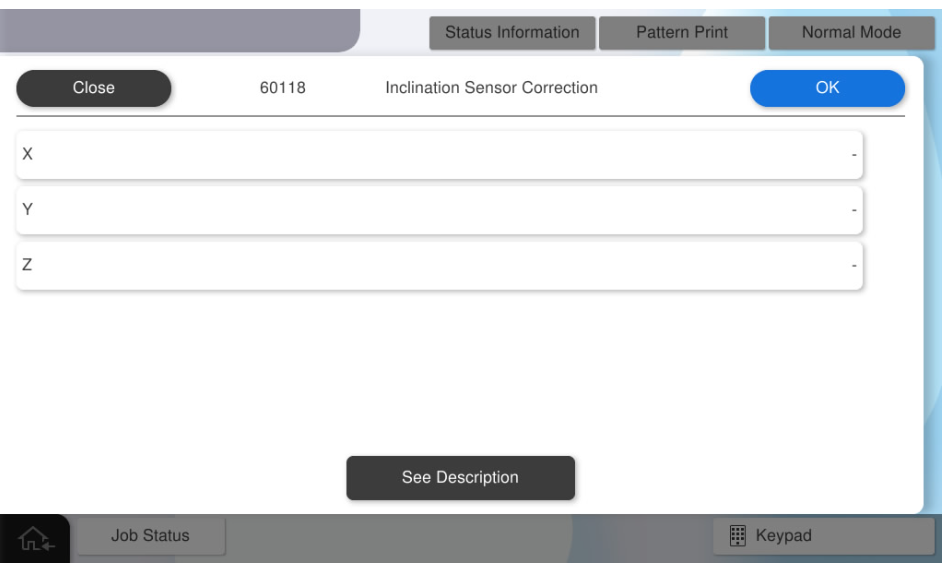

3. Select the [Main Unit・Additional Cassette] tab.
4. Select [60118 Tilt Sensor Adjustment].
5. Open the front cover, remove the ink cartridge (BK), and check the correction value label.

6. Input the correction values of X, Y, Z and press [OK].
