# 6011507 Reset Head Adjusted Value

Reset the head adjustment value that can be adjusted in the service support mode.

Note / 補足

The adjustment values to be reset are as follows. 60111 Head Angular Adjustment 6011401 Banding Adjustment: Solid Black 6011504 Banding Adjustment: By Feed Speed Mode

important / 重要

After executing this menu, be sure to perform the head angular adjustment in order to reset the adjustment value performed in the manufacturing process. (60111 Head Angular Adjustment) After that, output the Special Gradation Pattern in all print modes and check the print status. (20110 Special Gradation Pattern)

1. Start service support mode.

2. Select [06 Individual Adjustment].

3. Select the [Main Unit・Additional Cassette] tab.
4. Select the [60115 Special Print Adjustment] tab.

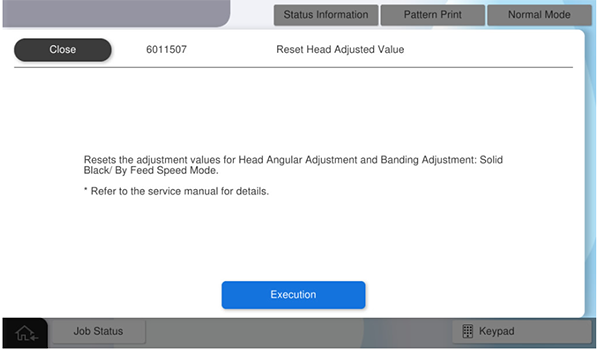

5. Select [6011507 Reset Head Adjusted Value].

6. Press [Execution].

7. Perform the Head Angular Adjustment (60111 Head Angular Adjustment)
8. Output the Special Gradation for checking the occurrence of streaking (20110 Special Gradation Pattern)
