Additional Cassette Unit

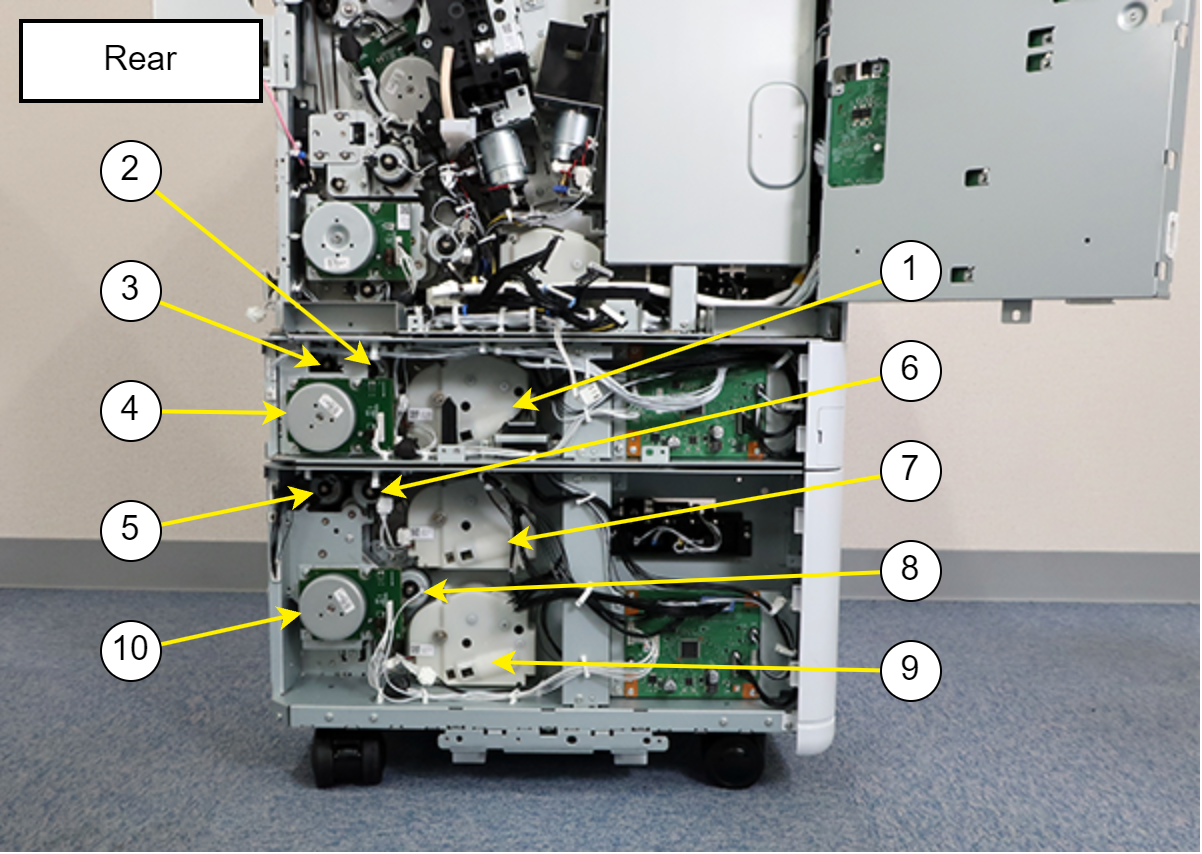

Motor / Clutch

No. Name Function Type Replacement procedure
1 C2 Liftup Motor Used to raise the paper cassette hopper. DC motor (24V) C2 Liftup Motor
2 C2 Pickup Clutch Switches whether to transmit the drive to the paper feed roller. DC24V C2 Pickup Clutch
3 C2 Pickup Roller Clutch Transmits the drive of the motor, which drives C2 mechanism, to the C2 paper feed roller to rotate it. It is usually spinning. DC24V C2 Pickup Roller Clutch
4 C2 Drive Motor Used to drive the roller mechanism. DC brushless motor (24V) C2 Drive Motor
5 C3 Pickup Roller Clutch Transmits the drive of the motor, which drives C3C4 mechanism, to the C3 paper feed roller to rotate it. It is usually spinning. DC24V C3 Pickup Roller Clutch
6 C3 Pickup Clutch Switches whether to transmit the drive to the paper feed roller. DC24V C3 Pickup Clutch
7 C3 Liftup Motor Used to raise the paper cassette hopper. DC motor (24V) C3 Liftup Motor
8 C4 Paper Feed Clutch Switches whether to transmit the drive to the paper feed roller. DC24V C4 Paper Feed Clutch
9 C4 Liftup Motor Used to raise the paper cassette hopper. DC motor (24V) C4 Liftup Motor
10 C3C4 Drive Motor Used to drive the roller mechanism. DC brushless motor (24V) C3C4 Drive Motor
Sensor


No. Name Function Type Replacement procedure

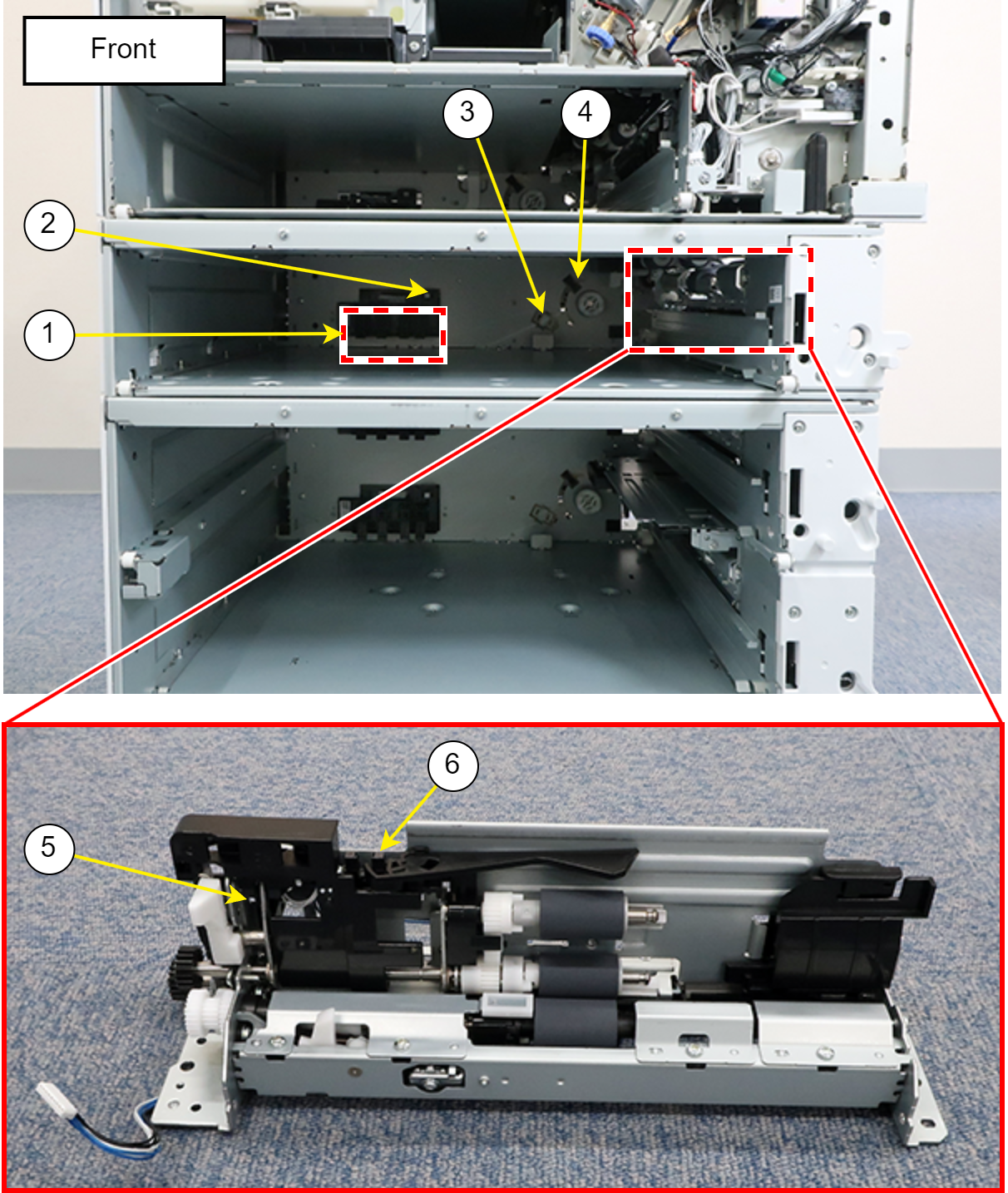

1 C2 Paper Size/Width Sensor Detects the edge guide position of the cassette to judge the size of the loaded paper. (Judges the paper width with the edge guide position) Mechanical contacts C2 Paper Size/Cassette Sensor Assy
2 C2 Cassette Sensor Detects the insertion state of the Paper cassette.
3 C2 Lift Up Motor Control Sensor Used to control the Lift Up Motor.

Transmission type photo interrupter		 C2 Liftup Motor
4 C2 Lift Up Upper Limit Sensor Detects the upper limit of paper cassette based on the detected frame position of the Paper Pickup Unit.
5 C2 Paper Near-End Sensor Detects a near-end state of paper in the Paper cassette by detecting the position of the lever that moves with the hopper.
C2 Pickup Unit
6 C2 Paper Sensor Detects whether paper is present or not in the paper cassette by the position of the lever of C2 Paper Pickup Unit.

No. Name Function Type Replacement procedure

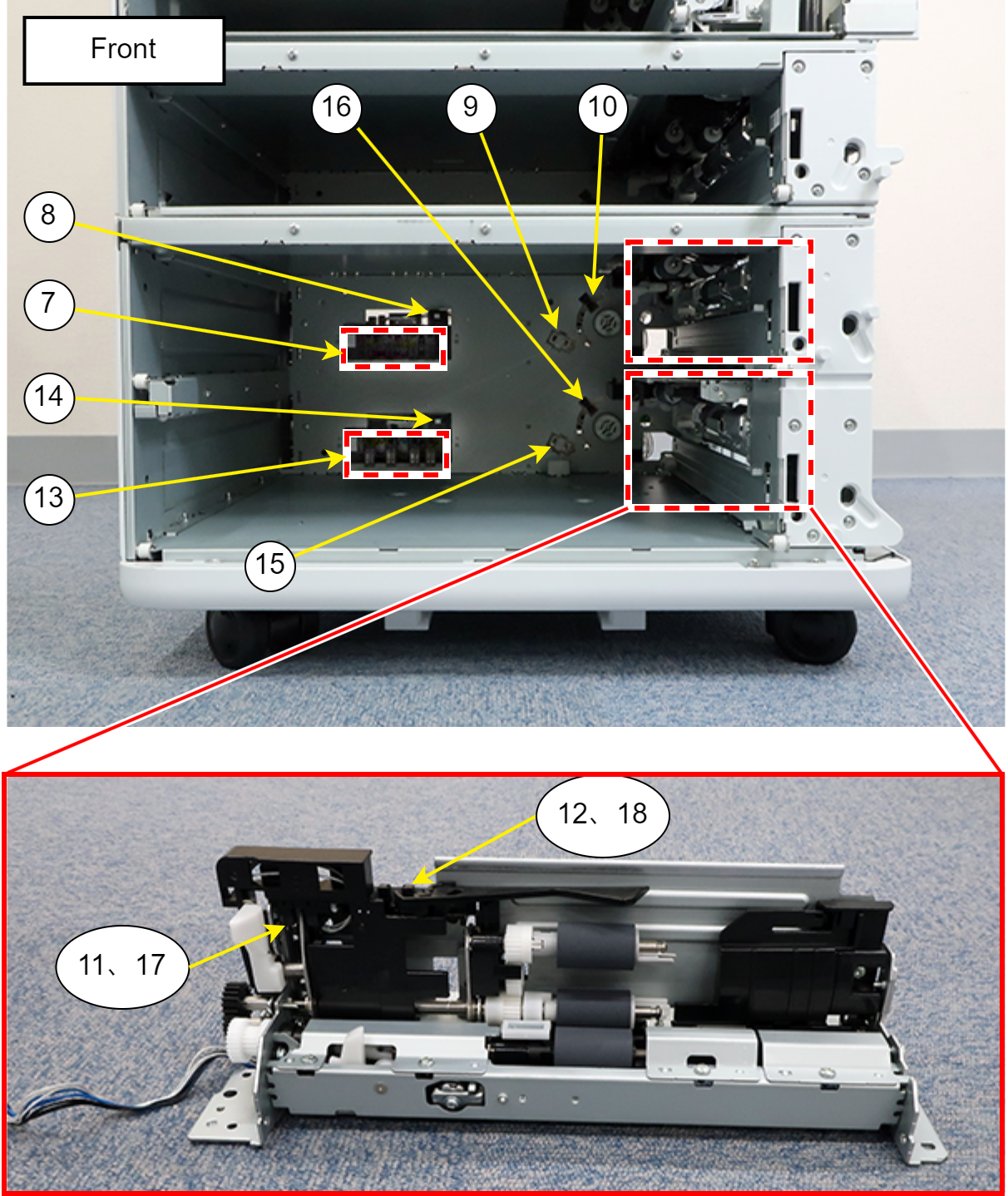

7 C3 Paper Size/Paper Width Sensor Detects the edge guide position of the cassette to judge the size of the loaded paper. (Judges the paper width with the edge guide position) Mechanical contacts C3 Paper Size/Cassette Sensor Assy
8 C3 Cassette Sensor Detects the insertion state of the Paper cassette.
9 C3 Lift Up Motor Control Sensor Used to control the Lift Up Motor. Transmission type photo interrupter C3 Liftup Motor
10 C3 Liftup Upper Limit Sensor Detects the upper limit of paper cassette based on the detected frame position of the Paper Pickup Unit.
11 C3 Paper Near-End Sensor Detects a near-end state of paper in the Paper cassette by detecting the position of the lever that moves with the hopper. C3 Pickup Unit
12 C3 Paper Sensor Detects whether paper is present or not in the paper cassette by the position of the lever of C3 Paper Pickup Unit.
13 C4 Paper Size/Paper Width Sensor Detects the edge guide position of the cassette to judge the size of the loaded paper. (Judges the paper width with the edge guide position) Mechanical contacts C4 Paper Size/Cassette Sensor Assy
14 C4 Cassette Sensor Detects the insertion state of the Paper cassette.
15 C4 Liftup Motor Control Sensor Used to control the Lift Up Motor. Transmission type photo interrupter C4 Liftup Motor
16 C4 Liftup Upper Limit Sensor Detects the upper limit of paper cassette based on the detected frame position of the Paper Pickup Unit.
17 C4 Paper Near-End Sensor Detects a near-end state of paper in the Paper cassette by detecting the position of the lever that moves with the hopper. C4 Pickup Unit
18 C4 Paper Sensor Detects whether paper is present or not in the paper cassette by the position of the lever of C4 Paper Pickup Unit.

No. Name Function Type Replacement procedure

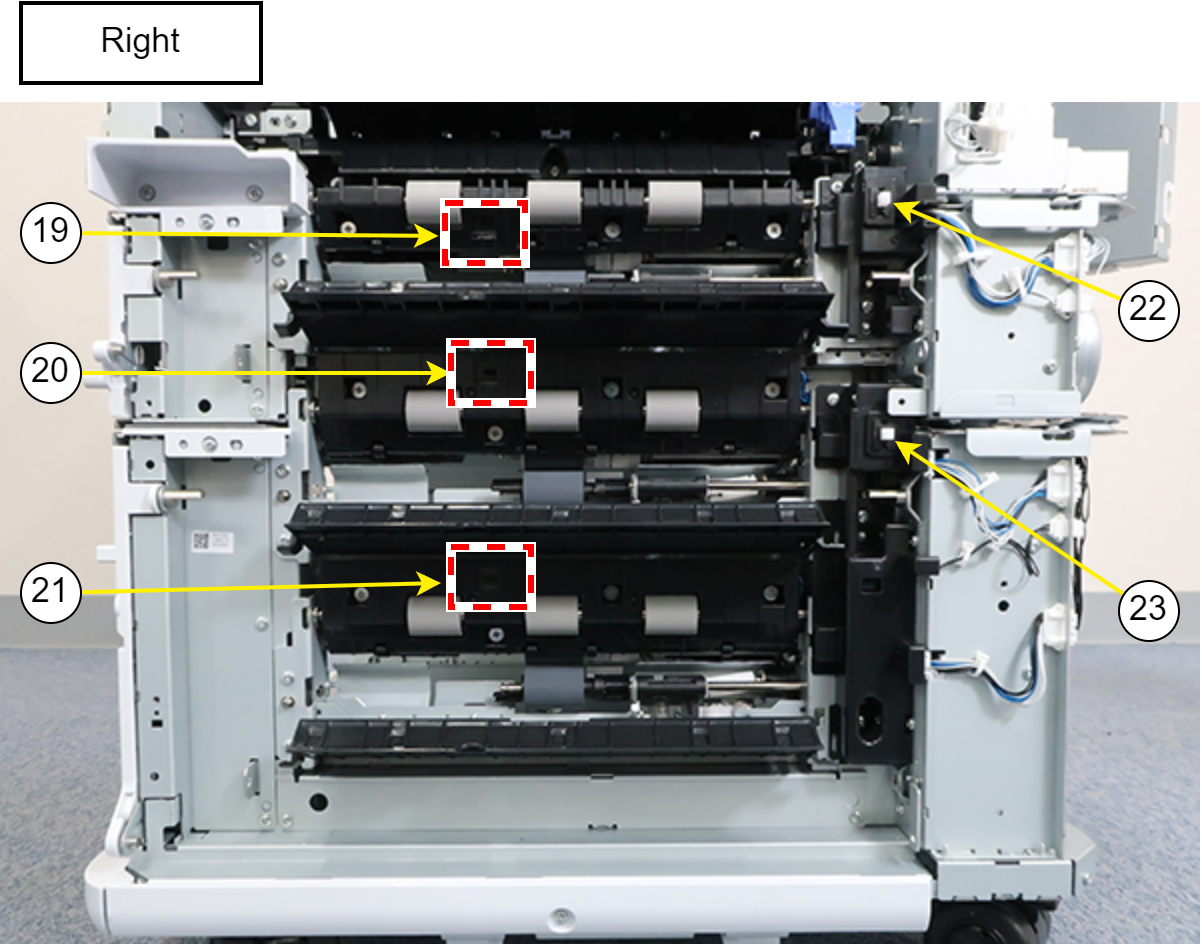

19 C2 Paper Feed Sensor Detects the top edge of the paper around the Paper Feed Roller 2. Reflective photo interrupter C2 Pickup Unit
20 C3 Paper Feed Sensor Detects the top edge of the paper around the Paper Feed Roller 3. C3 Pickup Unit
21 C4 Paper Feed Sensor Detects the top edge of the paper around the Paper Feed Roller 4. C4 Pickup Unit
22 C2 Additional Paper Feed Cover Sensor Detects whether the cover is open or closed. Mechanical contacts C2 Pickup Unit Connector Cover
23 C3C4 Additional Paper Feed Cover Sensor C3C4 Pickup Unit Connector Cover
