Checks Before Installation
Check that the installation location has the sufficient space and can withstand the weight shown below. (For the detailed specifications, refer to Product Descriptions)
Dimensions when installing the printer
Printer main unit only
| Items | WF-C579R/C579Ra | WF-C529R |
|---|---|---|
| External dimensions |
For storage | For storage |
|
|
|
|
|
|
|
|
|
| For printing | For printing | |
|
|
|
|
|
|
|
|
|
| Weight | 21.2Kg | 17.5 Kg |
Printer main unit (paper cassette 2 equipped)
| Items | WF-C579R/C579Ra | WF-C529R |
|---|---|---|
| External dimensions |
For storage | For storage |
|
|
|
|
|
|
|
|
|
| For printing | For printing | |
|
|
|
|
|
|
|
|
|
| Weight | 25.8Kg | 22.1 Kg |
Printer main unit (paper cassette 2 equipped) + optional paper cassette
| Items | WF-C579R/C579Ra | WF-C529R |
|---|---|---|
| External dimensions |
For storage | For storage |
|
|
|
|
|
|
|
|
|
| For printing | For printing | |
|
|
|
|
|
|
|
|
|
| Weight | 30.3Kg | 26.6 Kg |

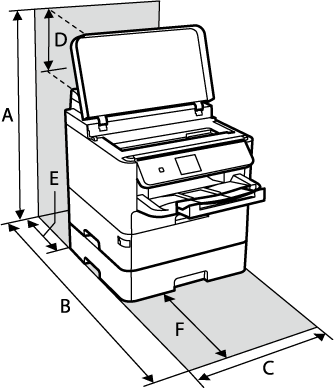

Installation Space
| Items | WF-C579R/C579Ra | WF-C529R |
|---|---|---|
| Enough Space |
|
|
| A | 772 mm | 706 mm |
| B | 848 mm | 848 mm |
| C | 425 mm | 425 mm |
| D | 259 mm | 194 mm |
| E | 79 mm | 79 mm |
| F | 370 mm | 370 mm |
Installation environment
Depending on the ambient environmental conditions such as outside air, it may not be possible to maintain the operation quality of the product, so we recommend the operating within the temperature and humidity range guaranteed below.
Product
| Items | Operation guarantee | Image guarantee | Feeding paper reliability guarantee |
|---|---|---|---|
| Temperature | 5~35℃ | 10~35℃ | |
| Humidity | 20 to 80% (Non condensing) | ||
Ink pack
| Items | Operation guarantee | Reliability when installing the Main Unit | Reliability during packing transportation |
|---|---|---|---|
| Temperature | 10~35℃ | -20~40℃ | -30~60℃ |
| Humidity | 20 to 80% (Non condensing) | 5 to 85% (Non condensing) | |
