# Check Pattern Plain Paper Second Page

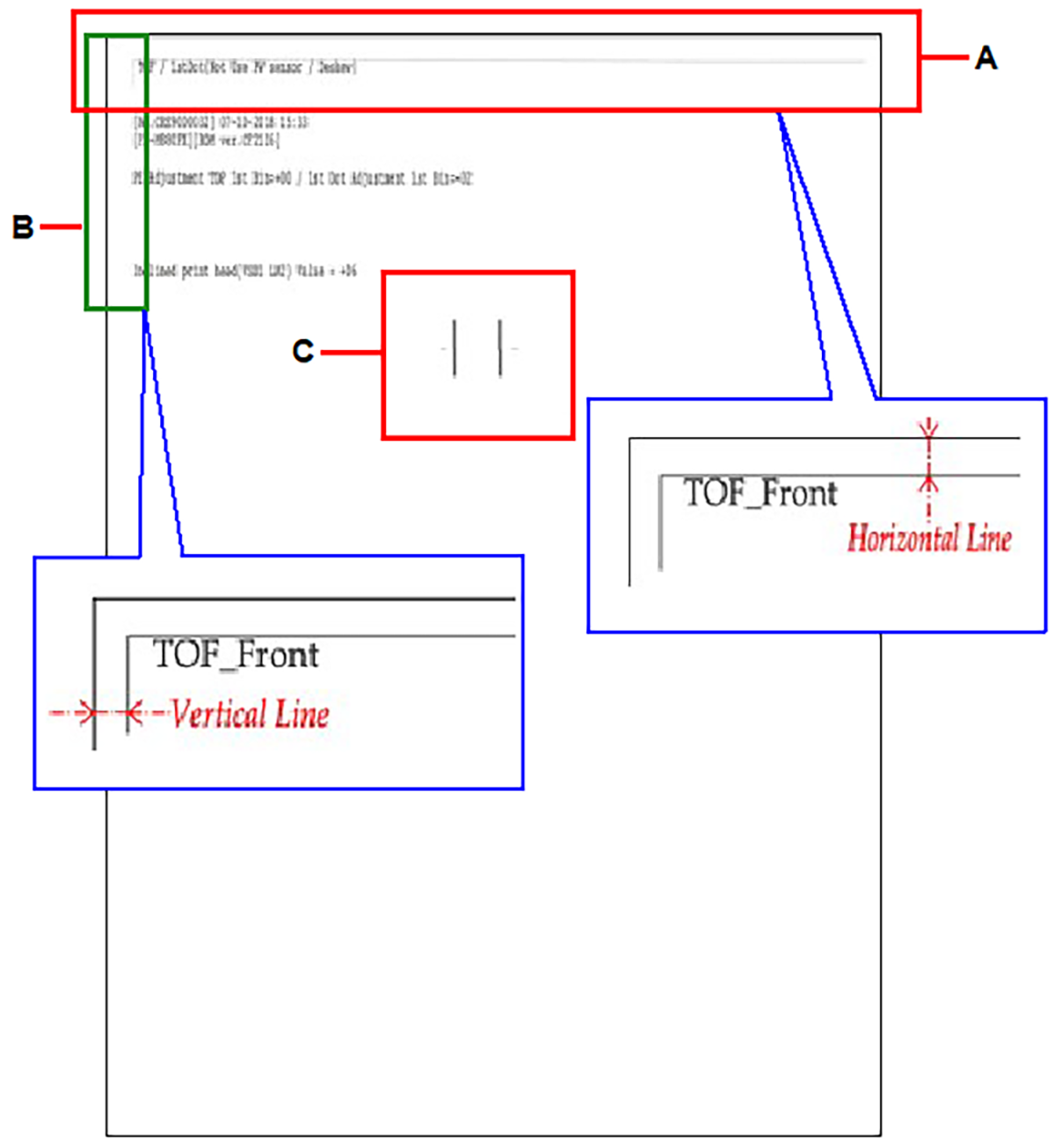

#Adjustment pattern

#Checking target

• A: 1st dot position misalignment, paper skew
• B: Printing start position misalignment
• C: Print Head Inclination Adjust failure

#Judgment method

• A: Is the distance between the horizontal line and the top edge of the paper within 3±1.0 mm.

• B: Is the distance between the vertical line and the left edge of the paper within 3±1.5 mm.

• C: Are the lines printed straightly?

  Pattern C


#Remedy

• A: Perform B50 Print Start Pos. (ASF) (B49 PW SENSOR CORRECT/B50 PRINT START POS. (ASF)/B51 PRINT START POS. (REAR ASF))

• B: Perform B52 PE Adjust (ASF)(B52 PE ADJUST (ASF)/B53 PE ADJUST (REAR ASF))

• C: Perform following adjustments in this order.

1. B43 HEAD ANGULAR ADJ. MECH

2. B44 HEAD ANGULAR ADJUSTMENT. SOFT
