# FAX Board Assy

1. Remove the four screws, then remove the Rear Cover (Back) (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

   Assembly / 組み立て

   Attach the two dowels of the Rear Cover (Back) (A) to the positioning holes on the Housing Left (B) and Housing Right (C).

2. Remove the two screws, then remove the Rear Top Cover (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
3. Open the ADF/SCN Unit (A).

4. Remove the three screws that secure the Housing Left (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
5. Lift the Housing Left (A) to release the two hooks on the front side of the Housing Left.

6. Disengage two hooks on the rear side of the Housing Left (A), and remove the Housing Left (A).




   Assembly / 組み立て

   Insert the eight tabs on the Housing Left (A) to the positioning holes of the Housing Upper (B) and the RIPS Unit (C).

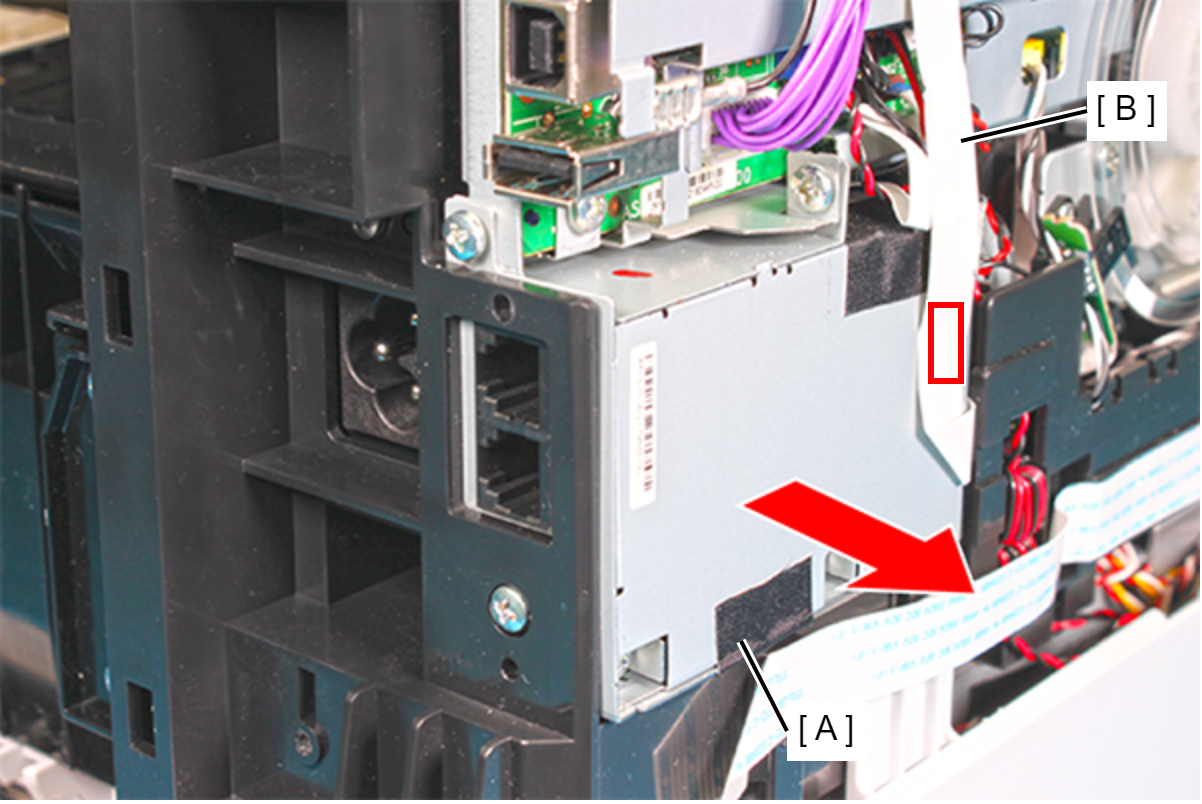

7. Peel off the Fax FFC (B) from the FAX Board Assy (A).

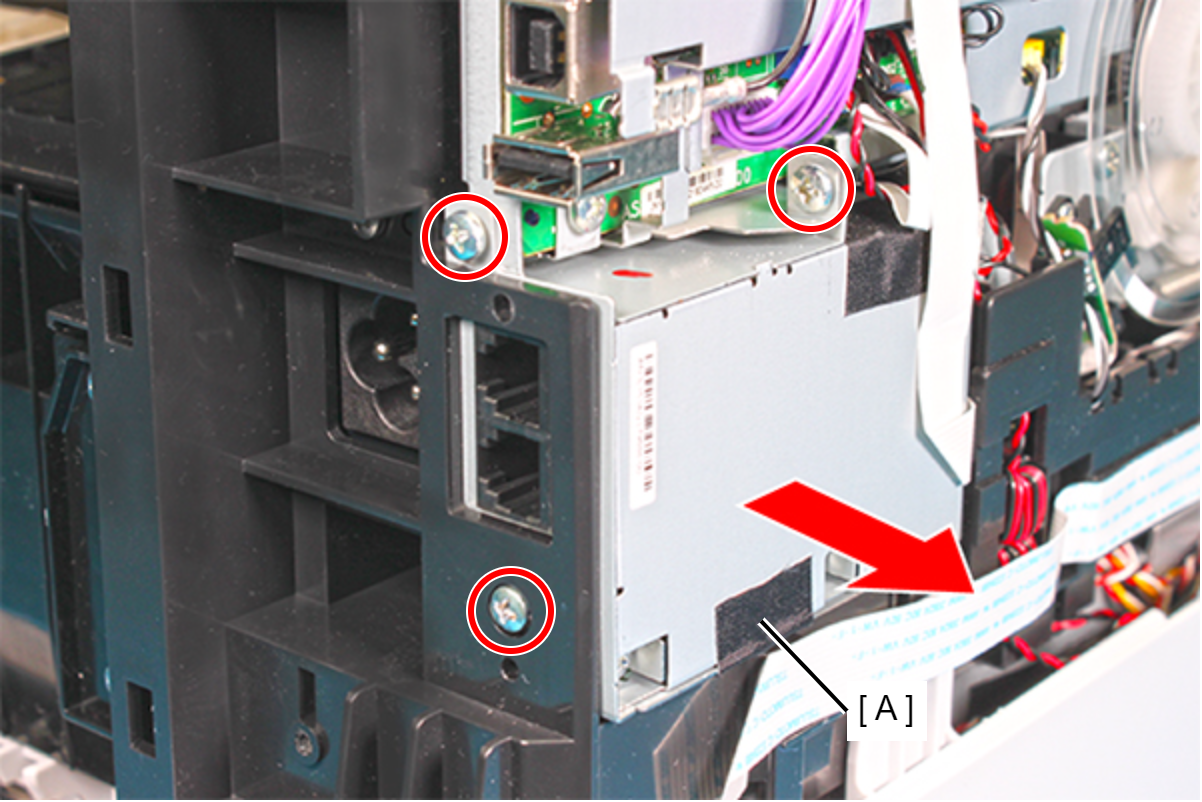

8. Remove the three screws, and slide the Fax Assy (A) in the direction of the arrow.

   • : C.B.S-TITE-SCREW-3x6-F/ZN-3C

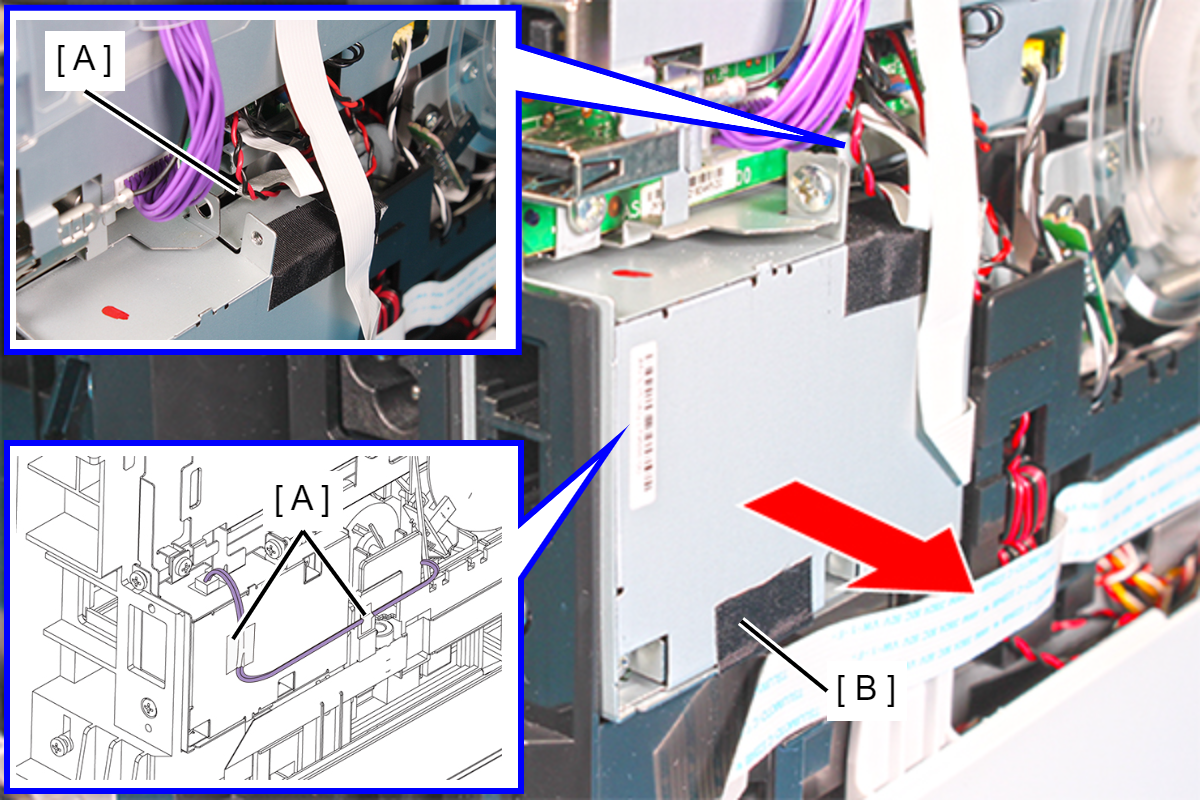

9. Peel off a piece of acetate tape (A), then remove the FAX Board Assy (B).

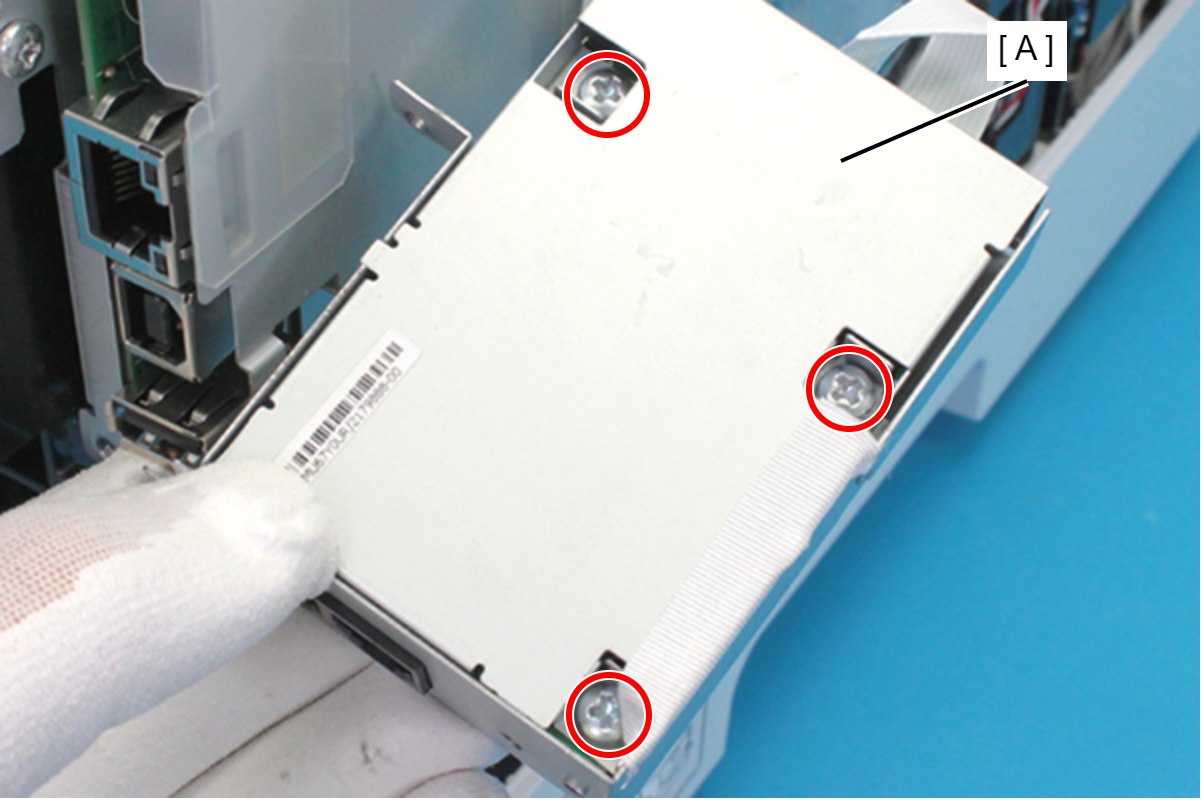

10. Remove the three screws that secure the Shield Plate (A).

    • : C.B.S-TITE-SCREW-3x6-F/ZN-3C

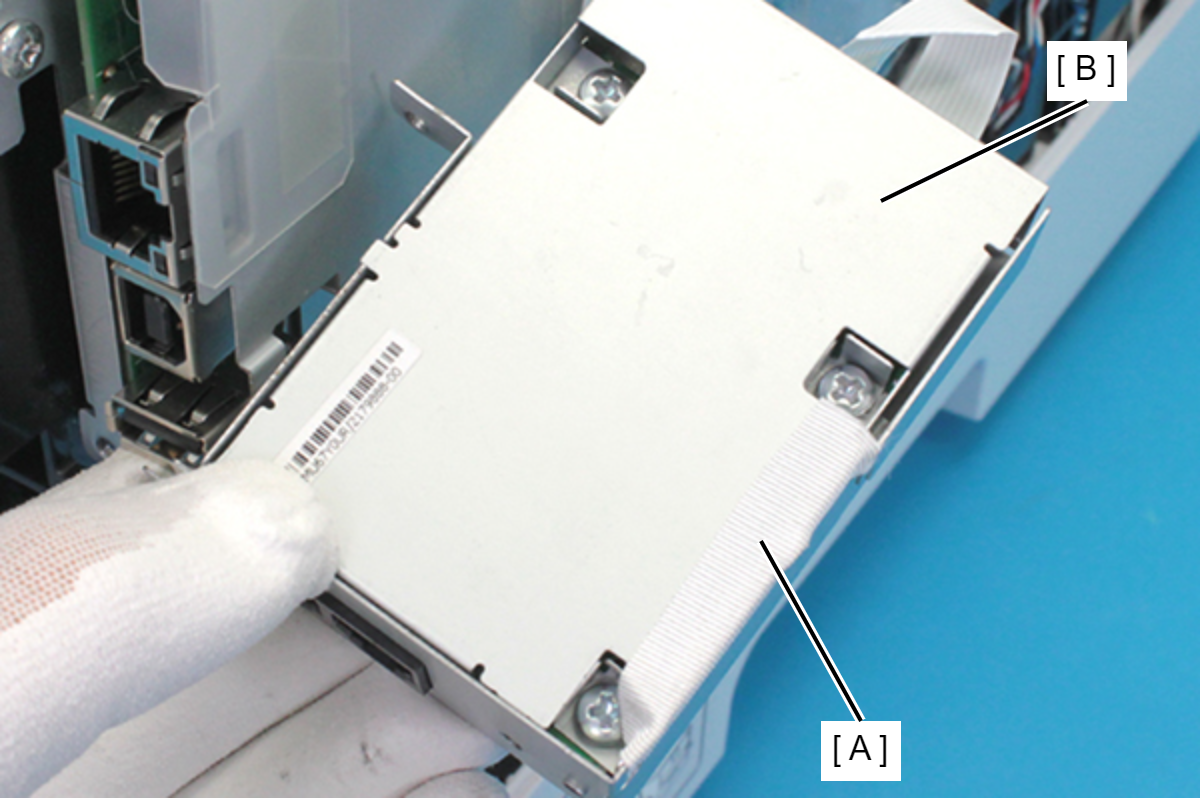

11. Peel off a piece of acetate tape (A), and remove the Shield Plate (B).

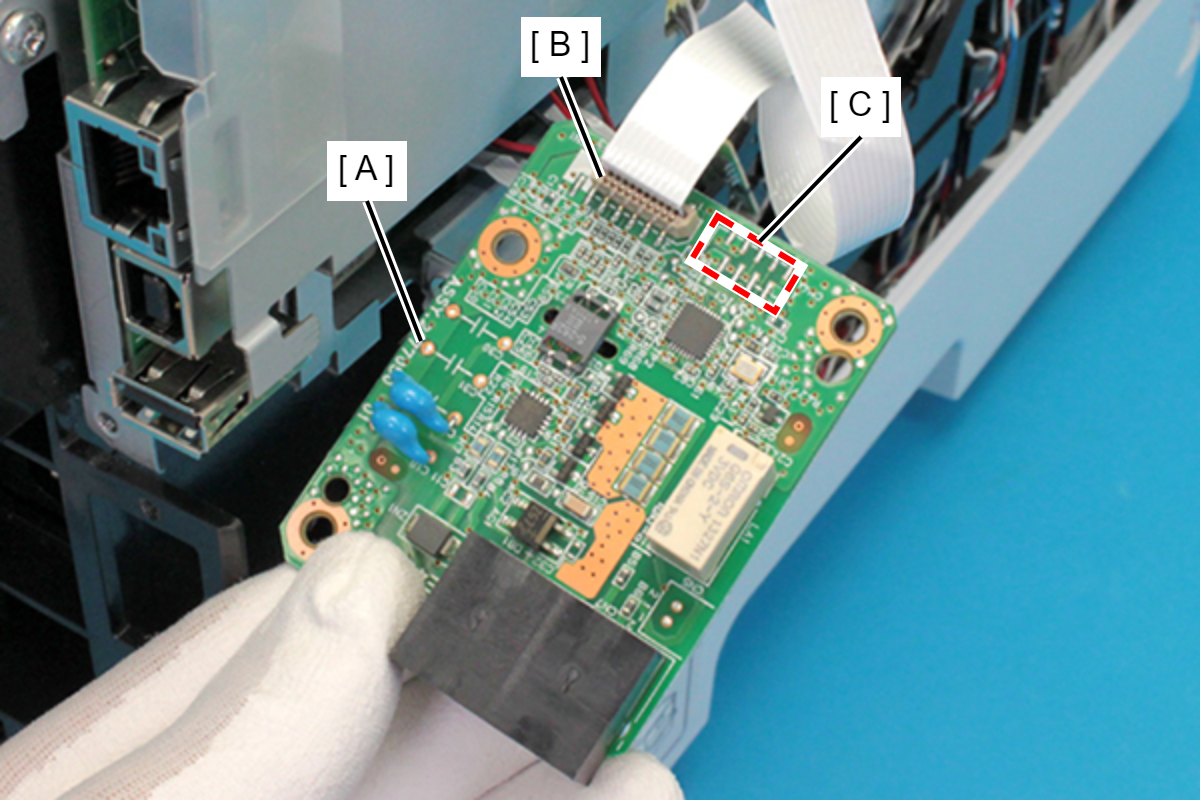

12. Disconnect the FFC from the connector (CN1 (B), CN4 (C)) on the FAX Board Assy (A).
