B54 FEED ADJUST

Overview

Depending on PF/EJ roller manufacturing variations, correct the paper feed variations via software.

Paper and feed tray

  • Document size: A4

  • Paper type: Photo matte paper

  • Paper feed tray: Rear ASF Unit

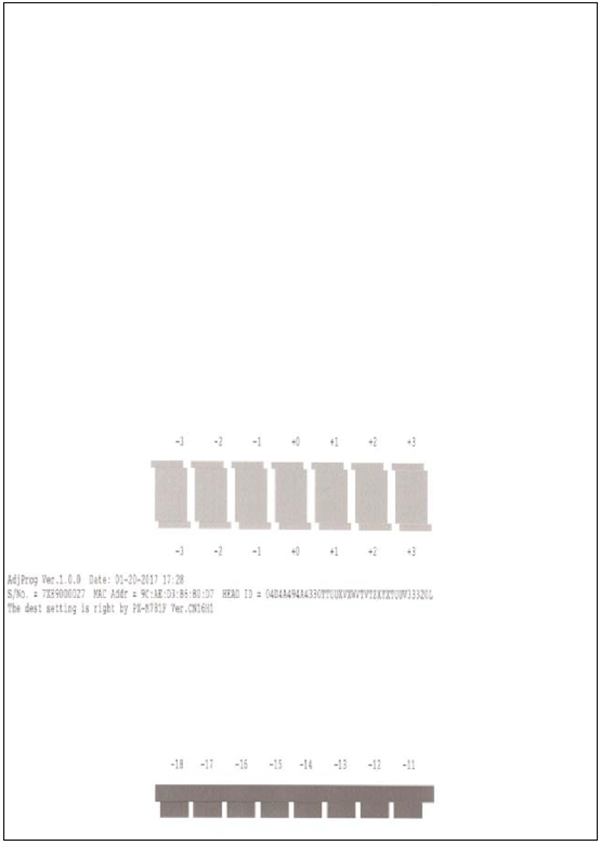

Adjustment pattern

Judgment method

Select the value of the pattern with the fewest white lines and with no overlap with upper/lower blocks.

Work Procedure

  1. Start the printer in the service mode.

  2. Select "B54 Feed Adjust" refer to "How to select an Adjustment item".

  3. Load paper into the specified paper feed tray.

  4. Confirm the current setting and print the adjustment pattern.
  5. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.
  6. Enter the adjustment value.


  7. Perform the completion operation to save the adjustment value to the printer.

    Check Point / チェックポイント

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.
