# B32 NOZZLE CHECK PATTERN

#Overview

Print patterns for checking for missing nozzles.

#Paper and feed tray

• Paper size: A4, Letter

• Paper type: Plain paper

• Paper feed tray: Paper Cassette (C1) to paper cassette (C3), Rear ASF

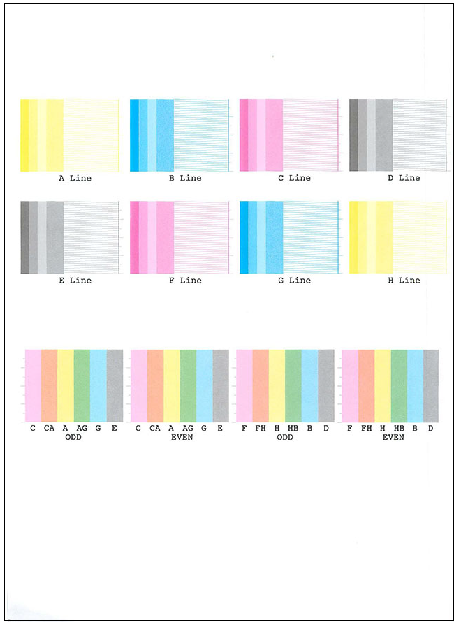

#Adjustment pattern

#Criteria

Visually check the check patterns to confirm that there are no nozzles missing.

#Work Procedure

1. Start the printer in the service mode.

   • Service mode startup

2. Select "B32 Nozzle Check Pattern" refer to "How to select an Adjustment item".

   • HOW TO SELECT AN ADJUSTMENT ITEM

3. Load paper into the paper feed tray.

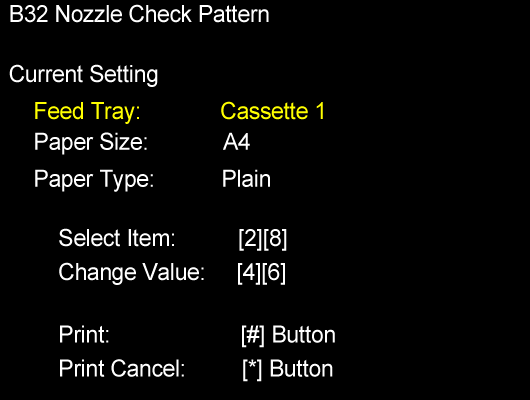

4. Confirm the current setting and print the adjustment pattern.
   When changing the print setting, select and change the item following the instruction on the screen.


5. Check the check pattern. If there are nozzles missing, perform cleaning.
