Protocol trace

A detailed report for the previous sent or received fax.
Auto Print after a fax transmission is available by changing the settings of Manual Print or FAX Parameter.

If a communication does not start until send/receive operation (when it did not enter Phase B after Phase A), the log is displayed as a blank space.

Print Procedure

Manual

[FAX] > [(Menu)] > [FAX Report] > [Protocol trace] = Select [Print]

Automatic

Use Fax parameter Setting mode #006 to automatically print the log for every communication.

Refer to "Communication protocol monitor log" in the service parameter table.
Output Setting

Error only
Save / Print

Fax parameter Setting mode #005 can be set to save/print only error communications.
Refer to "Communication protocol monitor log" in the service parameter table.

Auto

Use Fax parameter Setting mode #007 to save one log/ save three log/print the Protocol trace.
Refer to "Communication protocol monitor log" in the service parameter table.

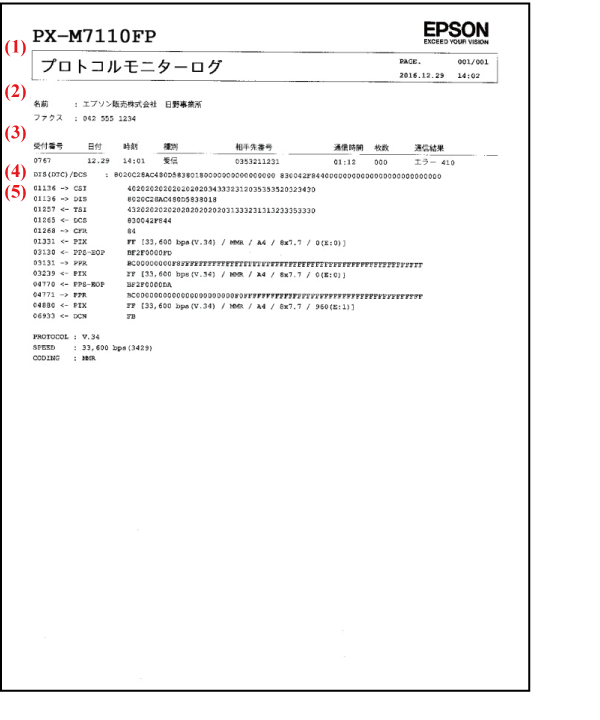

Output Sample

This sample is an example of a different model and may differ from the actual one.

(1) Title etc. Same as Fax log.
(2) Name, Fax Sender’s name registered to the product.
(3) Reception number to Communication result

Logs of the received faxes.
Description is same as Fax log.
(4) DIS(DTC) /DCS Viewpoint of DIS(DTS)/DCS
(5) Command / Response log How to read the Command / Response log
