# Pickup Roller Assy

1. Remove the Rear Unit (B) in the direction of the arrow while pressing the buttons (A) inward.

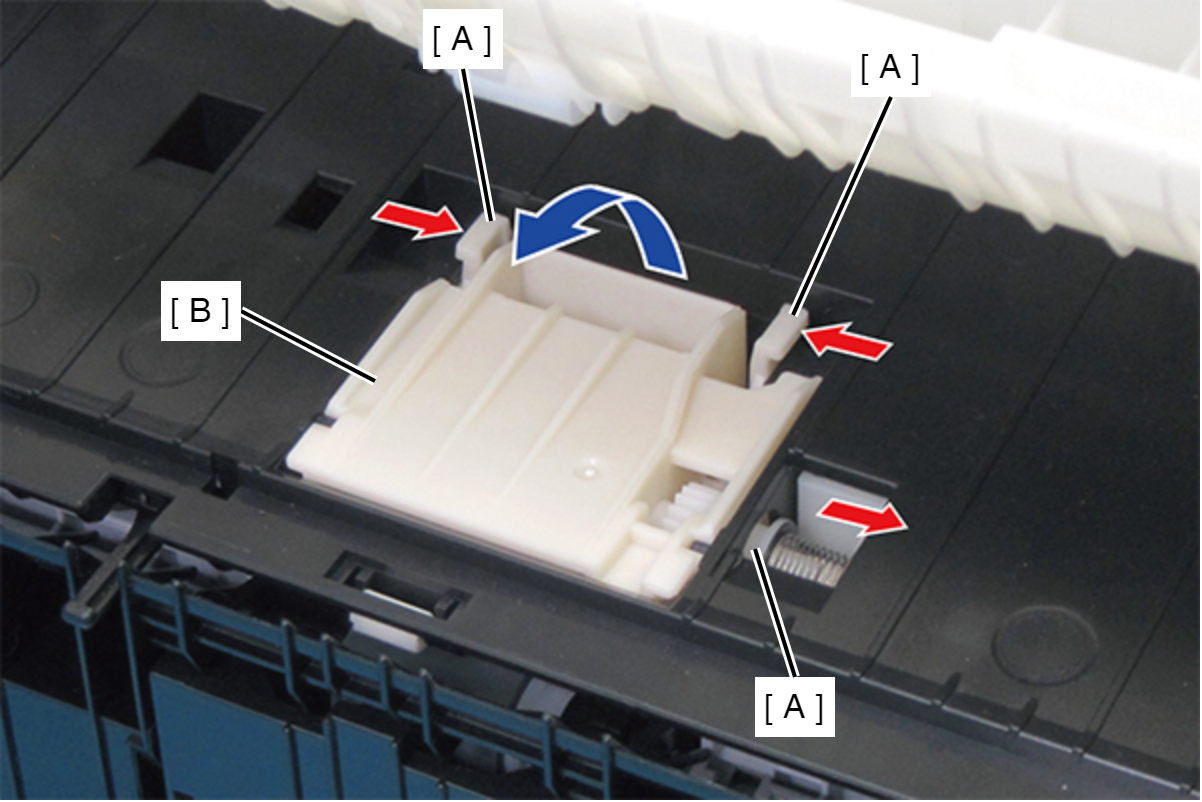

2. Rotate the Pickup Roller Assy (B) in the direction of the blue arrow while pushing three levers (A).

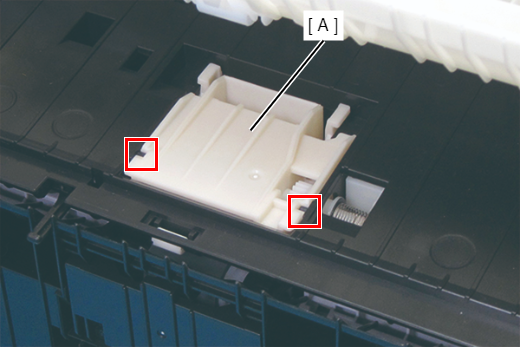

3. Disengage two bearing of the Pickup Roller Housing from the shafts of the Frame Base, then remove the Pickup Roller Assy (A).
