Optional Paper Cassette_1
| Symbol | Part/Component |
|---|---|
| 1 | Rear Cover |
| 2 | Right Cover |

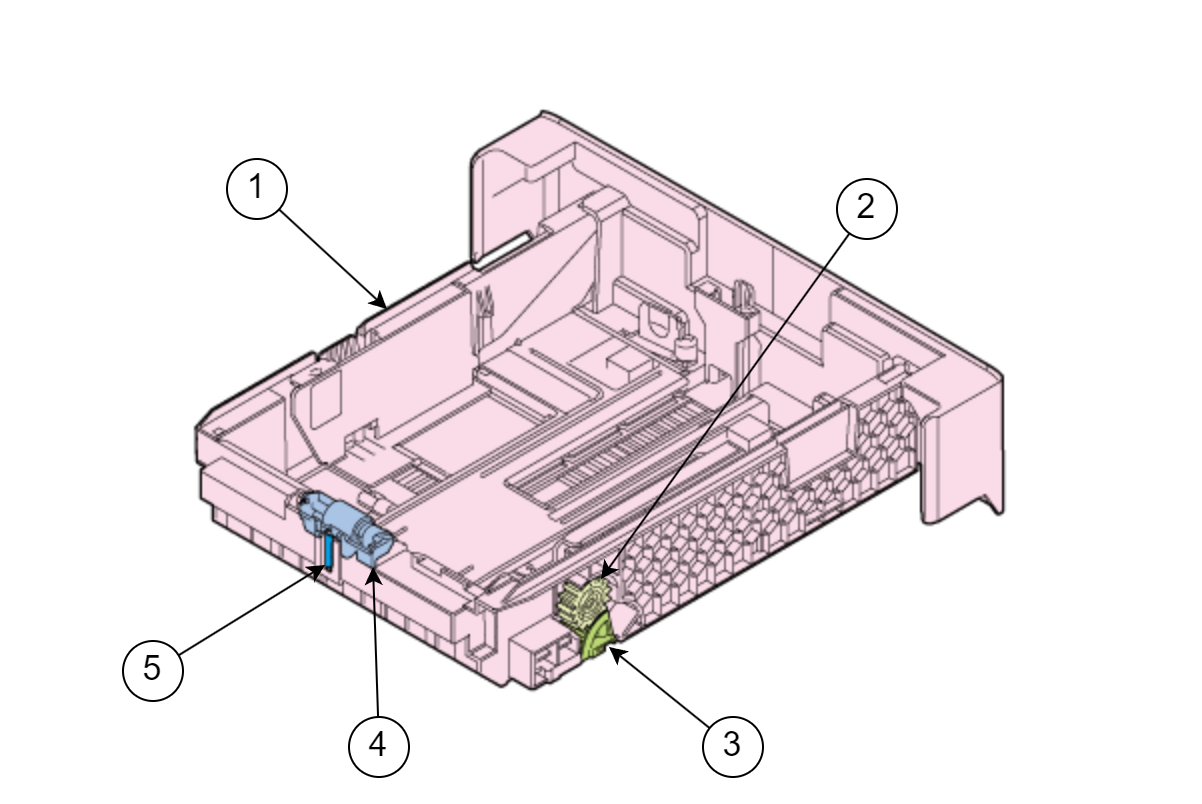

| Symbol | Part/Component |
|---|---|
| 1 | Paper Cassette 2 |
| 2 | Lift Up Gear 30T |
| 3 | Lift Up Sector Gear 40T |
| 4 | Retard Roller |
| 5 | Retard Roller Extension Spring |
