# Check Pattern Plain Paper Fifth, Sixth Page

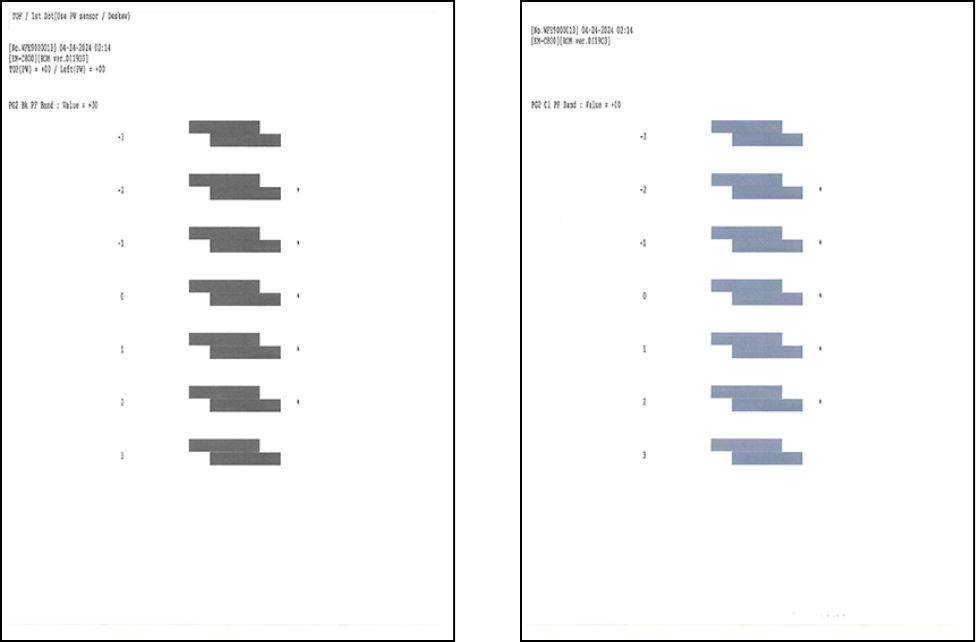

#Adjustment pattern

#Checking target

• Band Feed Adjust failure (condition: PG2, monochrome)
• Band Feed Adjust failure (condition: PG2, color)

#Judgment method

• Any overlapping of the upper and lower blocks or any white band in the center patch?




  Check Point / チェックポイント

  Make sure the best pattern is one of the patterns with “*” printed on the right side.

• • A: Overlapping of the upper and lower blocks

  • B: White band

#Remedy

• Perform following adjustments in this order.

1. B48 BI-D BAND ADJUSTMENT

2. B55 BAND FEED ADJUST
