Retard Roller Extension Spring
- Pull the Paper Cassette 2 (A), then remove it from the Optional Paper Cassette Unit (B).

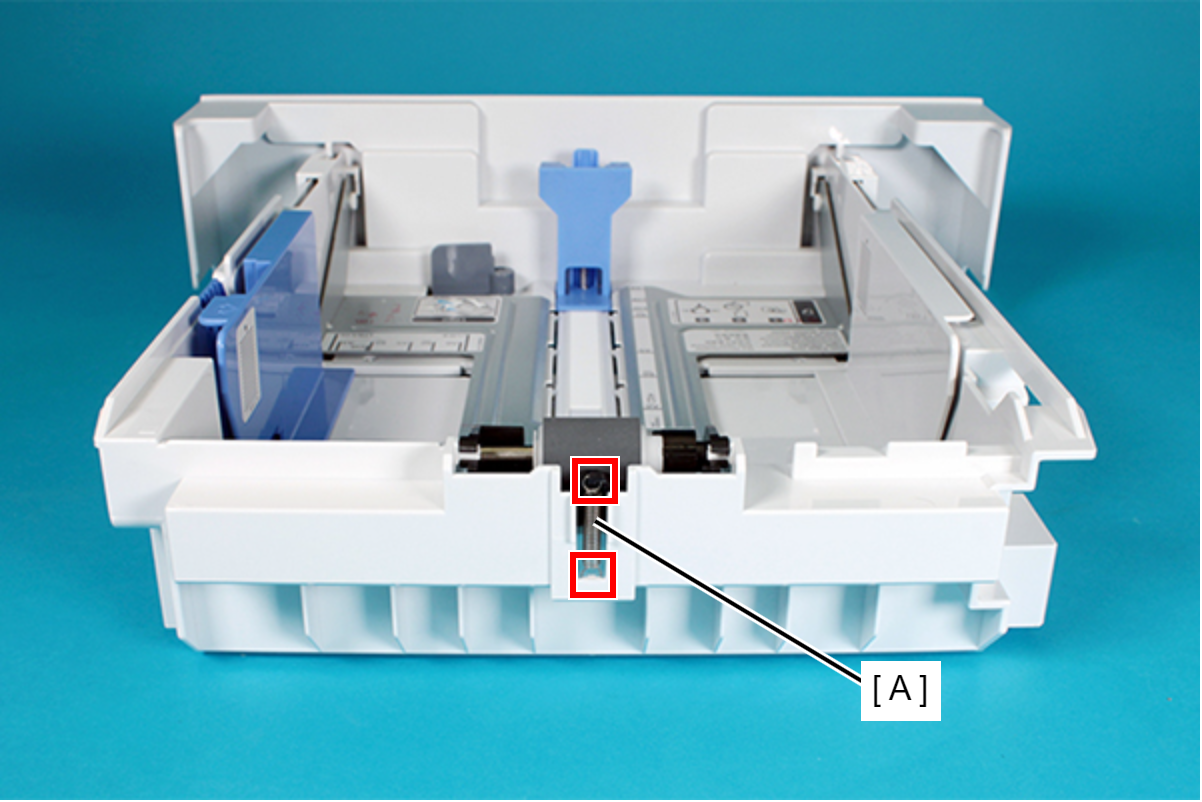

- Disengage two hooks(x2) of the Extension Spring, then remove the Retard Roller Extension Spring (A).
