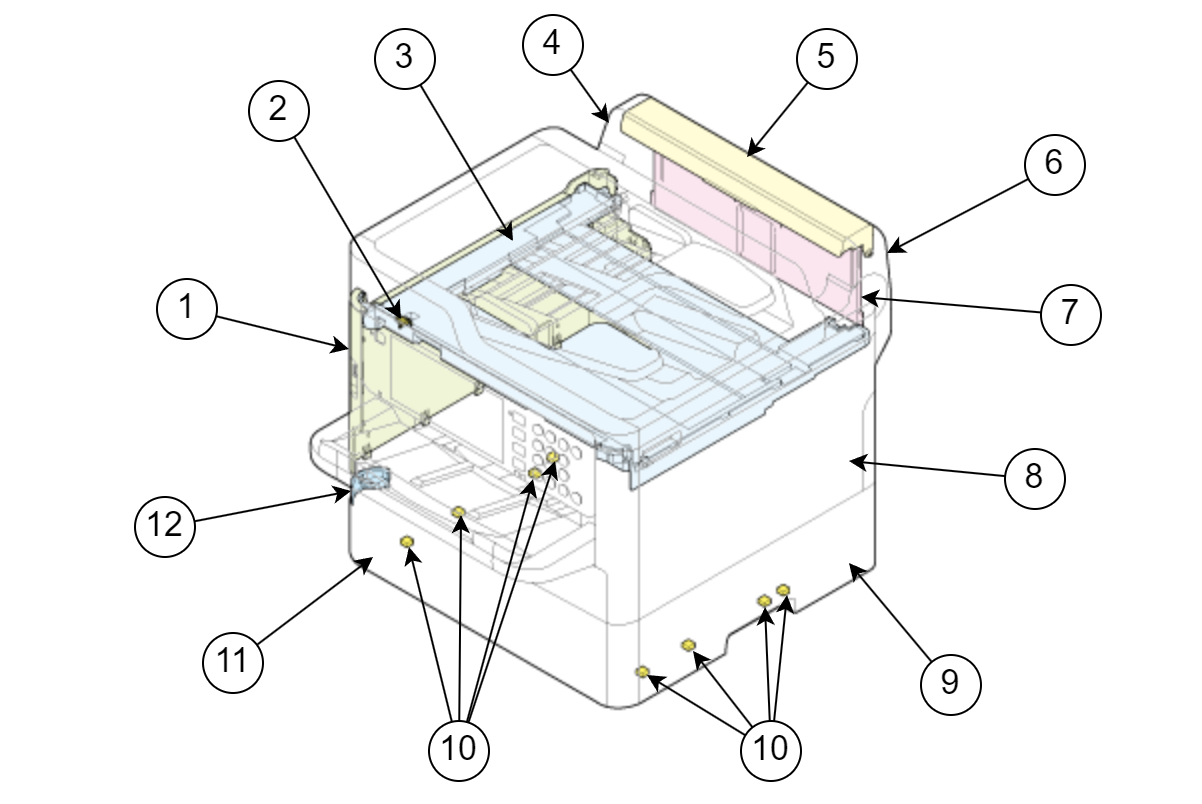

Housing (WF-C579R Series)
| Symbol | Part/Component |
|---|---|
| 1 | Housing Left |
| 2 | ADF/SCN Open Sensor |
| 3 | Housing Top |
| 4 | Rear Top Cover |
| 5 | ASF Cover |
| 6 | Housing Rear |
| 7 | Paper Support |
| 8 | Housing Right |
| 9 | |
| 10 | |
| 11 | Ink Supply Unit Front Cover |
| 12 |
