# B45 PTS ACC./DEC. ADJUST

1. #Overview

   Correct the impact offset caused by a difference in the speed of the low-speed part and acceleration/deceleration part of the CR.

   #Paper and feed tray

   • Paper size: A4, Letter

   • Paper type: Plain paper

   • Paper feed tray: Paper Cassette1st (C1) to paper cassette (C3)

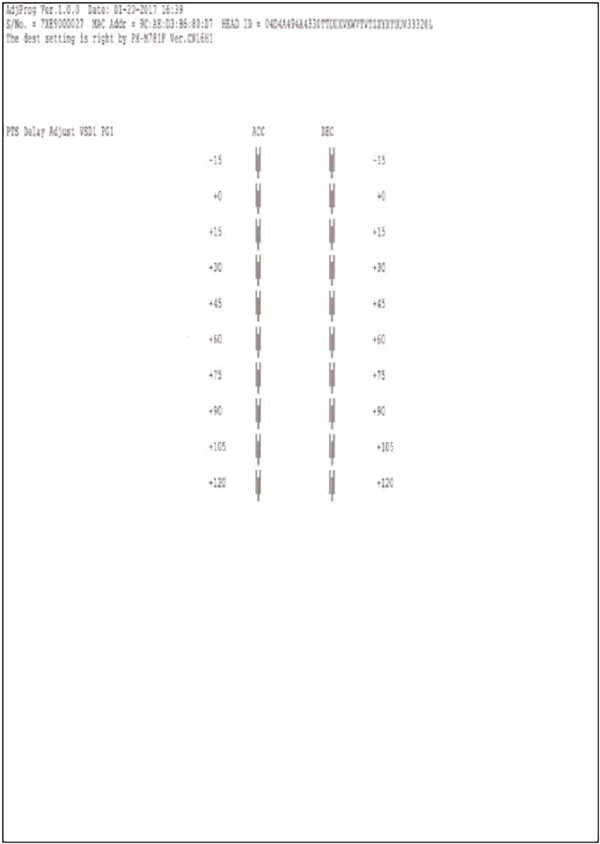

   #Adjustment pattern



   #Judgment

   Select the pattern for which there is no gap and overlapping of the left and right patterns.

   #Judgment method

   1. Start the printer in the service mode.

      • Service mode startup

   2. Select "B45 PTS Acc./Dec. Adjust" refer to "How to select an Adjustment item".

      • HOW TO SELECT AN ADJUSTMENT ITEM

   3. Load specified paper into the specified paper feed tray.

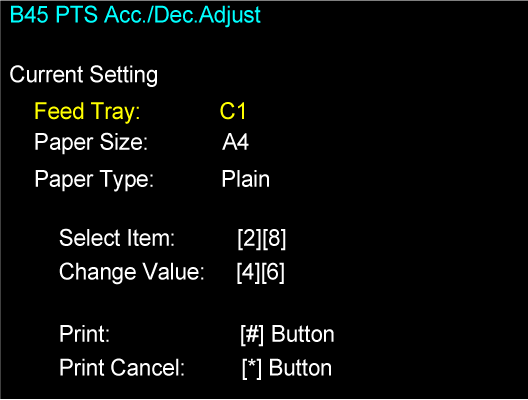

   4. Confirm the current setting and print the adjustment pattern.
      When changing the print setting, select and change the item following the instruction on the screen.


   5. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

   6. Enter the adjustment value following the instruction on the screen.



   7. Perform the completion operation to save the adjustment value to the printer.

      Check Point / チェックポイント

      If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.
