Lubrication 2
| Corresponding Part | PF Pulley |
|---|---|
| Lubricants (Part Code) | G-97 (1635441) |
| Amount | ⌀1 mm x 2 mm (two points) |
| Lubrication Tool | ⌀1 mm syringe |

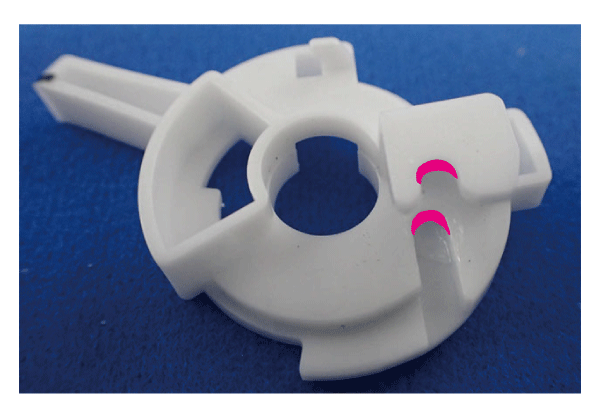

| Lubrication Manner | Apply with a syringe to the designated location on the PF pulley as shown in the figure. |
| Precautions | --- |
