# B46 BI-D ADJUSTMENT

#Overview

Use software to correct the print timing for aligning the print position between the outward path and return path when bidirectional printing is used.

#Paper and feed tray

• Paper size: A4, Letter

• Paper type: Plain paper

• Paper feed tray: Paper Cassette1st (C1) to paper cassette (C3)

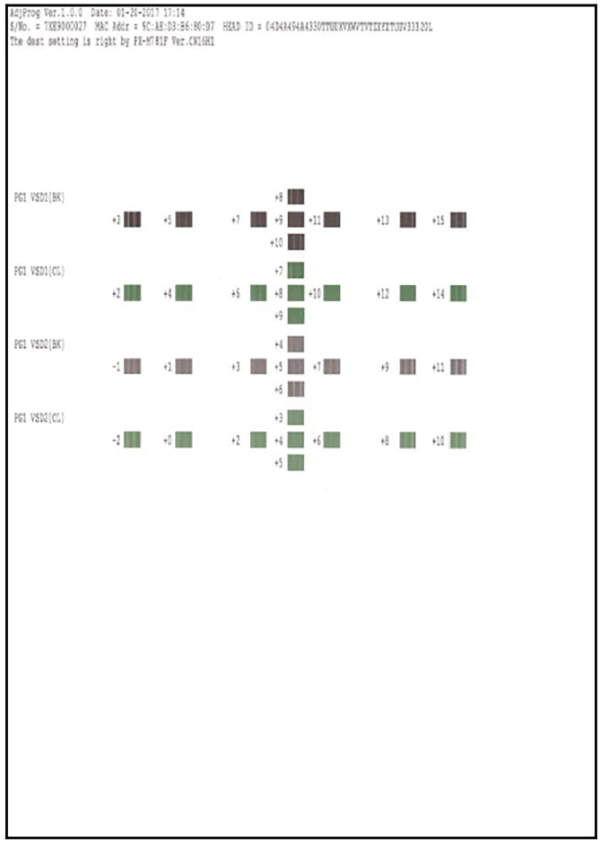

#Adjustment pattern

#Criteria

Select the pattern for which there is no gap and overlapping of the left and right patterns.

#Work Procedure

1. Start the printer in the service mode.

   • Service mode startup

2. Select "B46 Bi-D Adjust" refer to "How to select an Adjustment item".

   • HOW TO SELECT AN ADJUSTMENT ITEM

3. Load paper into the specified paper feed tray.

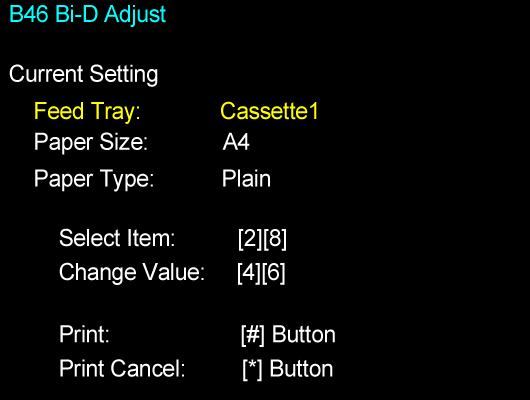

4. Confirm the current setting and print the adjustment pattern.
   When changing the print setting, select and change the item following the instruction on the screen.


5. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

6. Enter the adjustment value.




7. Perform the completion operation to save the adjustment value to the printer.

   Check Point / チェックポイント

   If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.
