Lubrication 8
| Corresponding Part | Paper Guide Front Assy |
|---|---|
| Lubricants (Part Code) | G-97 (1635441) |
| Amount | A: ⌀3 mm x 15 mm B: ⌀1 mm x 15 mm C: ⌀3 mm x 15 mm |
| Adjustment tool | A, C: ⌀3 mm syringe B: ⌀1 mm syringe |

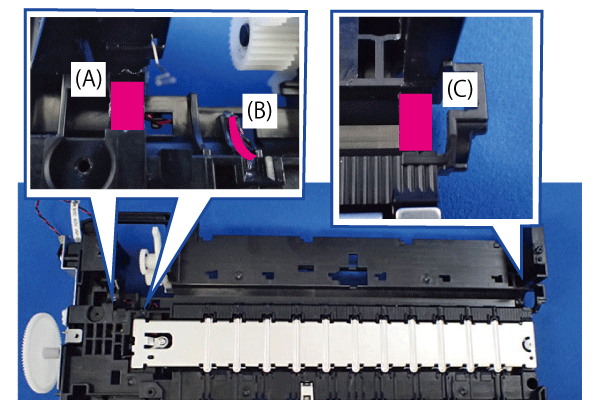

| Lubrication Manner | Apply with a syringe to the contact point between Paper Guide Front Assy and PF Roller in the figure. |
| Precautions | Rub off excess grease. |
