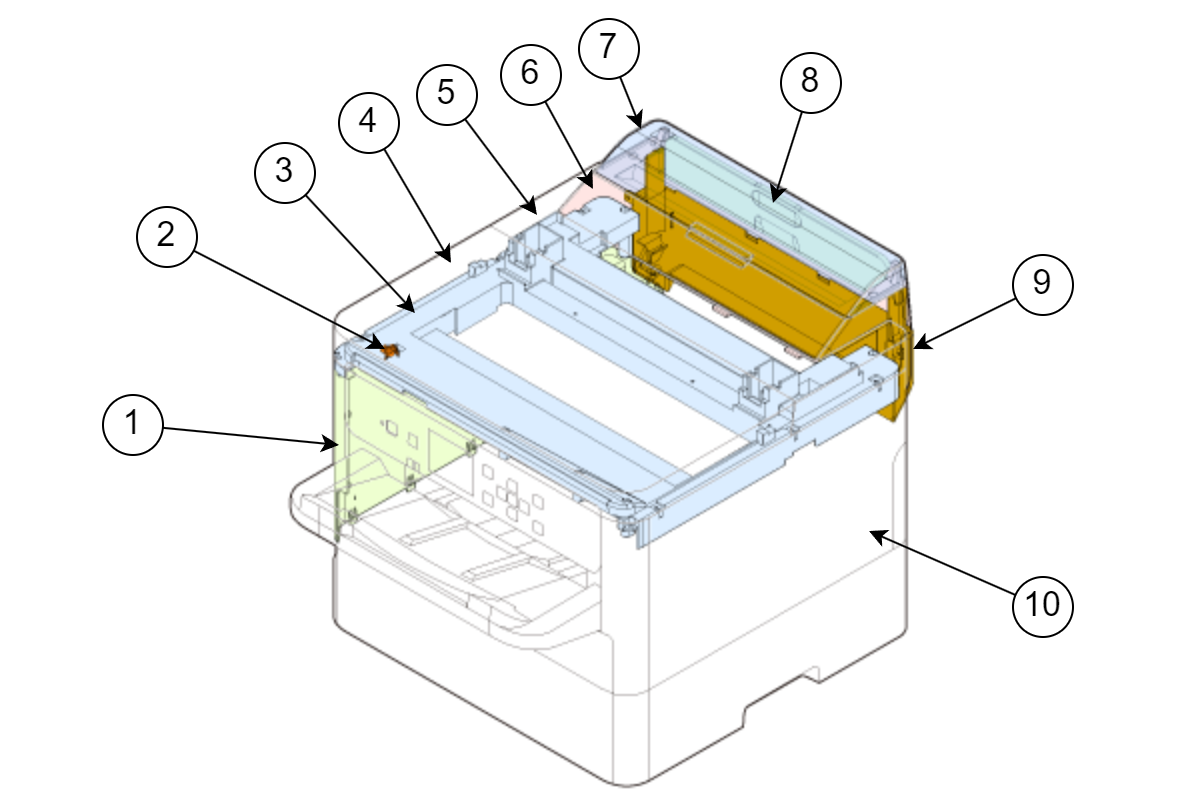

Housing (WF-C529R Series)
| Symbol | Part/Component |
|---|---|
| 1 | Housing Left |
| 2 | Printer Cover Open Sensor |
| 3 | Housing Top |
| 4 | Front Cover |
| 5 | Front Cover Retainer Plate |
| 6 | Housing Rear |
| 7 | ASF Cover |
| 8 | Paper Support |
| 9 | Rear Back Cover |
| 10 | Housing Right |
