Scanner

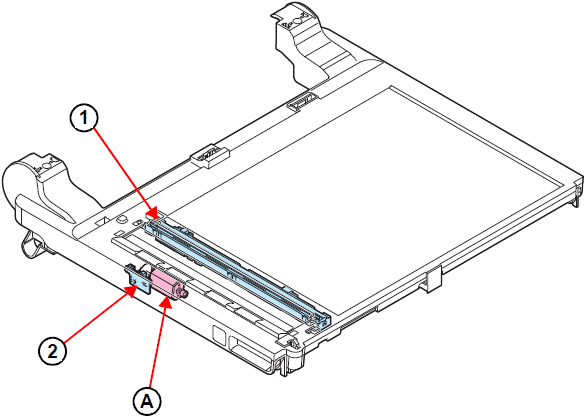

Motors and sensors

No.

Name

Function

Type

A

SCN Motor

Used for driving the scanner carriage.

DC motor

(42VDC±5%)

1

CIS Module

Used to read the document on the scanner glass.

CIS imaging sensor

2

SCN Encoder

Used for scanner motor operation control.

Transmissive photo-interrupter

(3.3VDC±5%)
