CR Scale (WF-C529R Series)

  1. Remove the Rear Unit (A).
  2. Remove the two screws that secure the ASF Cover Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  3. Remove the four screws that secure the Rear Back Cover (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  4. Remove the Rear Back Cover (A) downward.

    Assembly / 組み立て

    Attach the two dowels of the Rear Back Cover (A) to the positioning holes on the Housing Left (B) and the Housing Right (C).
  5. Remove the ASF Cover Assy (A) in the direction of the arrow.

    Assembly / 組み立て

    Insert the four tabs of the ASF Cover Assy (A) to the positioning holes of the Front Cover Retainer Plate.
  6. Remove the two screws securing the Front Cover Retainer Plate (A).


    • : C.B.P-TITE-SCREW-3x10-F/ZN-3C
  7. Open the Printer Cover (A) and remove the four screws, and then remove the Front Cover Retainer Plate (B).


    • : C.B.P-TITE-SCREW-3x10-F/ZN-3C
  8. Remove the Front Cover (A) upward.
  9. Disengage the hook, and remove the Maintenance Box Cover (A).
  10. Remove the three screws that secure the Housing Right (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  11. Remove the two screws that secure the Housing Right (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  12. Lift the Housing Right (A) to release the two hooks on the front side of the Housing Right (A), then remove the Housing Right (A).


    Assembly / 組み立て

    Insert the four tabs of the Housing Right (A) to the positioning holes on the Ink Supply Unit (B).
  13. Remove the three screws that secure the Housing Left (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  14. Remove the two screws that secure the Housing Left (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  15. Lift the Housing Left (A) to release the two hooks each on the front side and rear side of the Housing Left (A), and then remove the Housing Left (A).


    Assembly / 組み立て

    Insert the four tabs on the Housing Left (A) to the positioning holes of the Ink Supply Unit (B).
  16. Remove the six screws, then remove the Housing Upper (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

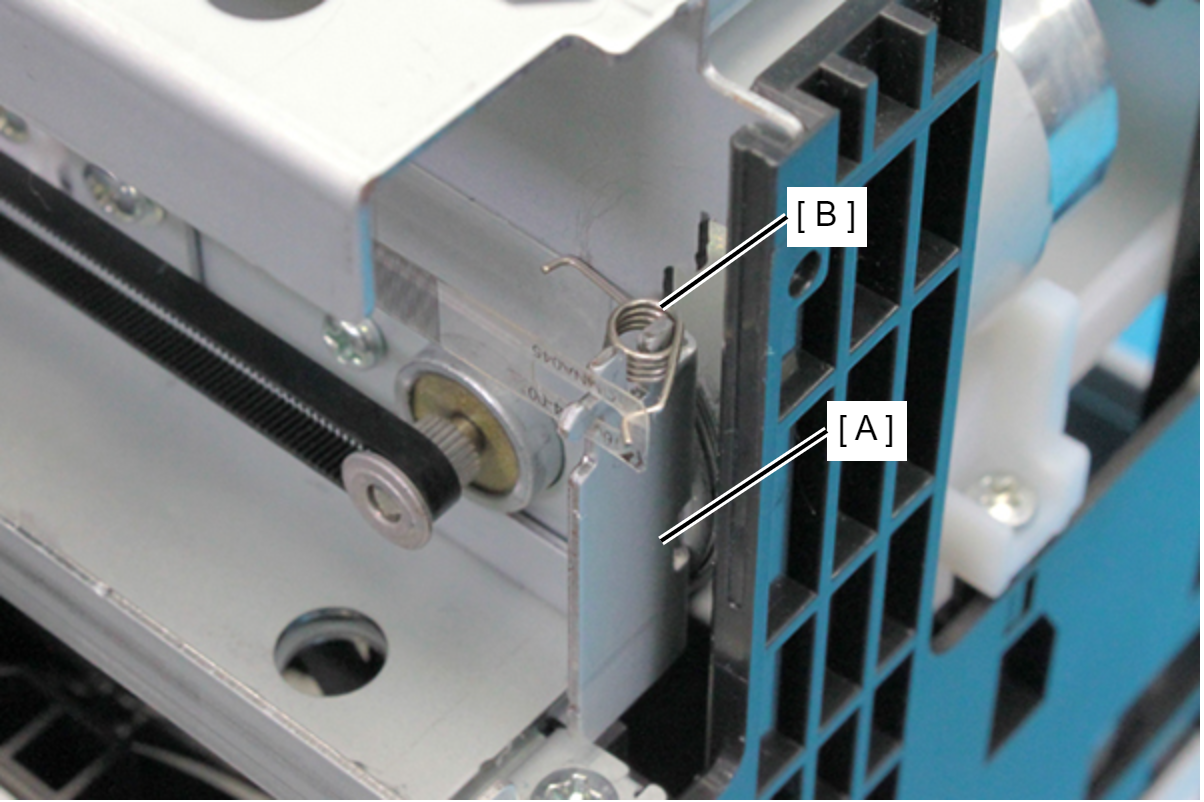

  17. Remove the CR Scale Torsion Spring (B) from the CR Scale (A).

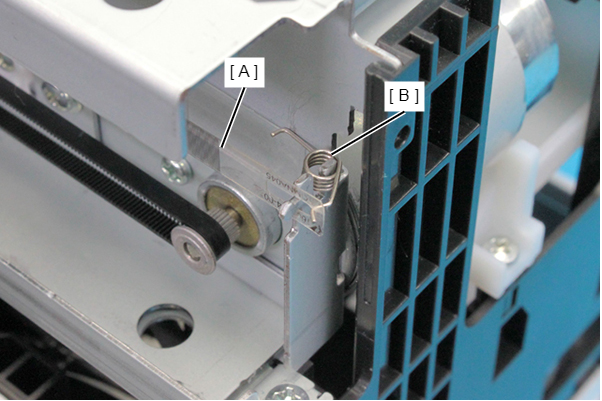

  18. Remove the CR Scale Torsion Spring (B) from the Main Frame (A).

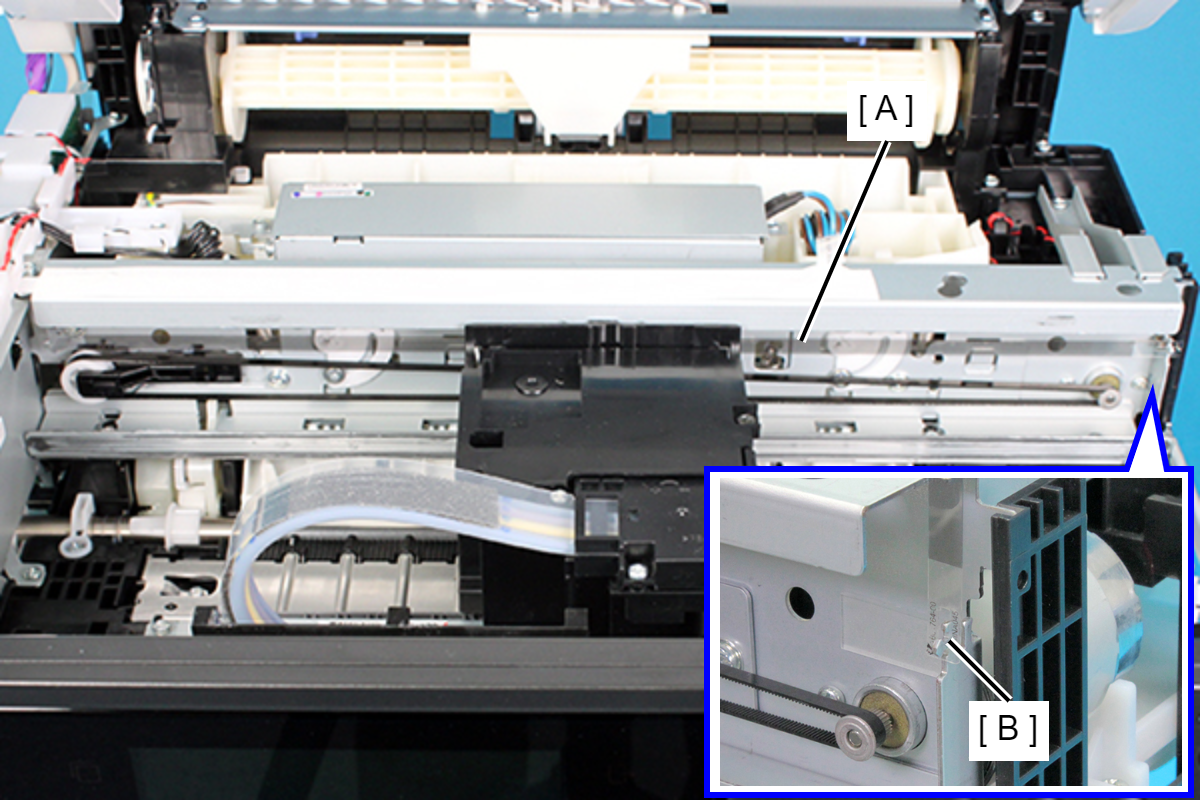

  19. At the full side, remove the CR Scale (A) from hook (B) on the frame.

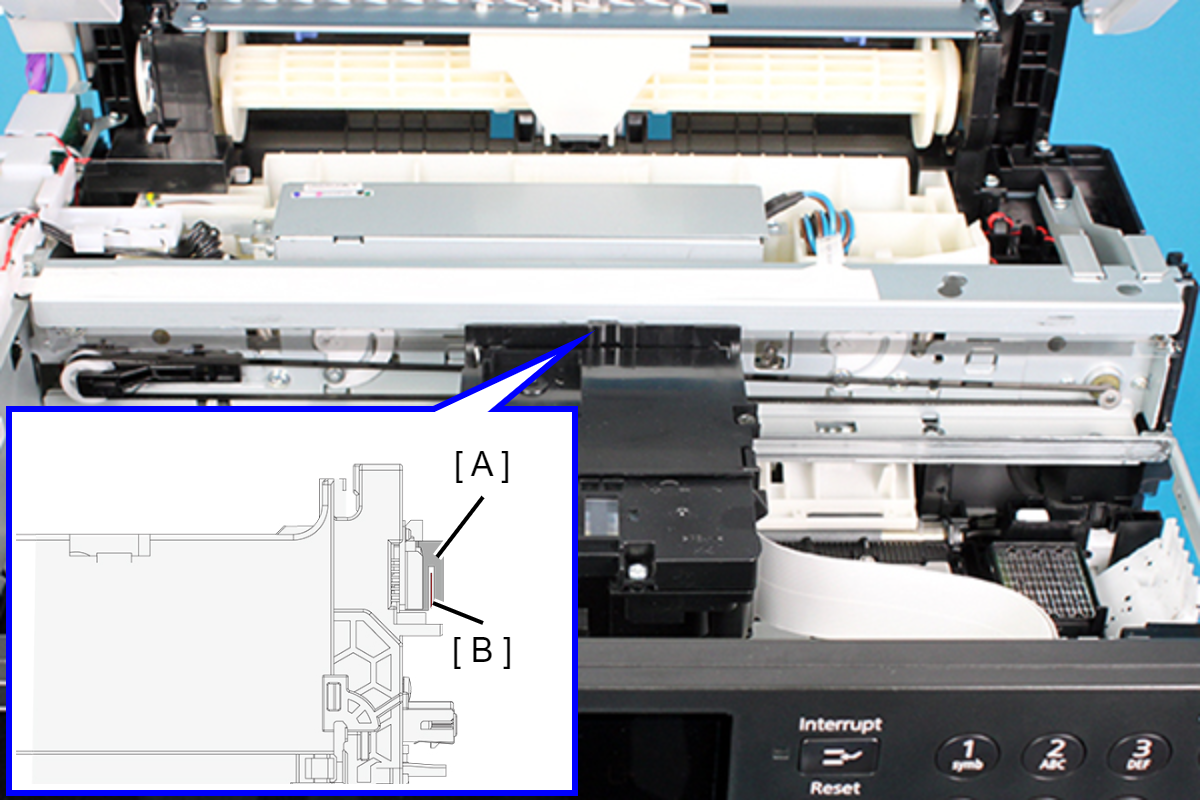

  20. Pull the CR Scale (B) out from the CR Encoder Sensor (A).

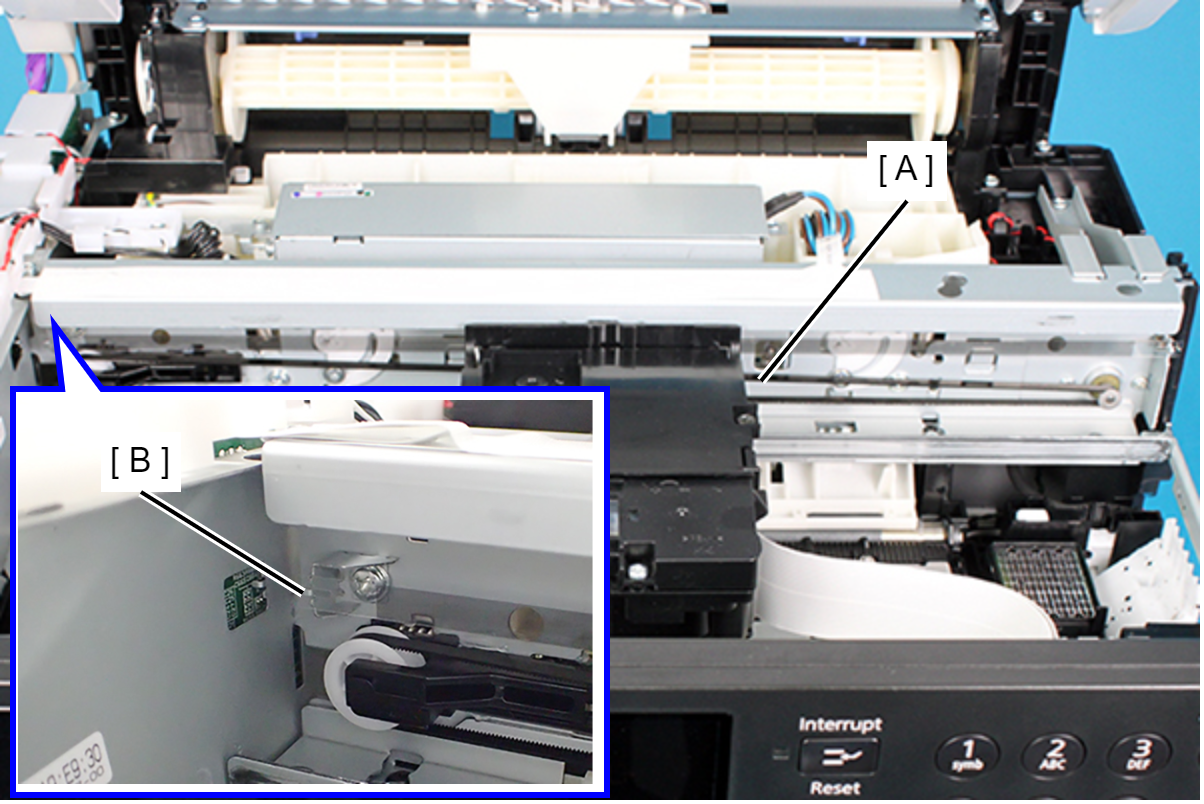

  21. At the home side, turn the CR Scale (A) 90 degrees upward, and remove it from the hook (B) on the frame.


    Assembly / 組み立て

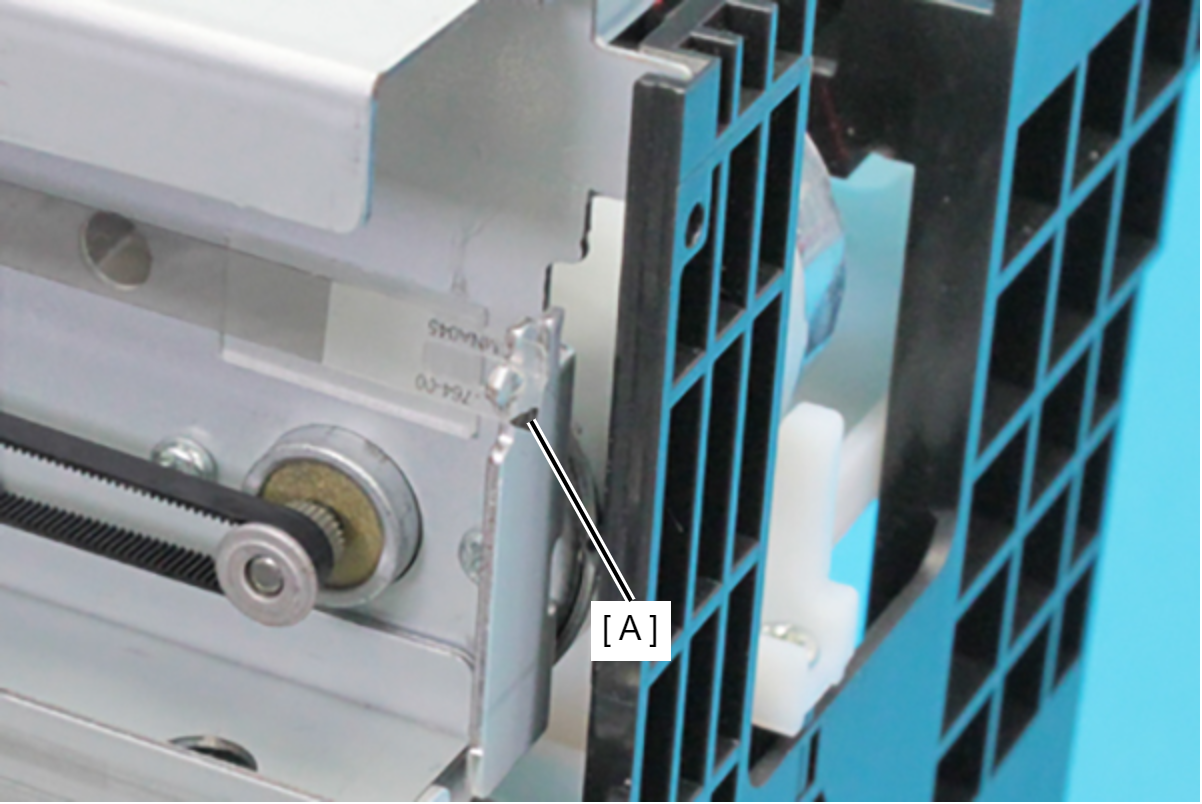

    • Attach the CR Scale with the marking (A) on the bottom right corner.

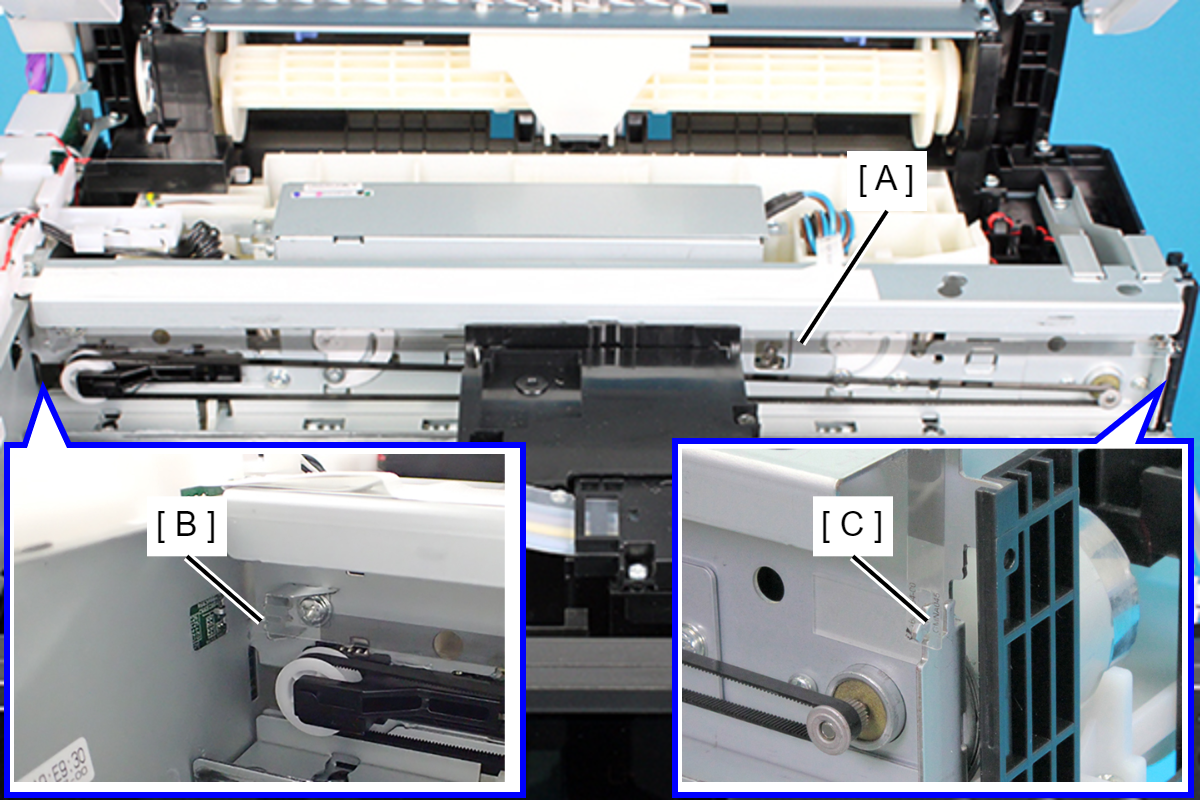

    • When attaching the CR Scale (A), make sure to engage it with the hook (B) on the full side frame first, then engage it with the hook (C) on the home side frame.
