Drawer Upper Connector

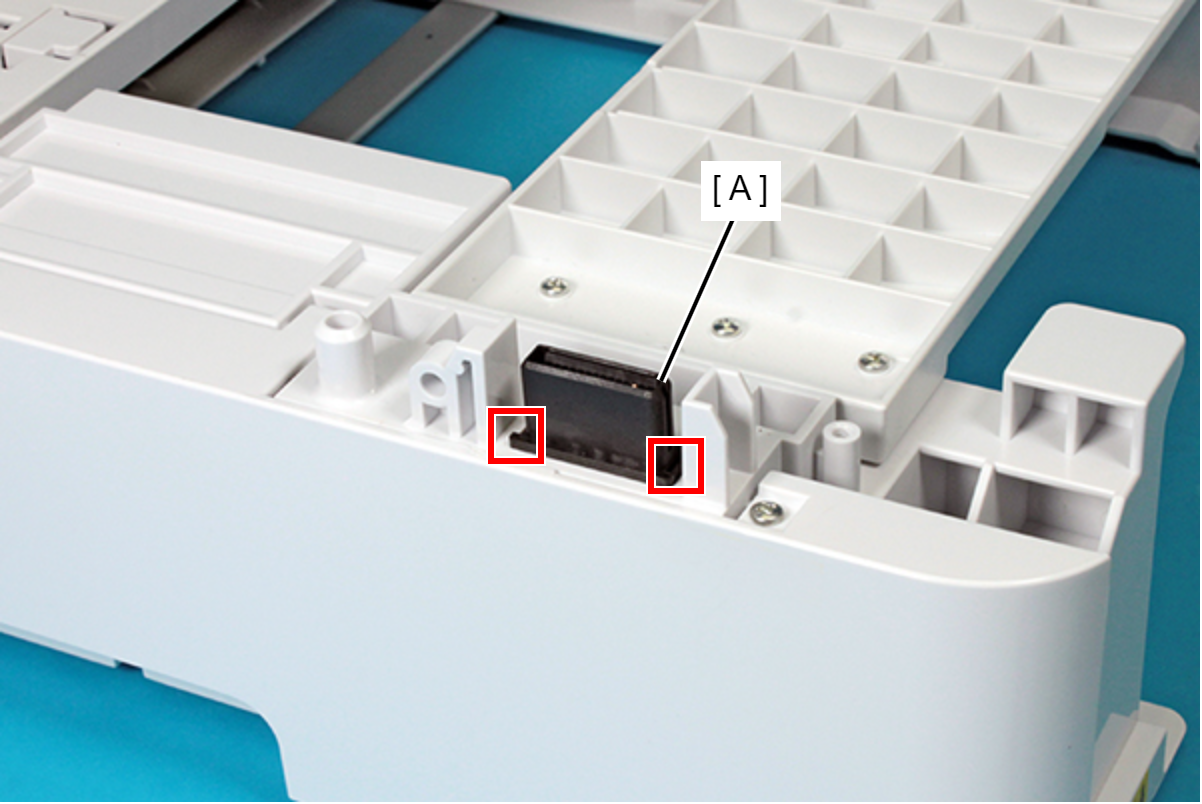

  1. Disengage the hooks (x2) by using a precision screwdriver, etc., and then remove the Drawer Upper Connector (A) from the frame.

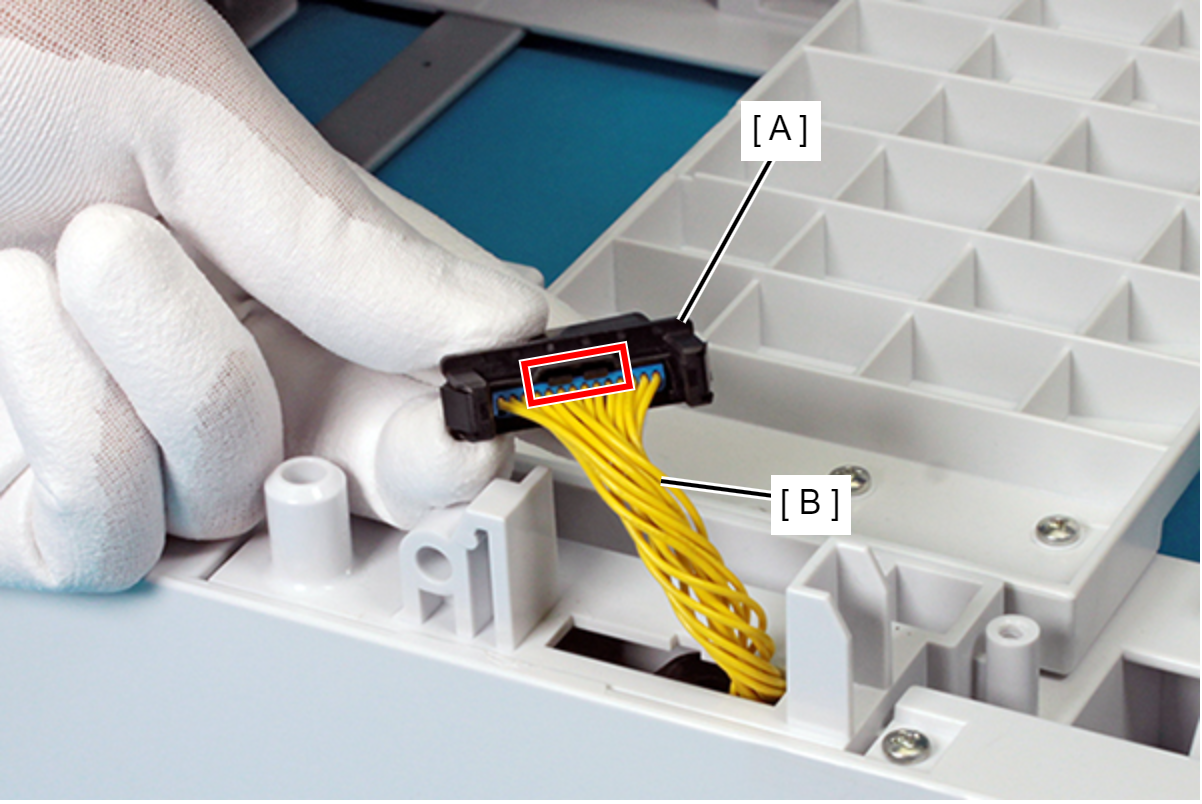

  2. Disengage the hooks (x2) of the Drawer Upper Connector (A), remove the connectors on the Drawer Connector cable (B), and then remove the Drawer Upper Connector (A).
