Removing the Ink Pack

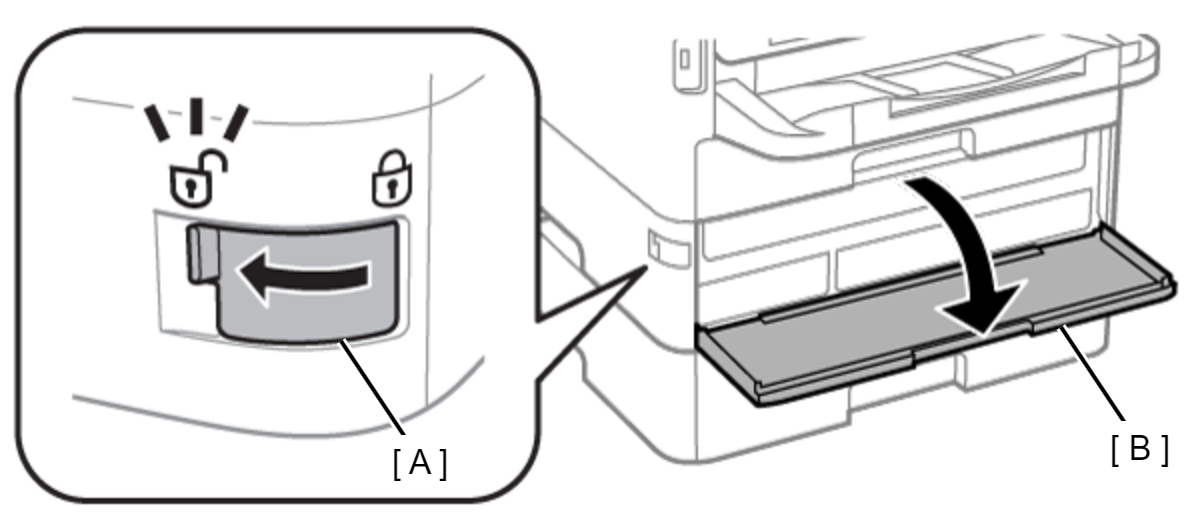

- Move the Lock Lever (A) in the direction of the arrow, then open the Ink Supply Unit Front Cover (B).

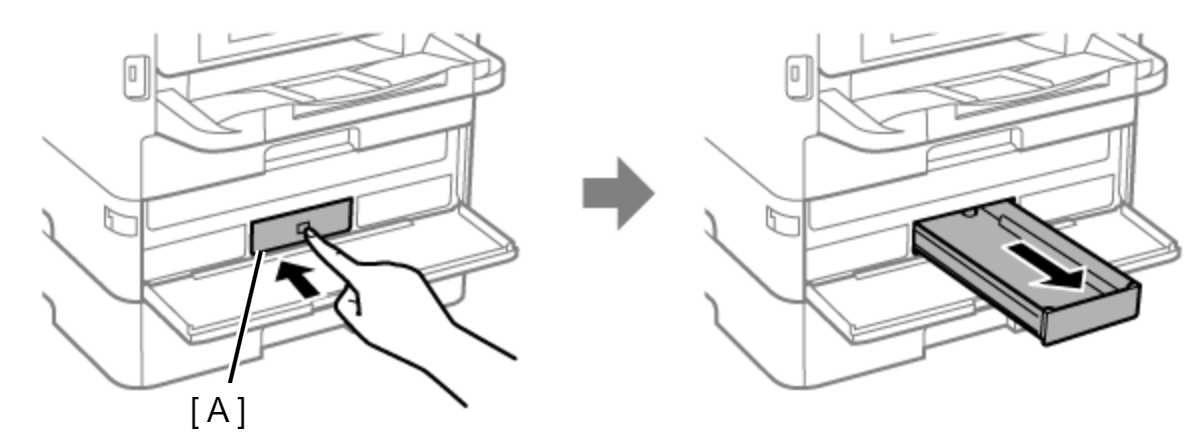

- Push the Ink Pack Tray (A), then remove it.

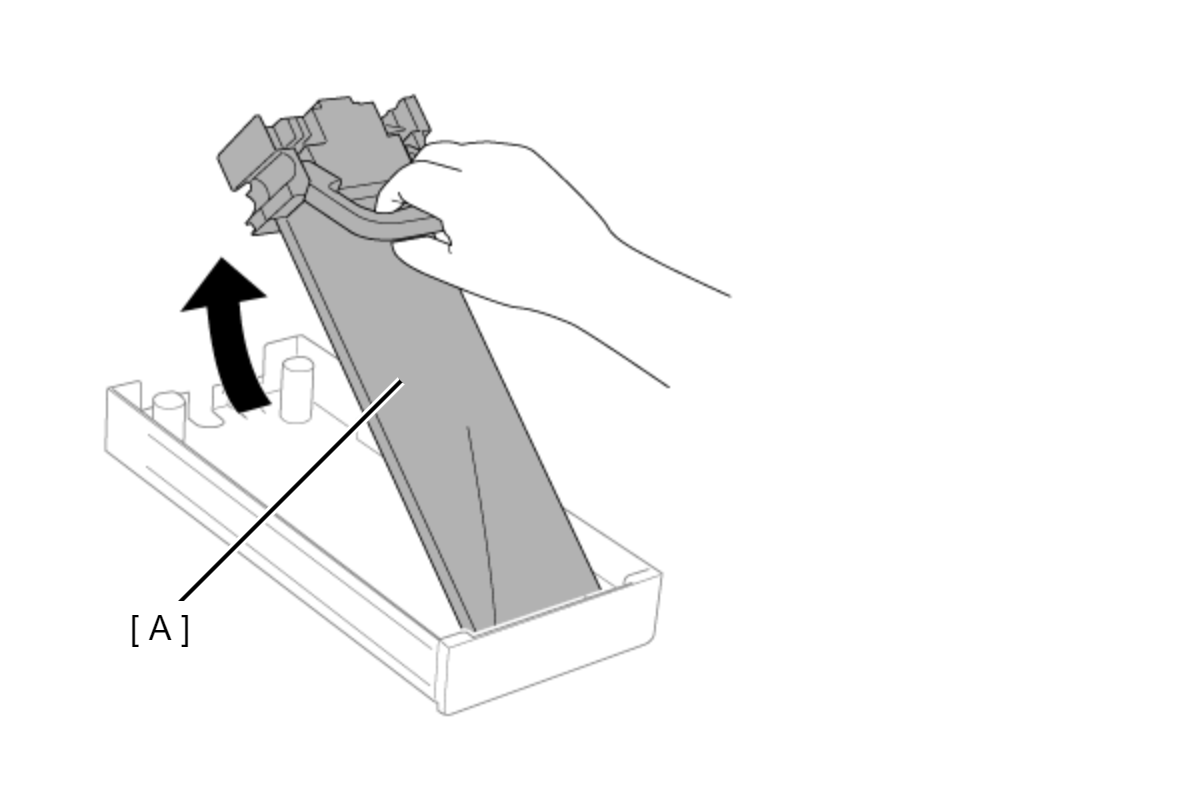

- Remove the Ink Pack (A).
