# Housing Rear

1. Remove the Rear Unit (A).

2. Remove the two screws that secure the ASF Cover Assy (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
3. Remove the four screws that secure the Rear Back Cover (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
4. Remove the Rear Back Cover (A) downward.



   Assembly / 組み立て

   Attach the two dowels of the Rear Back Cover (A) to the positioning holes on the Housing Left (B) and the Housing Right (C).

5. Remove the ASF Cover Assy (A) in the direction of the arrow.



   Assembly / 組み立て

   Insert the four tabs of the ASF Cover Assy (A) to the positioning holes of the Front Cover Retainer Plate.

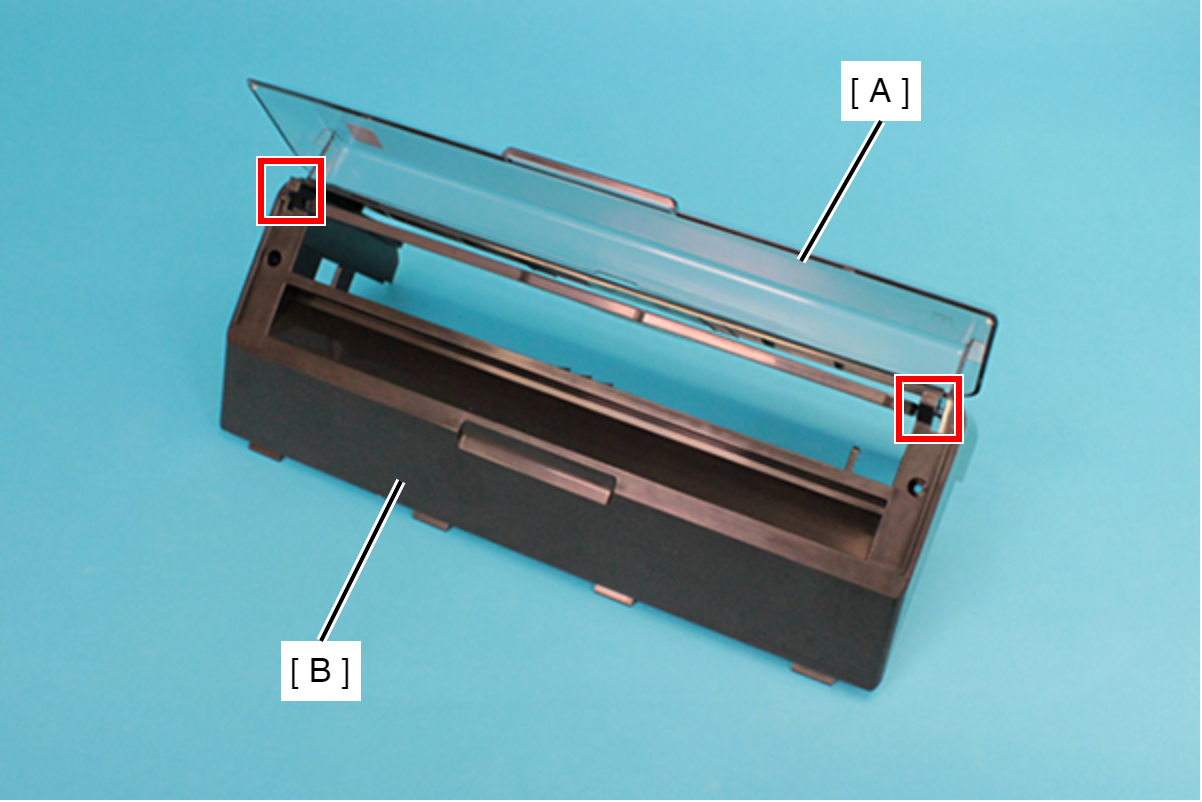

6. Disengage two shafts of the ASF Cover (A) from the holes of the Housing Rear (B), then remove the ASF Cover (A).

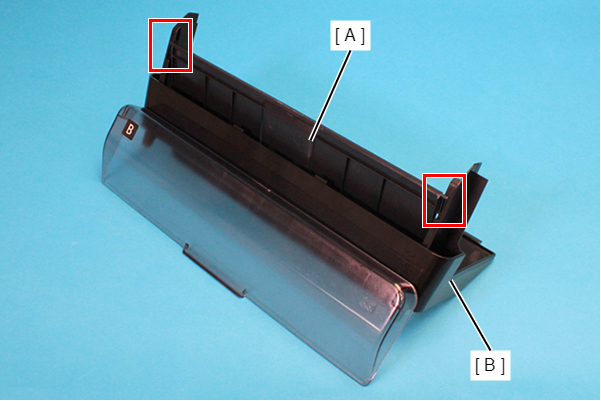

7. Release the two tabs of the Paper Support (A) from the grooves on the Rear Housing (B), then remove the Paper Support (A).

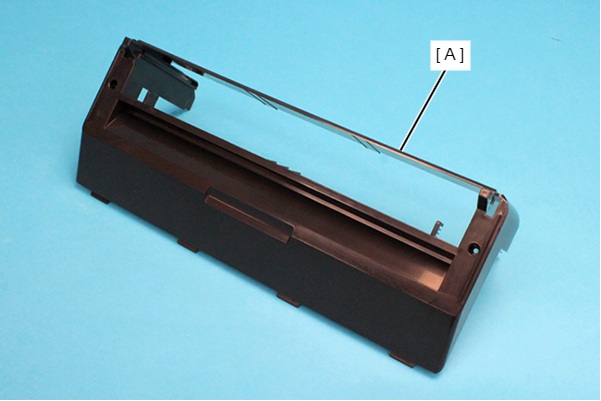

8. Housing Rear (A)
