Ink Pack Tray BK/Ink Pack Tray CL

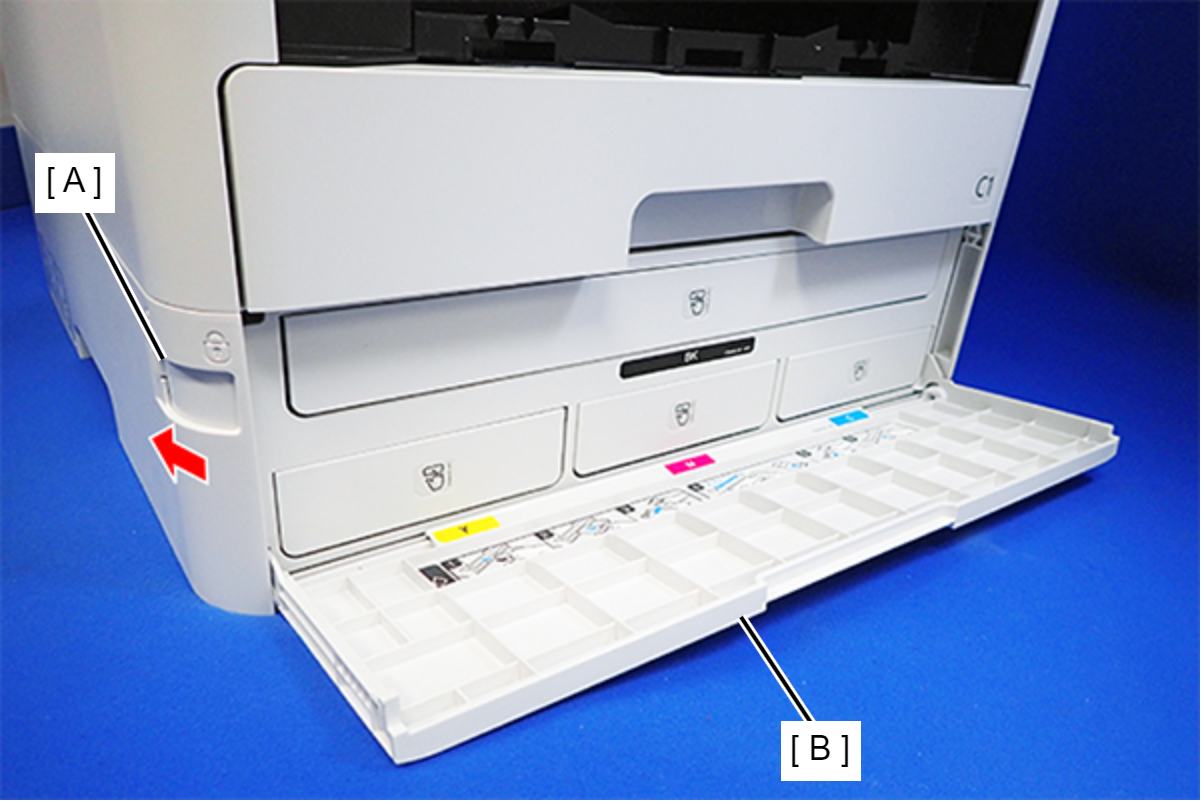

- Move the Lock Lever (A) in the direction of the arrow, then open the Ink Supply Unit Front Cover (B).

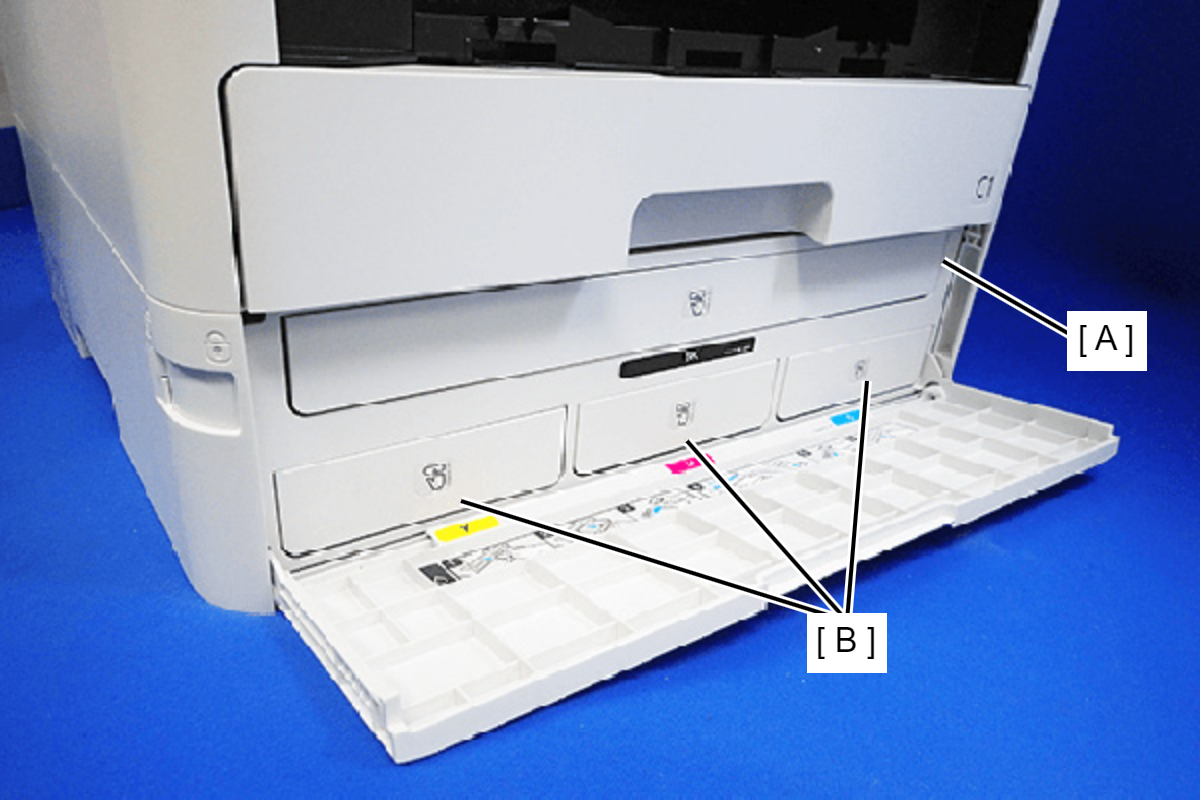

- Push the Ink Pack Tray BK (A) and Ink Pack Tray CL (B), then remove them.
