# AFTER REPAIR ADJUSTMENT [B82] (INK SYSTEM ASSY)

1. Start service support mode.
   • Service mode startup and operating procedures
2. Select “Adjustment Main Unit: MENU” from the service support mode top menu.

3. Select “Ink System Assy: MENU” - “After Repair Adjustment”.

   Check Point / チェックポイント

   Select and execute the corresponding adjustment item using either procedure below.

   • Selecting by entering the program number
   1. Select “Input B No.-Main Unit Adjust” from the Adjustment menu.
   2. Press the [#] button and software number key is displayed on LCD. Enter programnumber “82”.
   3. Press the [#] button.
   • Selecting from menu
   1. Select “Main Parts Adjust: MENU” from the Adjustment Main Unit menu.
   2. Select “Ink System Assy: MENU” from the Main Parts Adjust menu
   3. Select “Ink System Assy: MENU” - “After Repair Adjustment”.

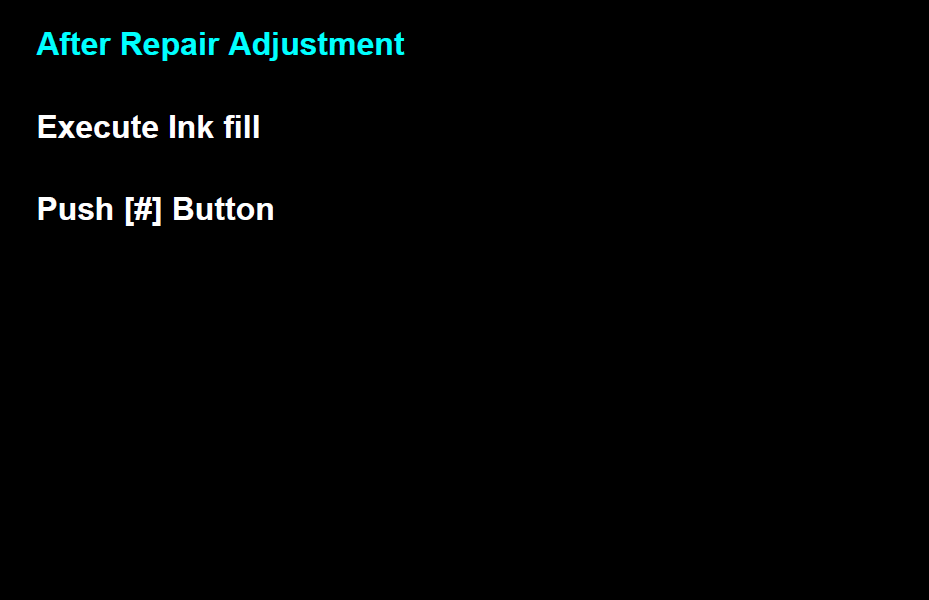

4. In the following screen, press the [#] button to perform the Mainte Unit Replace Sequence.

5. After performing ink filling, the screen in the following appears.

6. Load paper into the paper feed tray.
7. Press the [#] button to print the check patterns.

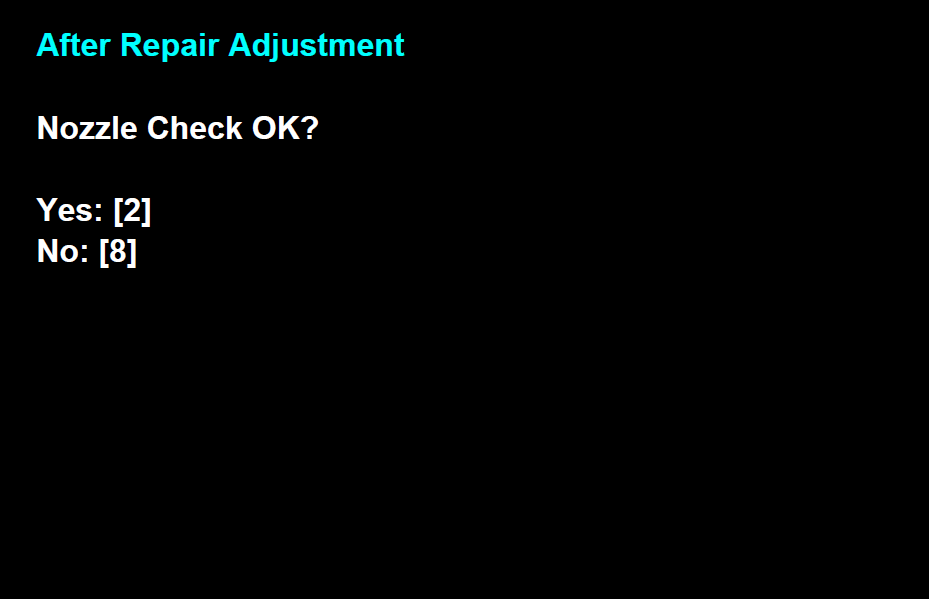

8. When the screen in the following appears, check the nozzle check result. If there is no problem, press the [2] button to end the I/S Unit Replace Sequence.
