Rear ASF Upper Cover Sub

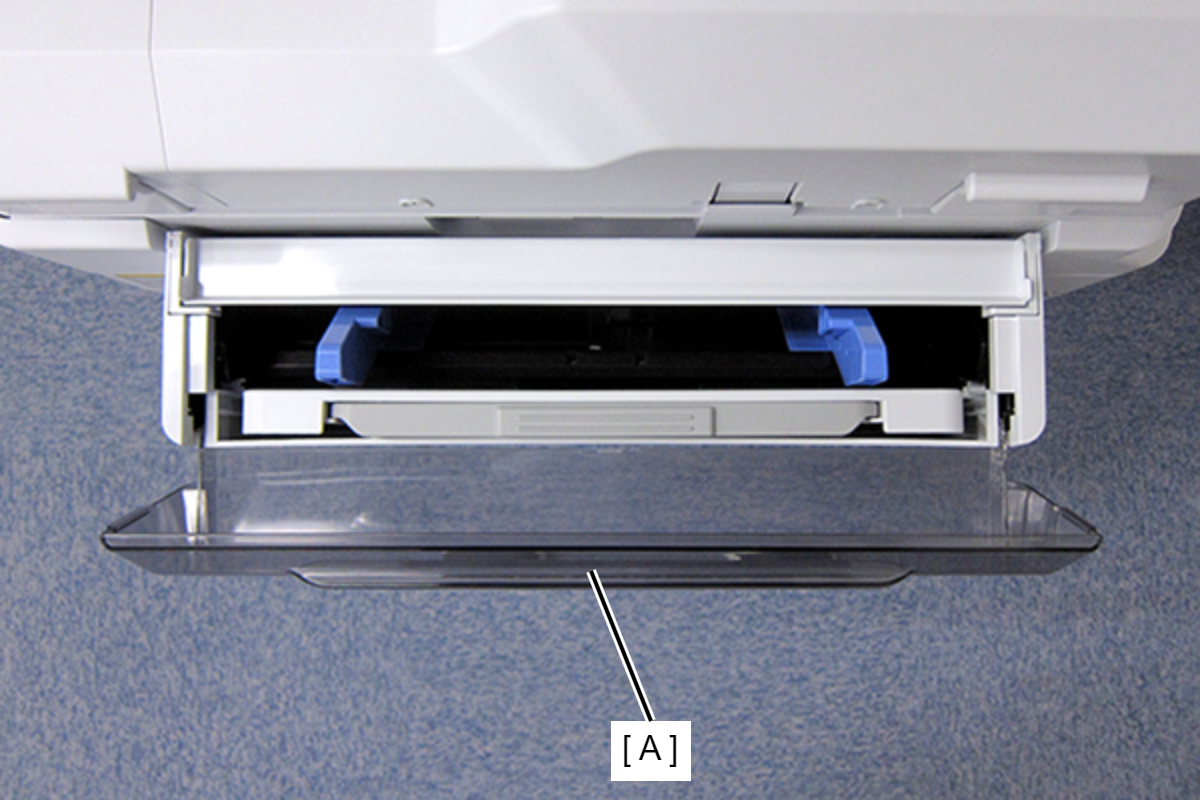

- Open the Rear ASF Upper Cover (A).

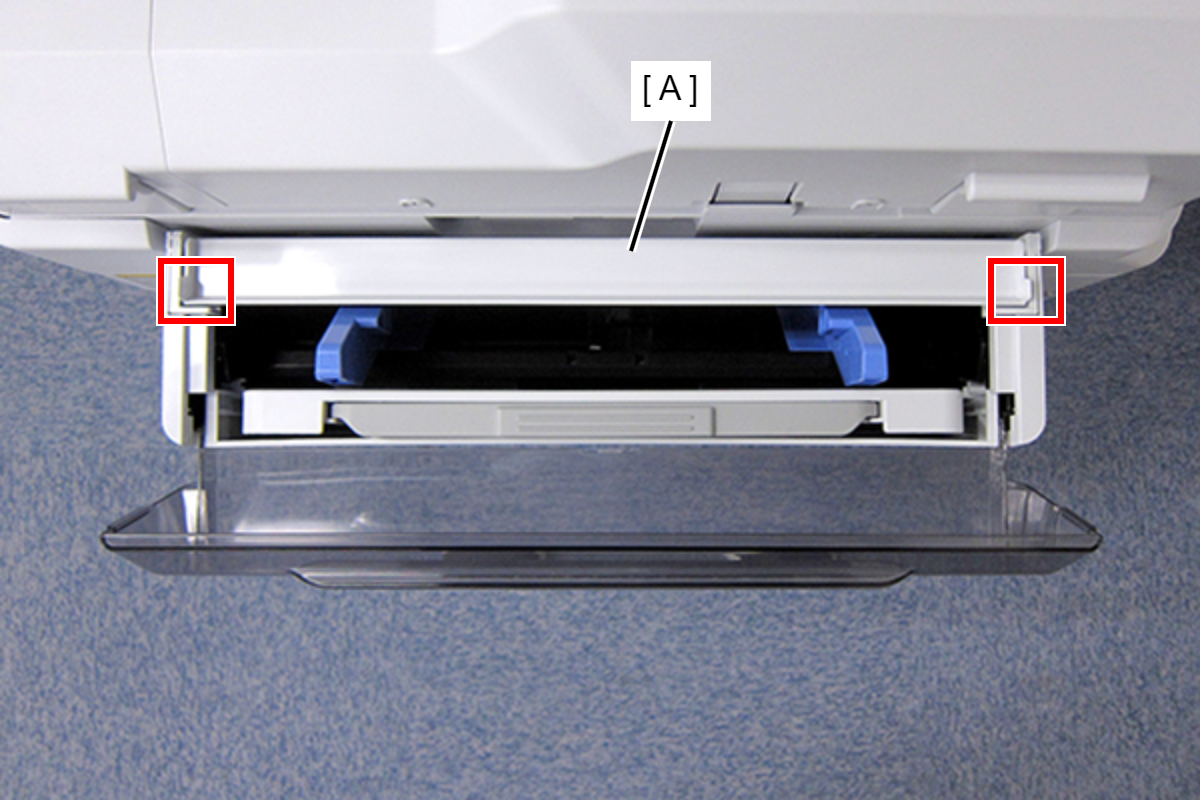

- Release the two Dowels while bending the Rear ASF Upper Cover Sub (A) and remove the Rear ASF Upper Cover Sub (A).
