I/F Port Unit

  1. Remove the three screws, then remove the Left Housing Assy (A) toward the rear of the product.

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  2. Remove the two screws, and remove the I/F Housing Bracket (A).
    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  3. Remove the two screws, then remove the Rear ASF Unit (A).

    • : C.SHOULDER S-TITE,3X5

  4. Remove the cable from the connector (CN7) (B) of the I/F Port Assy (A) while releasing the hook.

  5. Remove the cable from the connectors (CN5, CN6) (B) of the I/F Port Assy (A).


  6. Remove the four screws, and remove the I/F Port Assy (A).

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C

      Assembly / 組み立て

      CN6: USB cable with white marking or white tape: Connect to "WH".

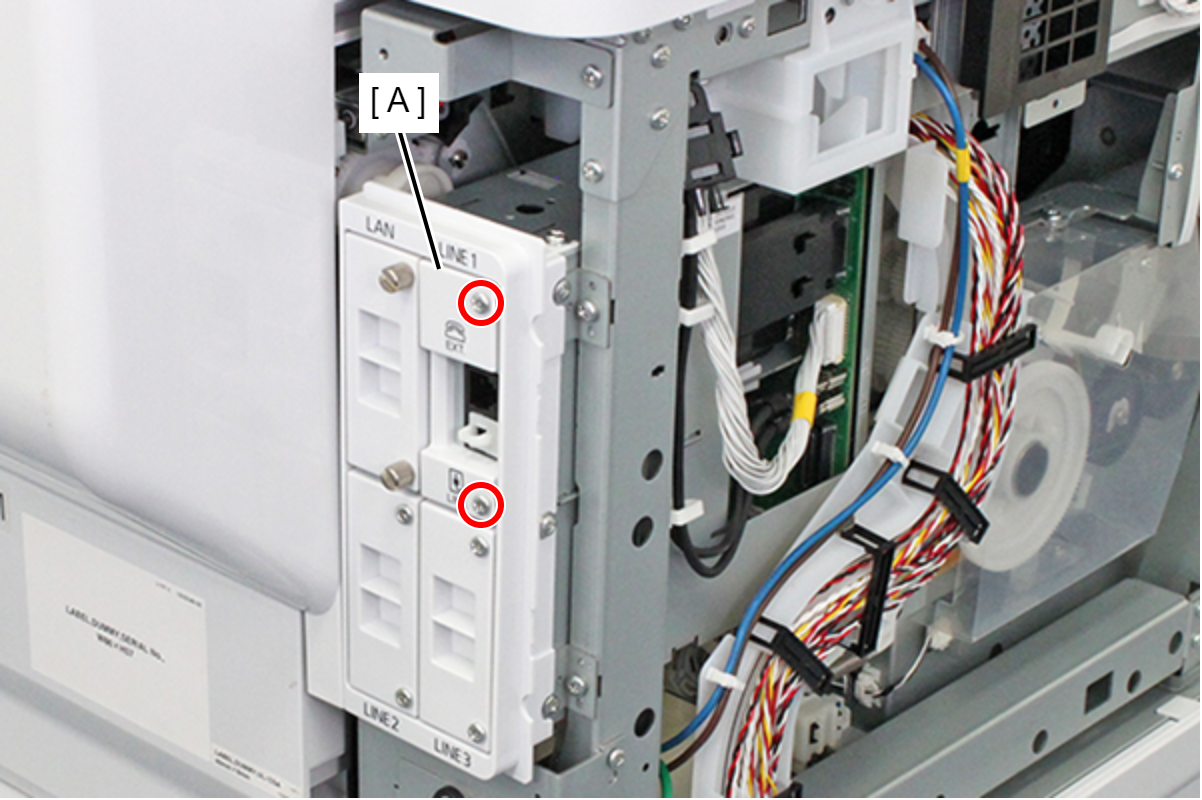

  7. Remove the two screws, and remove the FAX Assy (A).

    • : C.B.S-TITE-SCREW-3x14-F.ZN-3C

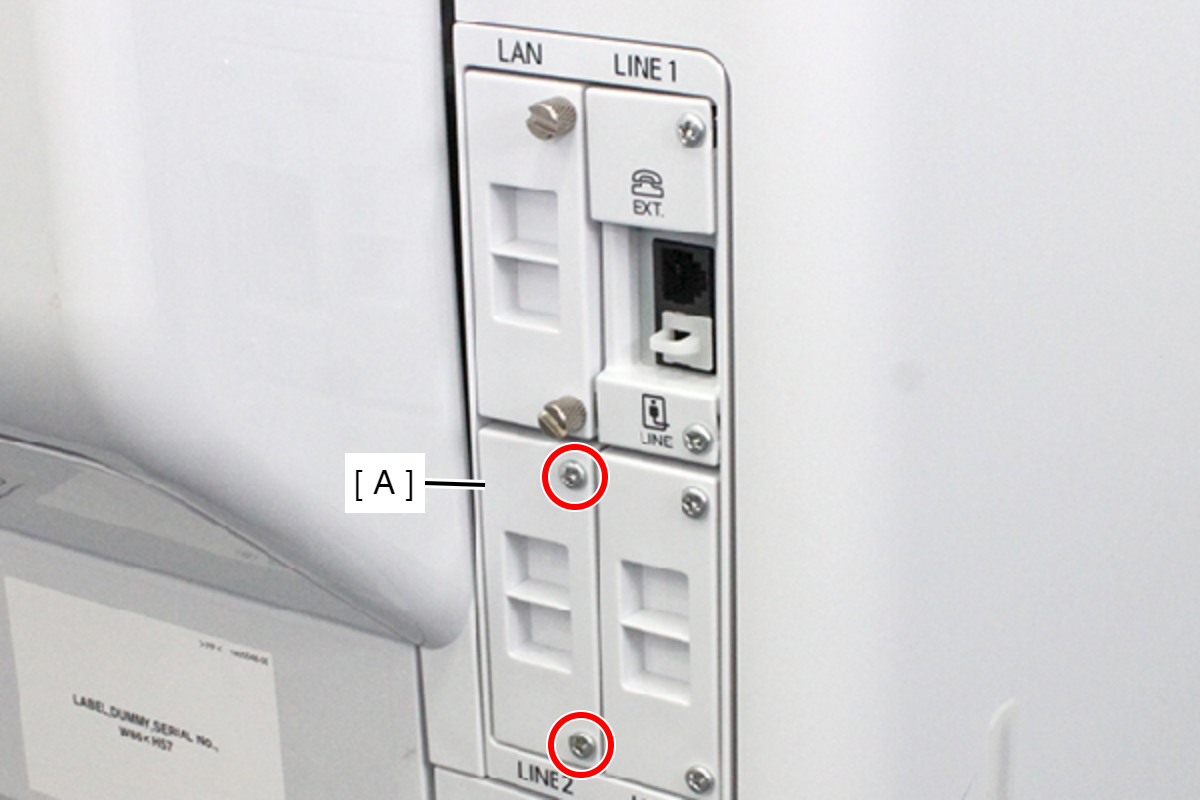

  8. Remove the two screws, and remove the I/F FAX Cover Assy (A).
    • : C.B.S-TITE-SCREW-3x14-F.ZN-3C

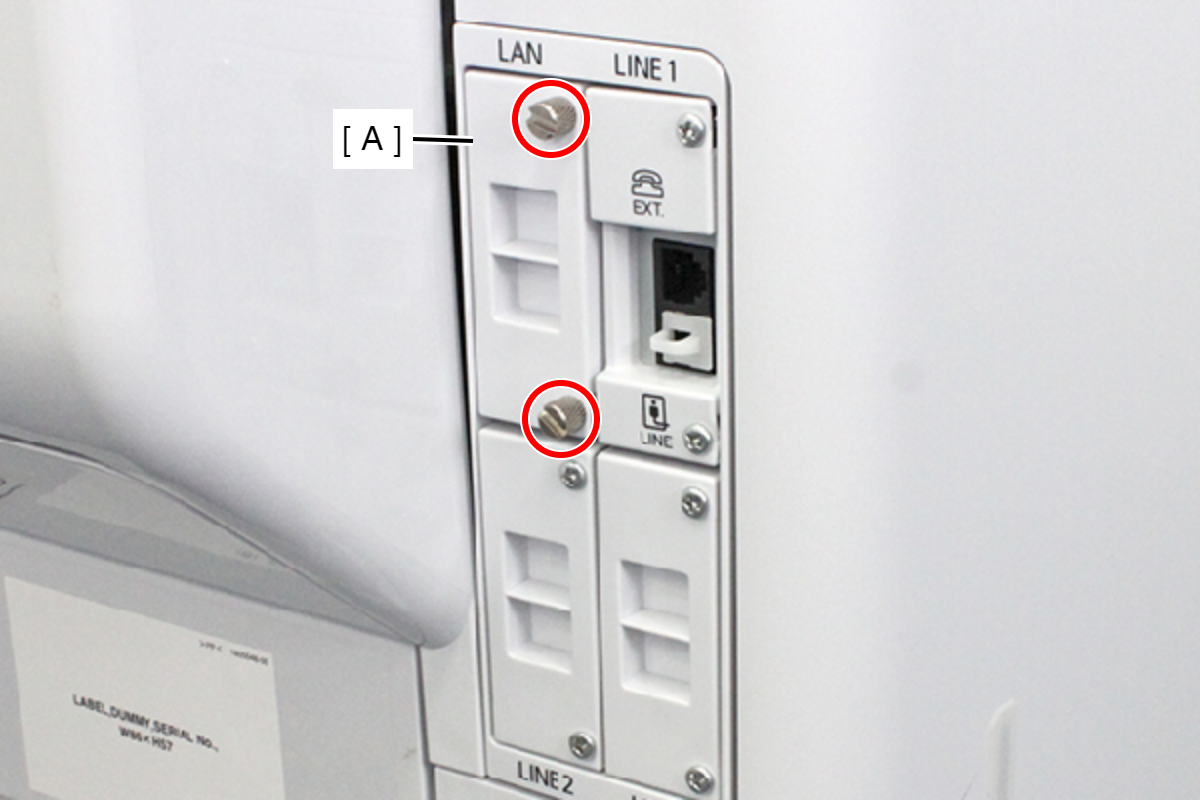

  9. Rotate the two screws fastening the I/F Option Cover Assy (A) until they completely spin freely.

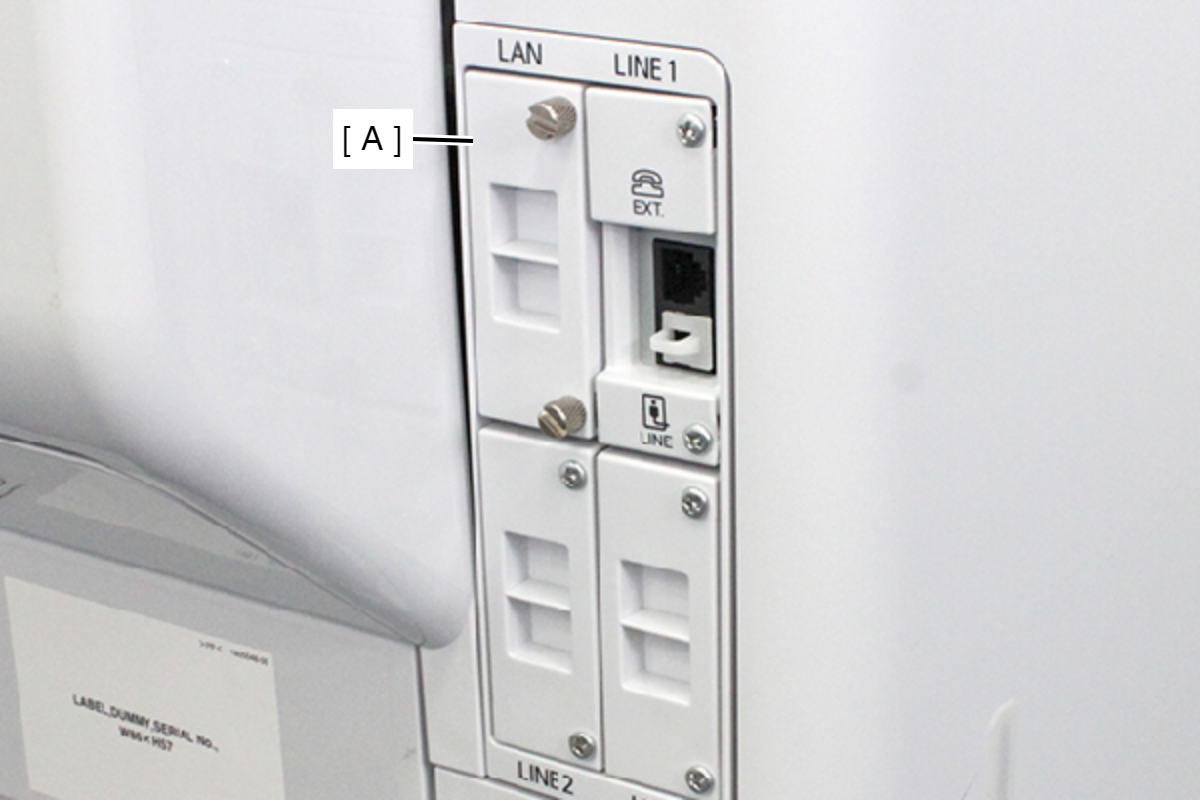

  10. Remove the I/F Option Cover Assy (A).

    Check Point / チェックポイント

    Because the screws are captive screws, they do not come off.

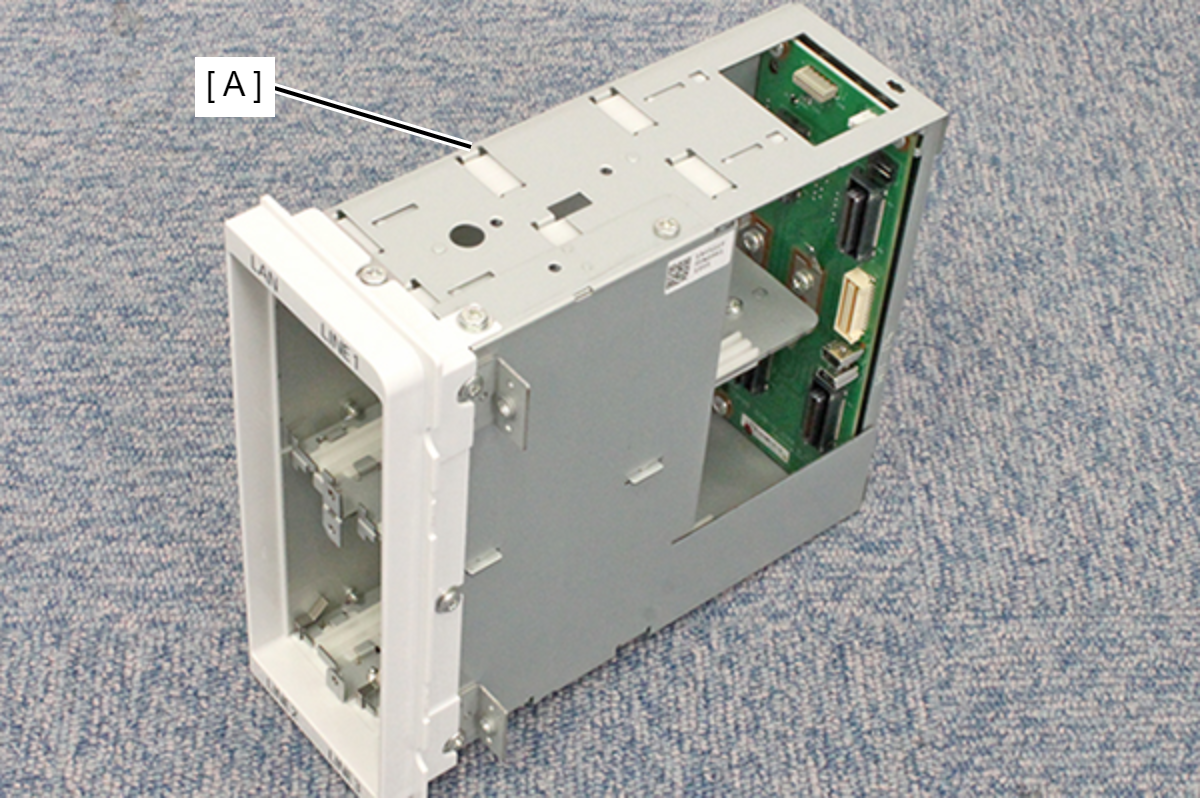

  11. Remove the I/F Port Unit (A).
