PE ADJUST [ASF: B52][REAR ASF: B53]

Paper and Feed Tray
  • Paper Size: A4
  • Paper Type: Plain Paper
  • Feed Tray
    • Front paper loading Paper cassette (1) to paper cassette (4)
    • Rear Feed Rear tray
Adjustment pattern

Judgment

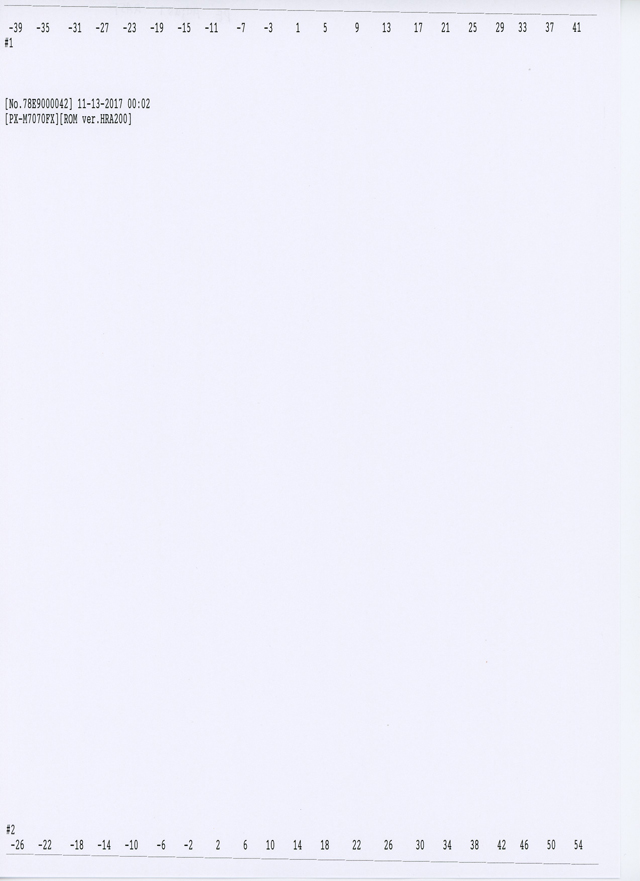

From the stepped patterns printed on the top and bottom edges (the bottom edge is for rear paper feeding only) of the paper, select the numerical value that is 5 mm from the edge of the paper for each of them.

Adjustment procedure
  1. Start service support mode.
  2. Select “Adjustment Main Unit: MENU” from the service support mode top menu.

  3. Select “PW Sensor Correct”.

    Check Point / チェックポイント

    Select and execute the corresponding adjustment item using either procedure below.
    • Selecting by entering the program number
    1. Select “Input B No.-Main Unit Adjust” from the Adjustment menu.
    2. Press the [#] button and software number key is displayed on LCD. Enter program number.
      PE Adjust (ASF): 52
      PE Adjust (Rear ASF): 53
    3. Press the [#] button.
    • Selecting from menu
    1. Select “Individual Adjustment: MENU” from the Adjustment menu.
    2. Select “Printing Adjust:MENU” from the Individual Adjustment menu.
    3. Select the paper feed direction from the Printing Adjust menu.
      • B52 PE Adjust (ASF):
      • B53 PE Adjust (Rear ASF):

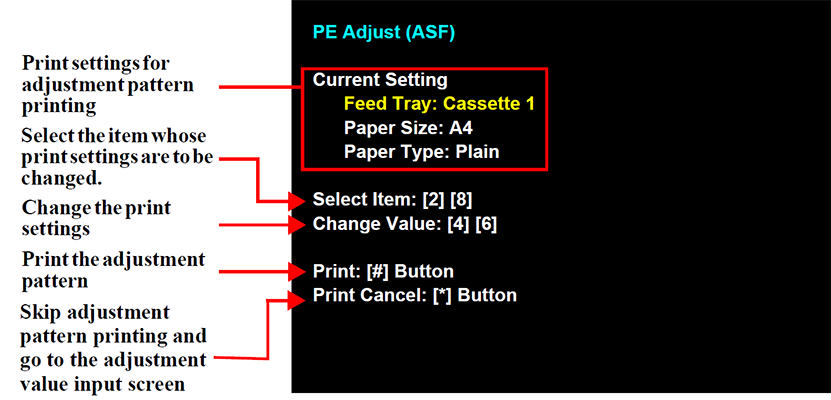

  4. The following screen will be displayed.
  5. Load paper into the paper feed tray.
  6. Press the [#] button to print the adjustment pattern.

  7. Check the adjustment pattern.

  8. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

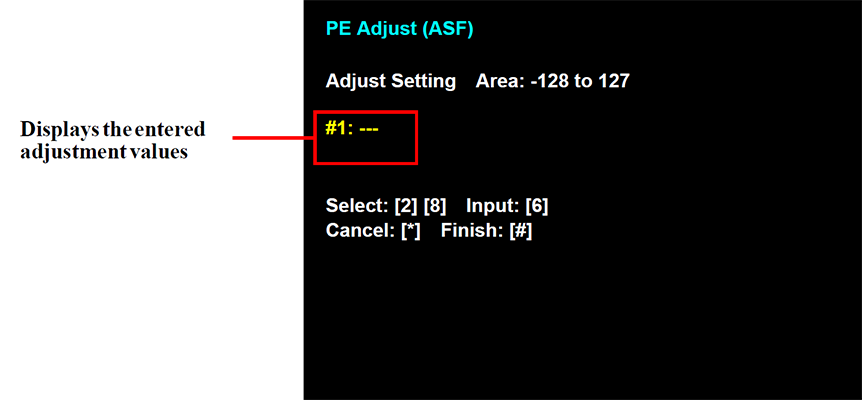

  9. Input a adjustment value.

    Check Point / チェックポイント
    • Operation method is belows.
      • [6] Button:  Displays the adjustment value input screen
      • [2] button, [8] button: Select the number
      • [#] Button: Finishes adjustment and inputs the adjustment values.

    • In the adjustment value input menu, the software number key is displayed

  10. Check that an adjustment value is entered for all of the adjustment input items and then press the [#] button to end adjustment.

  11. The adjustment end screen appears. Press the [#] button to return to the menu screen.

    Check Point / チェックポイント

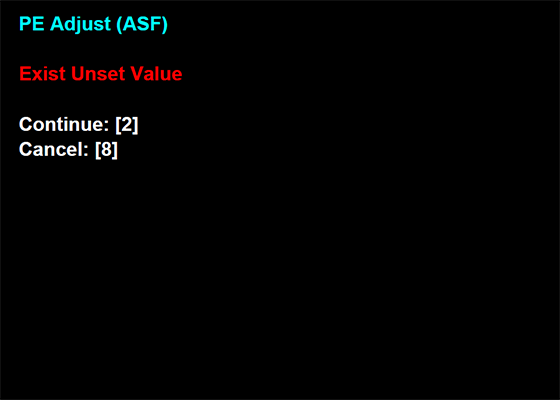

    To end adjustment without entering an adjustment value, press the [#] button in the state without an adjustment value entered in the adjustment input screen to display the following screen.
    If you press the [8] button in the following screen, the adjustment end screen appears and you can end adjustment.(To continue adjustment, press the [2] button.)
