Attaching optional ethernet interface card

Check Point / チェックポイント

Perform this procedure if an optional ethernet interface card need to be attached.

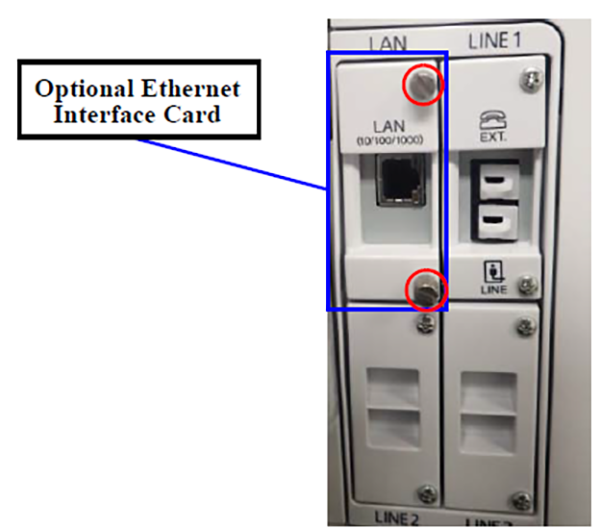

  1. Remove the two screws and the cover.
  2. Insert the optional ethernet interface card into the location where the cover was removed.
  3. Fix it in place with the two fixing screws.
