A-B BAND ADJUST [B65]

Paper and Feed Tray
  • Paper Size: A4
  • Paper Type: Matte Paper-Heavy weight/Premium Presentation Paper Matte
  • Feed Tray: Paper cassette (1) to paper cassette (4) or rear tray

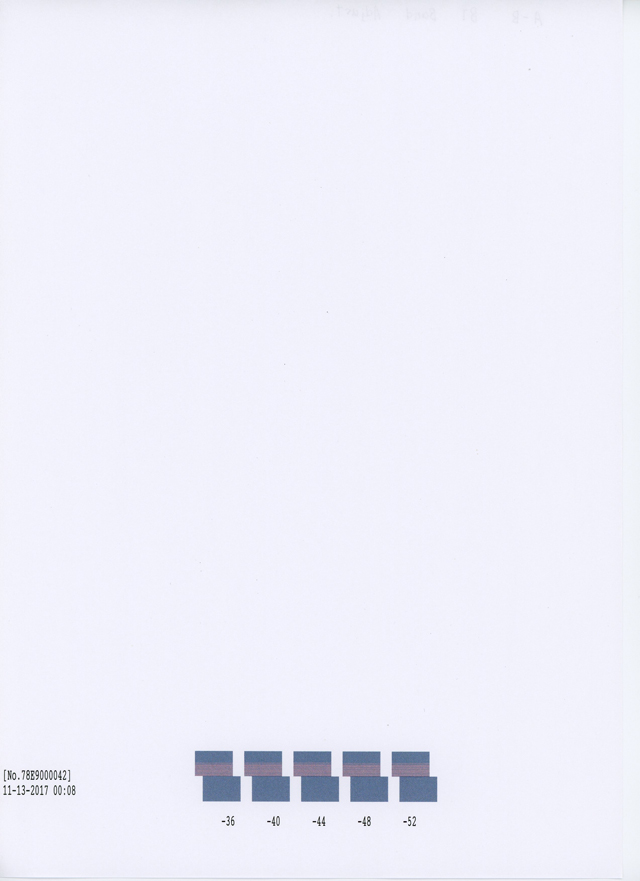

Adjustment pattern

Judgment

Select the value of the pattern with the fewest white lines and with no overlap with upper/lower blocks.

Adjustment procedure
  1. Start service support mode.
  2. Select “Adjustment Main Unit: MENU” from the service support mode top menu.

  3. Select “A-B Band Adjust” from the Printing Adjust menu.

    Check Point / チェックポイント

    Select and execute the corresponding adjustment item using either procedure below.
    • Selecting by entering the program number
    1. Select “Input B No.-Main Unit Adjust” from the Adjustment menu.
    2. Press the [#] button and software number key is displayed on LCD. Enter programnumber “65”.
    3. Press the [#] button.
    • Selecting from menu
    1. Select “Individual Adjustment: MENU” from the Adjustment menu.
    2. Select “Printing Adjust:MENU” from the Individual Adjustment menu.
    3. Select “A-B Band Adjust” from the Printing Adjust menu.

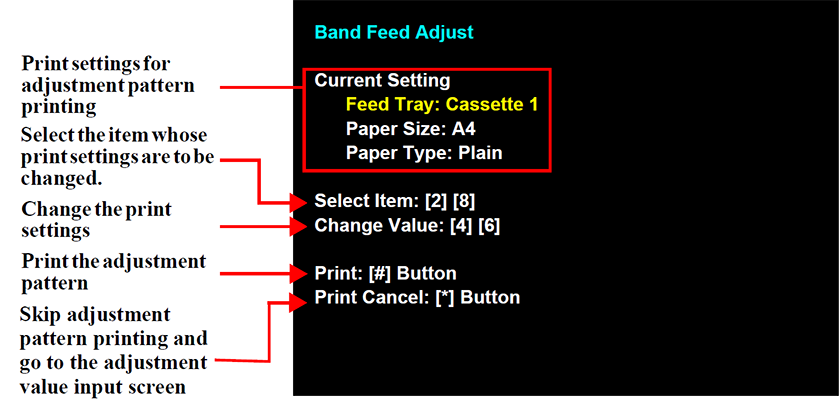

  4. The following screen will be displayed.
  5. Load paper into the paper feed tray.
  6. Press the [#] button to print the adjustment pattern.

  7. Check the adjustment pattern.

  8. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

  9. Input a adjustment value.

    Check Point / チェックポイント
    • Operation method is belows.

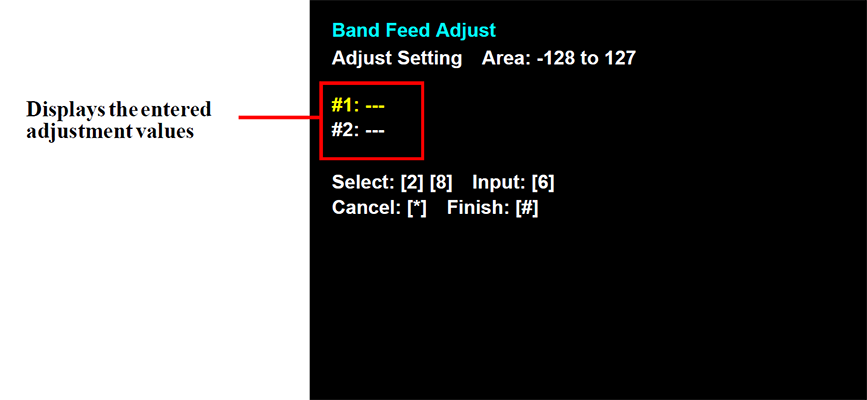

      • [6] Button:  Displays the adjustment value input screen
      • [2] button, [8] button: Select the number
      • [#] Button: Finishes adjustment and inputs the adjustment values.

    • In the adjustment value input menu, the software number key is displayed

  10. Check that an adjustment value is entered for all of the adjustment input items and then press the [#] button to end adjustment.

  11. The adjustment end screen appears. Press the [#] button to return to the menu screen.

    Check Point / チェックポイント

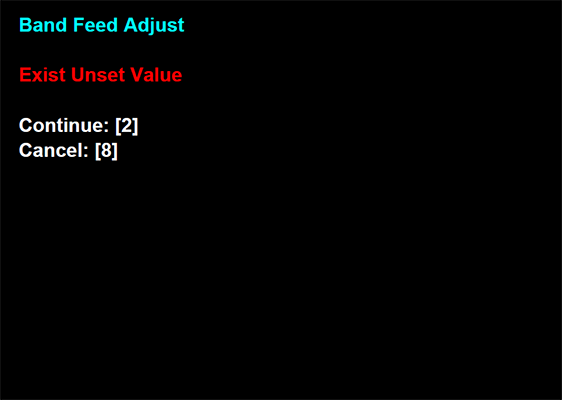

    To end adjustment without entering an adjustment value, press the [#] button in the state without an adjustment value entered in the adjustment input screen to display the following screen.
    If you press the [8] button in the following screen, the adjustment end screen appears and you can end adjustment.(To continue adjustment, press the [2] button.)
