# Rear ASF Clutch Gear

1. Remove the two screws, then remove the Rear ASF Unit (A).


   • : C.SHOULDER S-TITE,3X5
2. Remove the four screws, and remove the Rear ASF Front Cover Assy (A).

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
3. Remove the four screws, and remove the Rear ASF LD Assy (A).

   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C

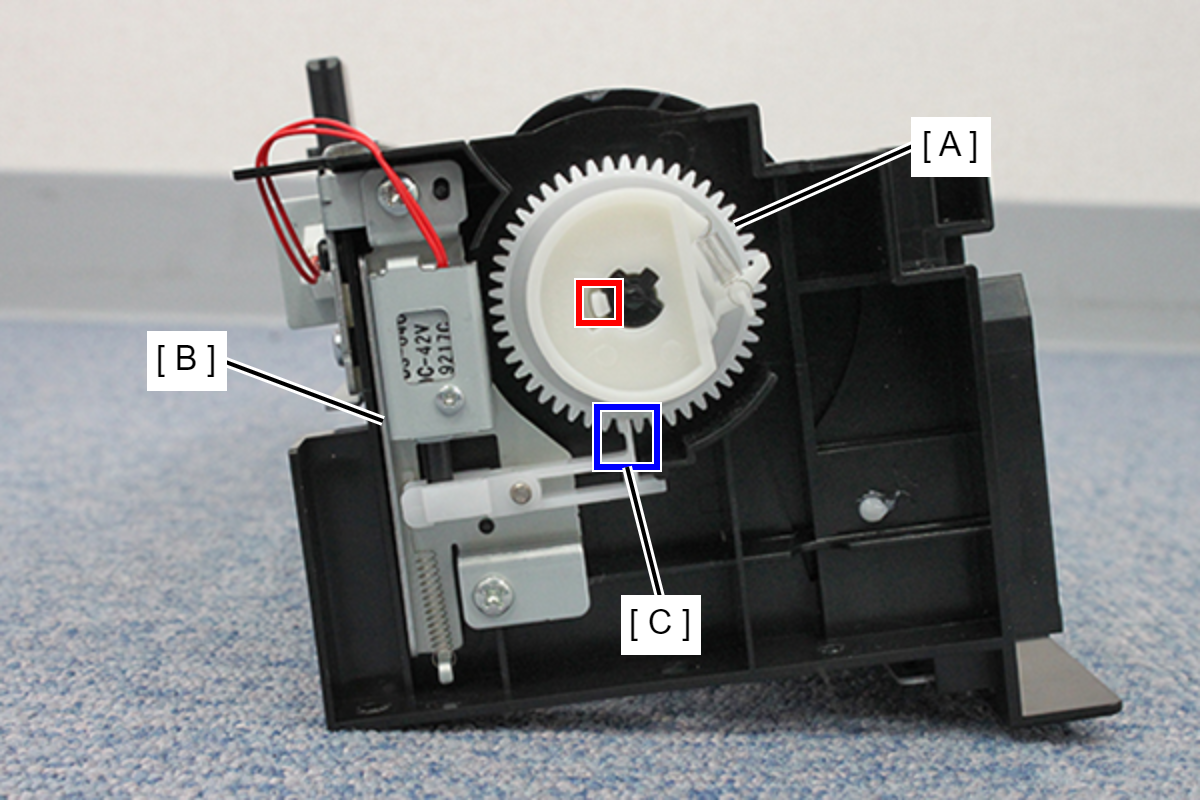

4. Release the hook on the Rear ASF Clutch Gear (A) and remove the Rear ASF Clutch Gear while releasing it from the tab (C) on the Rear ASF Solenoid (B).
