# Rear Band

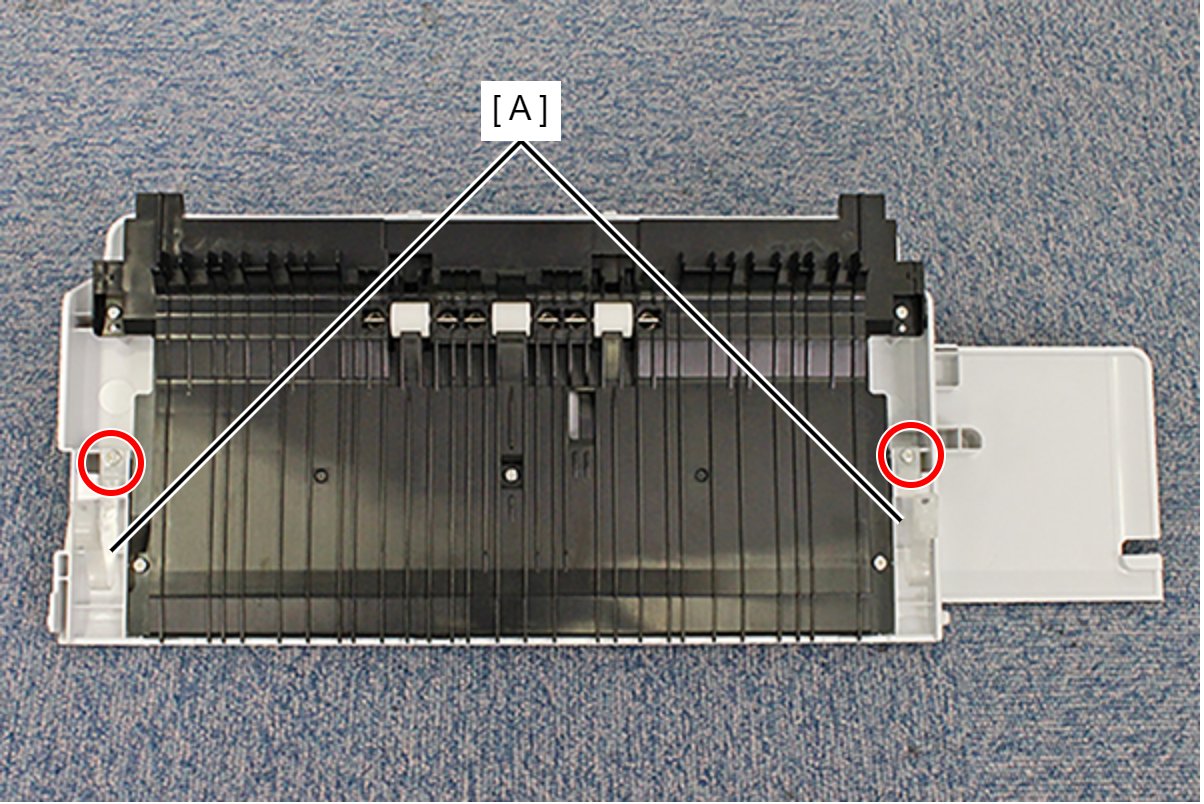

1. Remove the two screws and release each hook of the Rear Band (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
2. Remove the Dowel on the left side while pushing the Duplex Print Cover Assy (A) to the right side, and remove the Duplex Print Cover Assy (A) by removing the Dowel on the right side.




3. Remove each screw, and remove the two Rear Bands (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
