Document Mat Cover Assy

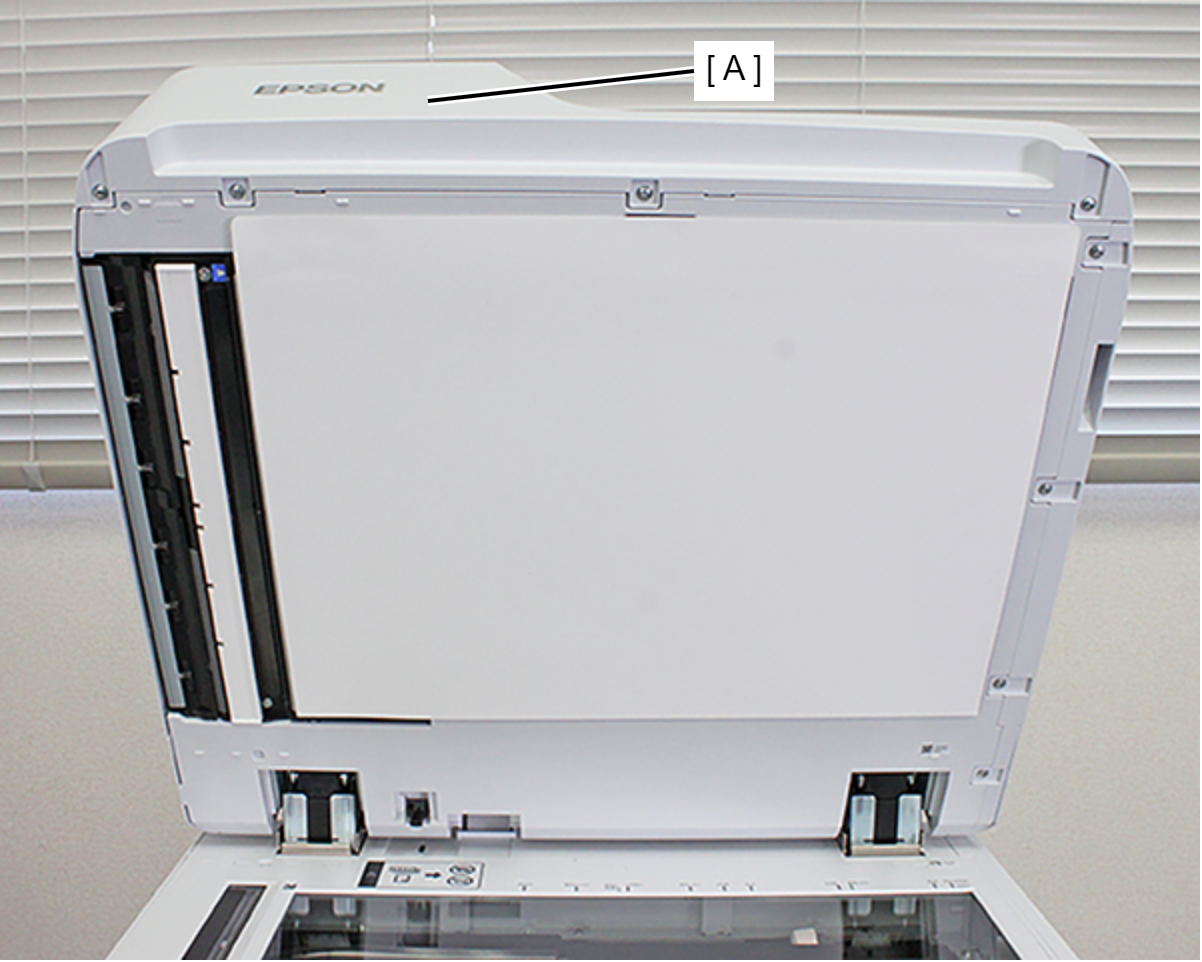

- Open the ADF Unit (A).

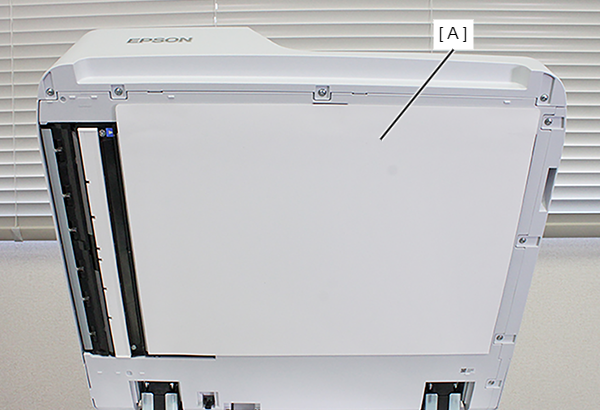

- Remove the Document Mat Cover Assy (A).

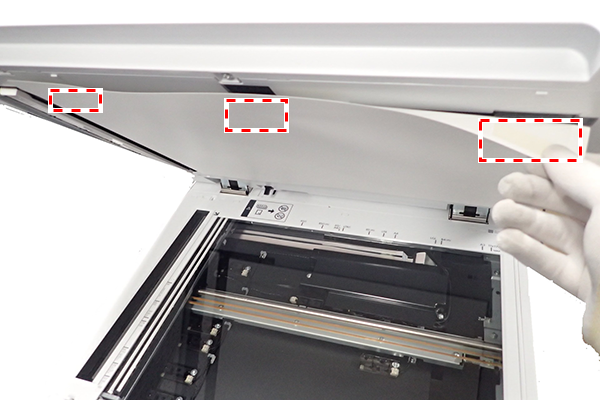

Check Point / チェックポイントTo prevent the damage of Document Mat, hold the parts of PET and remove.
