Ink Pack Cover Lock Lever Assy
- Open the Paper Jam Clear Cover (A).
- Remove the screw on the rear side of the product, then remove the Paper Jam Clear Cover Holder (A).
: C.B.S-TITE-SCREW-3x8-F.ZN-3C
- Disconnect the cable (B) from the connector of the Rear RIPS Cover Sensor (A).
- Remove the four screws that secure the Rear RIPS Housing Assy (A).
: C.SHOULDER S-TITE,3X5
: C.B.P-TITE-SCREW-3x10-F.ZN-3C
- Remove the Rear RIPS Housing Assy (A) pulling out the cable (C) through the hole (B) of the assy.
Assembly / 組み立てBefore reinstalling the Rear RIPS Housing Assy (A), remove the Paper Jam Clear Cover Sensor (B). After connecting the cable, install the sensor to the Rear RIPS Housing Assy.
- Remove the two screws on each side.
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C
- Release the two hooks on each side and remove the two Ink Pack Cover Belts (A).
- Release each hook and remove the two Hinge Covers (A).
- Remove the Ink Pack Cover (B from the three hinges (A).
- Remove the three screws, then remove the Left Housing Assy (A) toward the rear of the product.
- : C.B.S-TITE-SCREW-3x8-F.ZN-3C
- Move the Lock Lever (A) in the direction of the arrow to set the Ink Pack Cover lock in the released state.
- Remove the two screws fastening the Left RIPS Housing Assy (A).
- : C.SHOULDER S-TITE,3X5
- Remove the two screws fastening the Left RIPS Housing Assy (A).
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C
- Lift the Left RIPS Housing Assy (B) and rotate in the direction of the arrow while releasing the two hooks to release the interfering unit (A) behind the Left RIPS Housing Assy (B).
- Remove the three ribs and remove the Left RIPS Housing Assy (A).
Assembly / 組み立てWhen mounting the Left RIPS Housing Assy (A), mount by aligning the Lock Lever Shaft (B) and the receiving part (C).

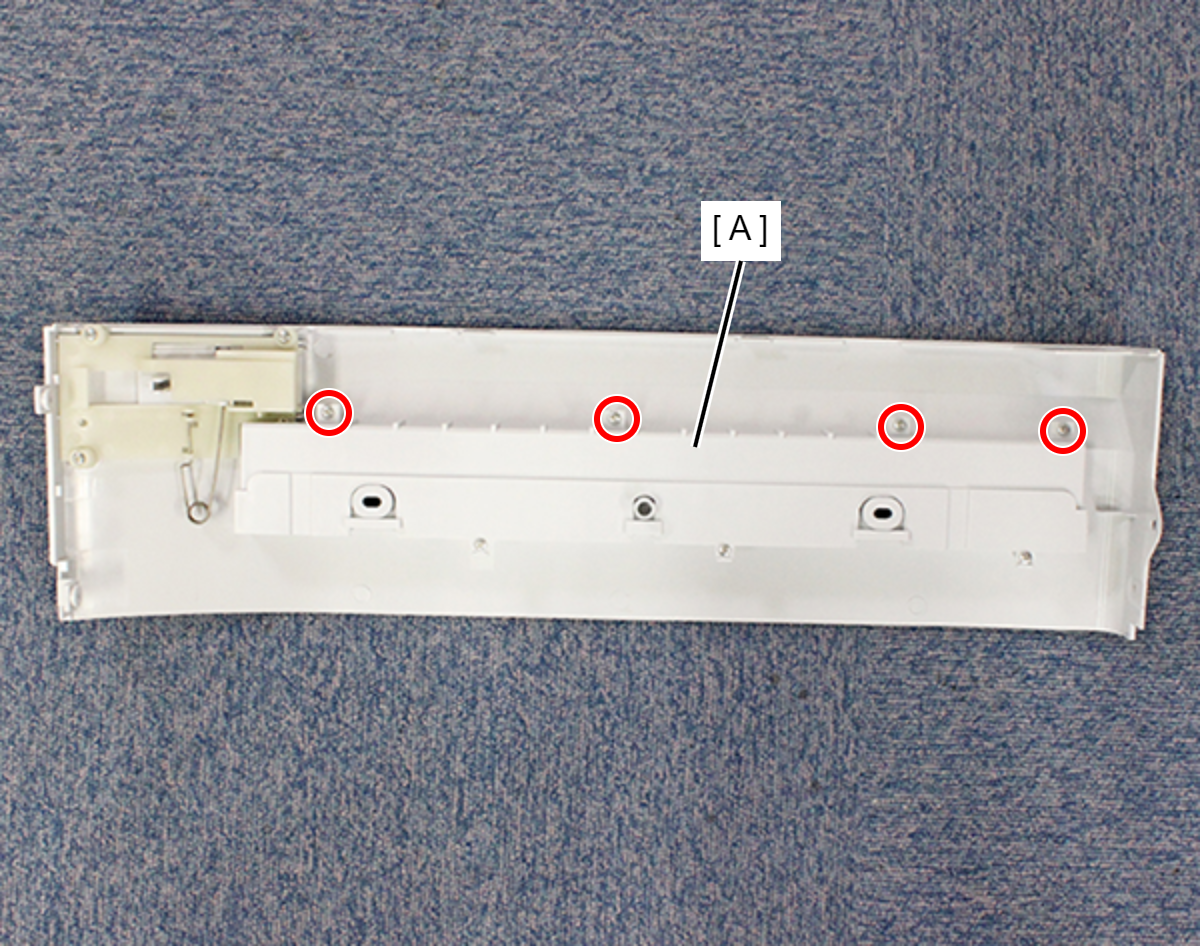

- Remove the four screws and remove the Left RIPS Inner Housing (A).
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C

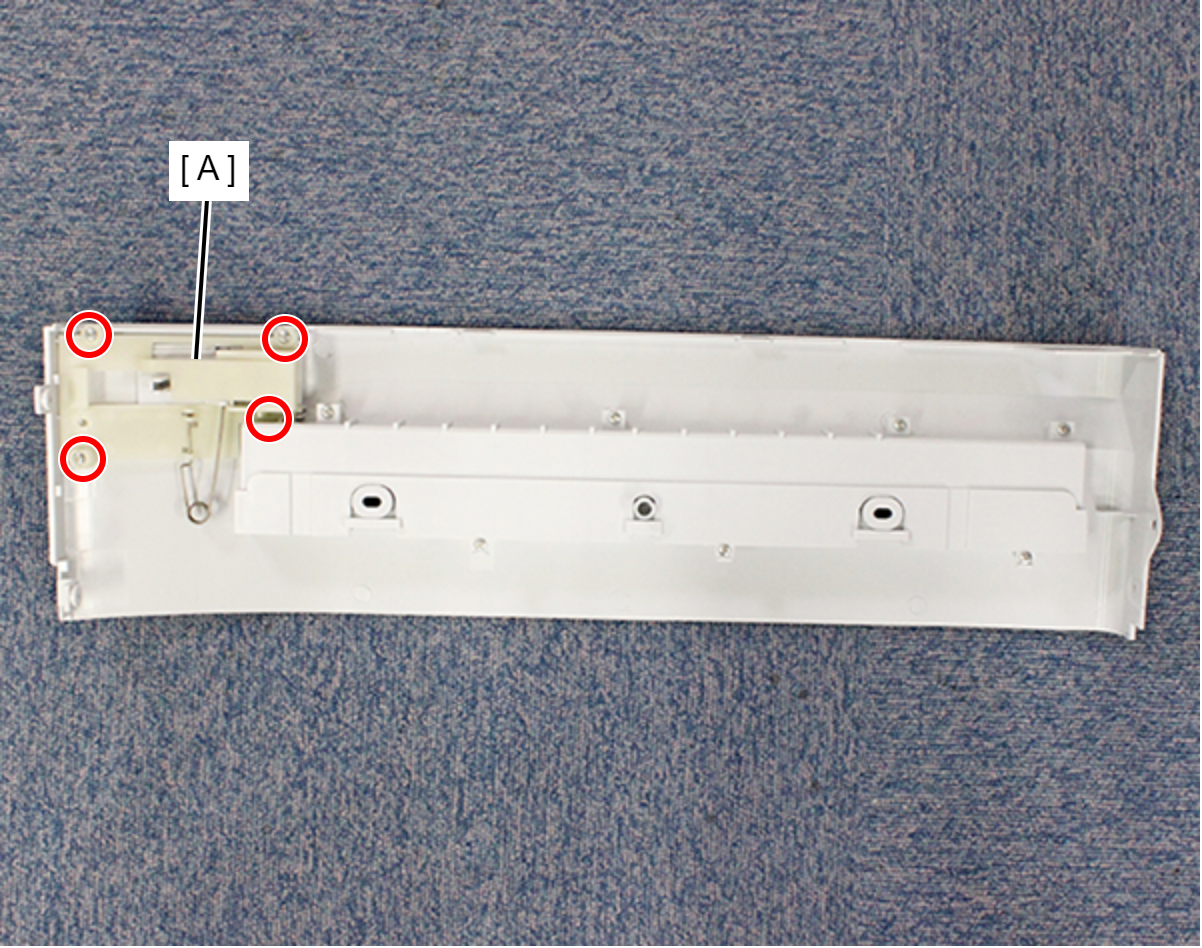

- Remove the four screws and remove the Ink Pack Cover Lock Lever Assy (A).
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C
